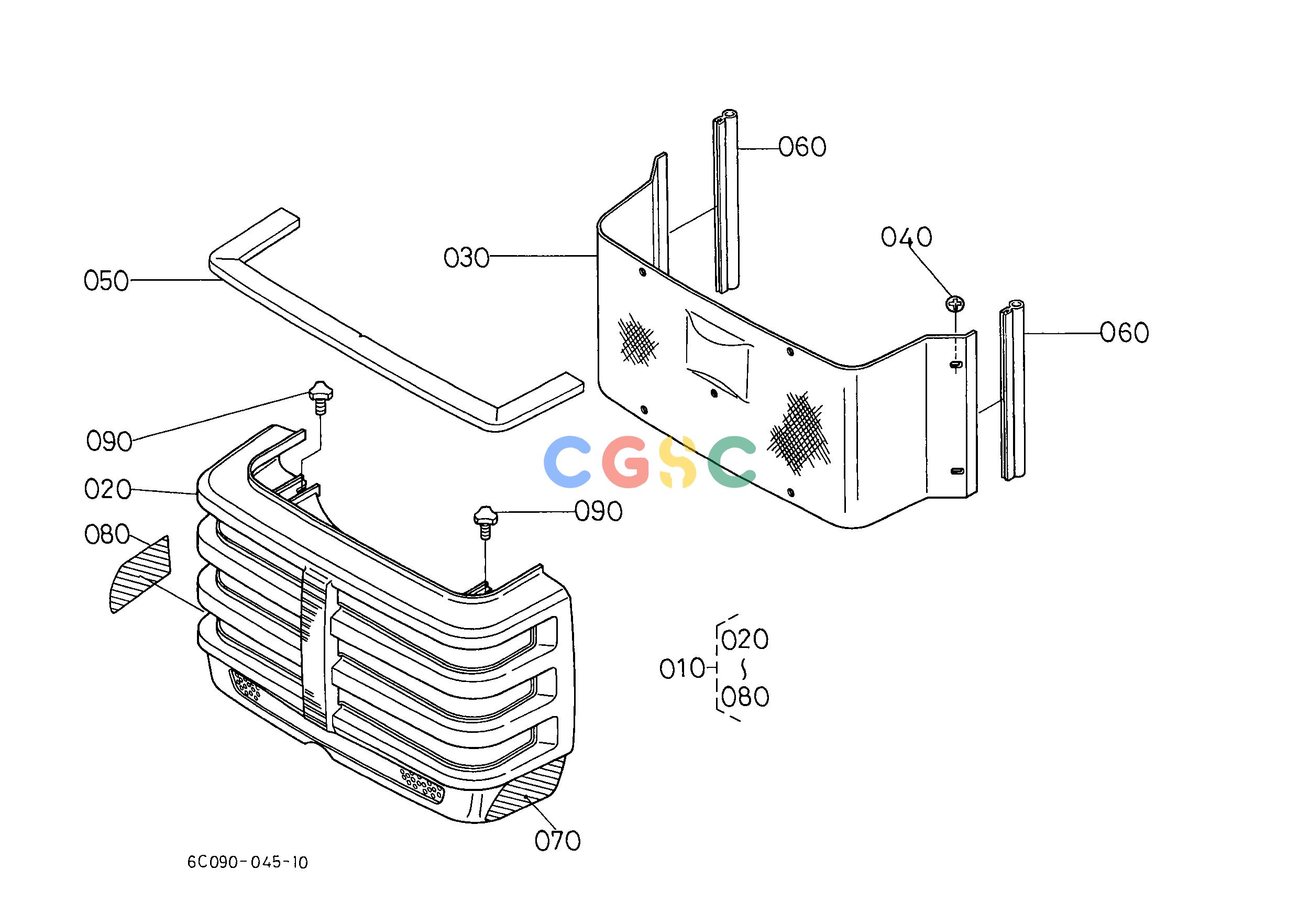

久保田零件查询T09900 FRONT GRILLE HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
692 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09054400
|
[1] |
COMP.COVER FRONT
|
3.9600(lbs); 1.800
|
| 020. |
6C09054410
|
[1] |
COVER FRONT
|
1.3200(lbs); 0.600
|
| 030. |
6C09054430
|
[1] |
NET
|
0.5060(lbs); 0.230
|
| 040. |
6C04054540
|
[9] |
NUT
|
0.0022(lbs); 0.001
|
| 050. |
6C09054140
|
[1] |
SPONGE
|
0.0440(lbs); 0.020
|
| 060. |
6C09051510
|
[2] |
SEAL RUBBER
|
0.0660(lbs); 0.030
|
| 070. |
6C09047350
|
[1] |
MARK
|
0.0044(lbs); 0.002
|
| 080. |
6C09047360
|
[1] |
MARK
|
0.0044(lbs); 0.002
|
| 090. |
3741052610
|
[2] |
SCREW KNOB
|
0.0330(lbs); 0.015
|
