神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (11-032) - MOTOR ASSY (PROPELLING) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
620 次

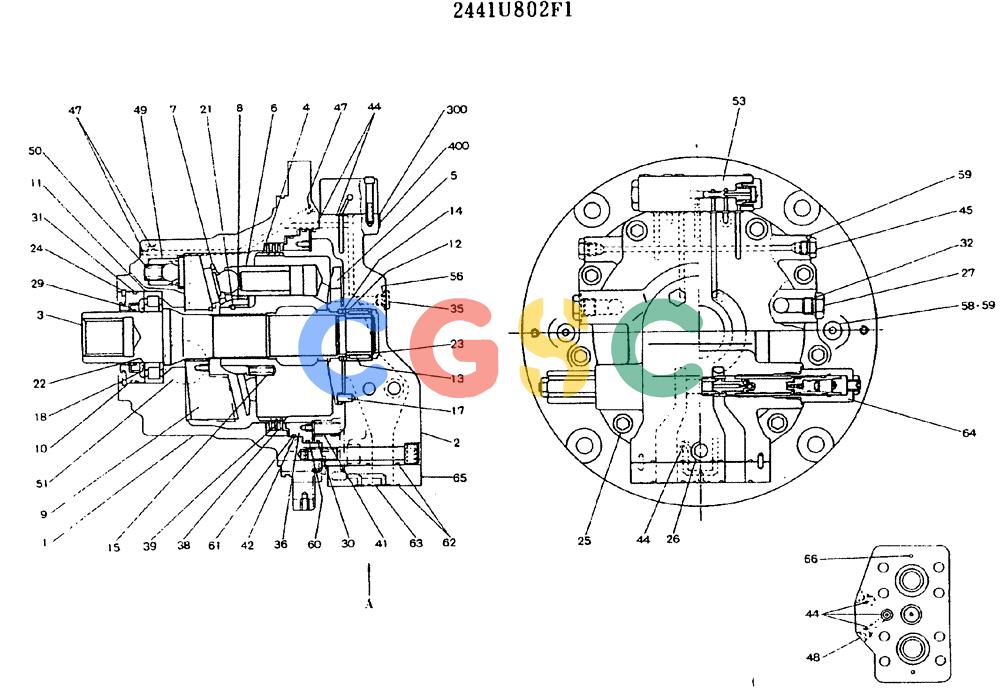

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U802F1 | [1] | MOTOR-PUMP | KOBMOTOR ASSY (PROPELLING), CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2441U781F3 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 2. | 2441U802S2 | [1] | COVER, RE. | COVER, RE. |
| 3. | 2441U802S3 | [1] | SHAFT | KOB |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONBLOCK, CYLINDER |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE, VALVE |
| 6. | NSS | [9] | NOT SOLD SEPARAT | CONPISTON ASSY |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE, RETAINER |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER, RETAINER |
| 9. | 2441U802S9 | [1] | PLATE | KOB |
| 10. | 2441U802S10 | [1] | CASE | KOBOIL SEAL |
| 11. | 2441U802S11 | [1] | ROLLER BEARING | KOB |
| 12. | 2441U802S12 | [1] | NEEDLE BEARING | KOB |
| 13. | 2441U802S13 | [1] | RACE | KOB |
| 14. | 2441U802S14 | [1] | COLLAR CLAMP | KOB |
| 15. | 2441U802S15 | [9] | SPRING | KOB |
| 17. | 2441U802S17 | [1] | PIN | KOB |
| 18. | 2441U802S18 | [1] | WASHER | KOB |
| 21. | 2441U563S121 | [1] | BALL | KOB |
| 22. | 2441U802S22 | [1] | SNAP RING | KOB |
| 23. | 2441U802S23 | [1] | SNAP RING | KOB |
| 24. | 2441U802S24 | [1] | SNAP RING | KOB |
| 25. | ZS23C16050 | [8] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW M16x2.0x50mm |
| 26. | ZS23C16120 | [1] | CAPSCREW M16x2.0x120mm | CAPSCREW M16x2.0x120mm |
| 27. | 2441U802S27 | [2] | PLUG | KOB |
| 29. | 2441U802S29 | [1] | OIL SEAL | KOB |
| 30. | 2441U802S30 | [2] | O-RING | KOB |
| 31. | ZD12G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOBID 14.80 ± 0.20 x OD 19mm |
| 32. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 35. | 2441U792S35 | [2] | PLUG | KOB |
| 36. | 2441U802S36 | [1] | PISTON | KOB |
| 38. | 2441U802S38 | [4] | CLUTCH PLATE | KOB |
| 39. | 2441U802S39 | [3] | CLUTCH PLATE | KOB |
| 41. | 2441U563S141 | [10] | SPRING | KOB |
| 42. | 2441U802S42 | [1] | O-RING | KOB Superseded by part number: 45Z91D95 |
| 44. | ZD12P01000 | [13] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 45. | 2441U802S45 | [2] | PLUG | KOB |
| 47. | 2441U802S47 | [6] | PLUG | KOB |
| 48. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 49. | NSS | [4] | NOT SOLD SEPARAT | CONPISTON ASSY |
| 50. | 2441U802S50 | [4] | SPRING | KOB |
| 51. | 2441U802S51 | [2] | BALL | KOB |
| 53. | 2436R852F1 | [1] | VALVE | KOBSEE FIGURE 11-011 |
| 56. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 58. | 2441U802S58 | [2] | PLUG | KOB |
| 59. | ZD12P01400 | [4] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 60. | 2441U802S60 | [1] | BACK-UP RING | KOB |
| 61. | 2441U802S61 | [1] | BACK-UP RING | KOB |
| 62. | ZD12P03400 | [4] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 63. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 64. | 2436R851F1 | [2] | VALVE | KOBSEE FIGURE 11-009 |
| 65. | 2441U802S65 | [1] | PLATE | KOB |
| 66. | ZP26D05016 | [2] | PIN | KOBSpring |
| 300. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| 400. | NSS | [2] | NOT SOLD SEPARAT | CONSCREW, DRIVE |
| . . | 2441U802R100 | [1] | SEAL KIT | KOBCONSISTS OF ITEM 29~32, 44, 49, 56, 59~63 Superseded by part number: 2441U802R500 |
| . . | 2441U802R200 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 1 & 49 |
| . . | 2441U802R300 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF ITEM 4~6 Superseded by part number: 2441U802R600 |
| . . | 2441U802R400 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 7 & 8 |
