神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (08-007) - BUZZER ASSY, BACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
861 次

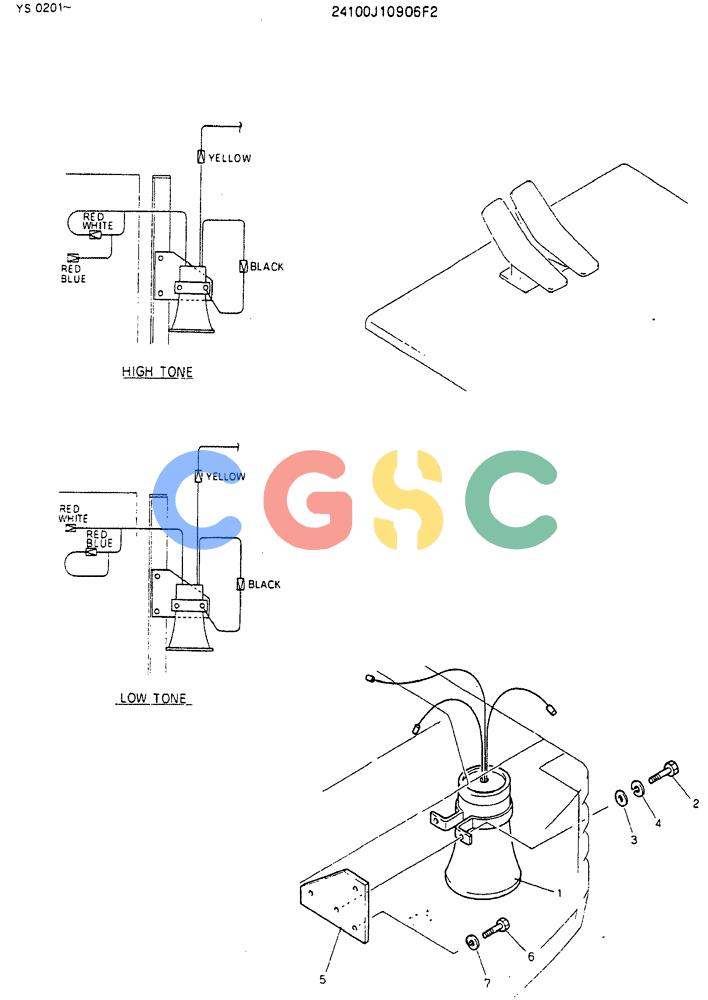

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10906F2 | [1] | BUZZER | KOB |
| 1. | 2447R102 | [1] | BUZZER | KOB |
| 2. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 3. | ZW16X05000 | [2] | WASHER | KOB |
| 4. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 5. | 2418T19372 | [1] | PLATE | KOB |
| 6. | ZS18C08030 | [2] | SCREW,Hex, M8 x 30mm | KOBM08x1.25x30mm |
| 7. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
