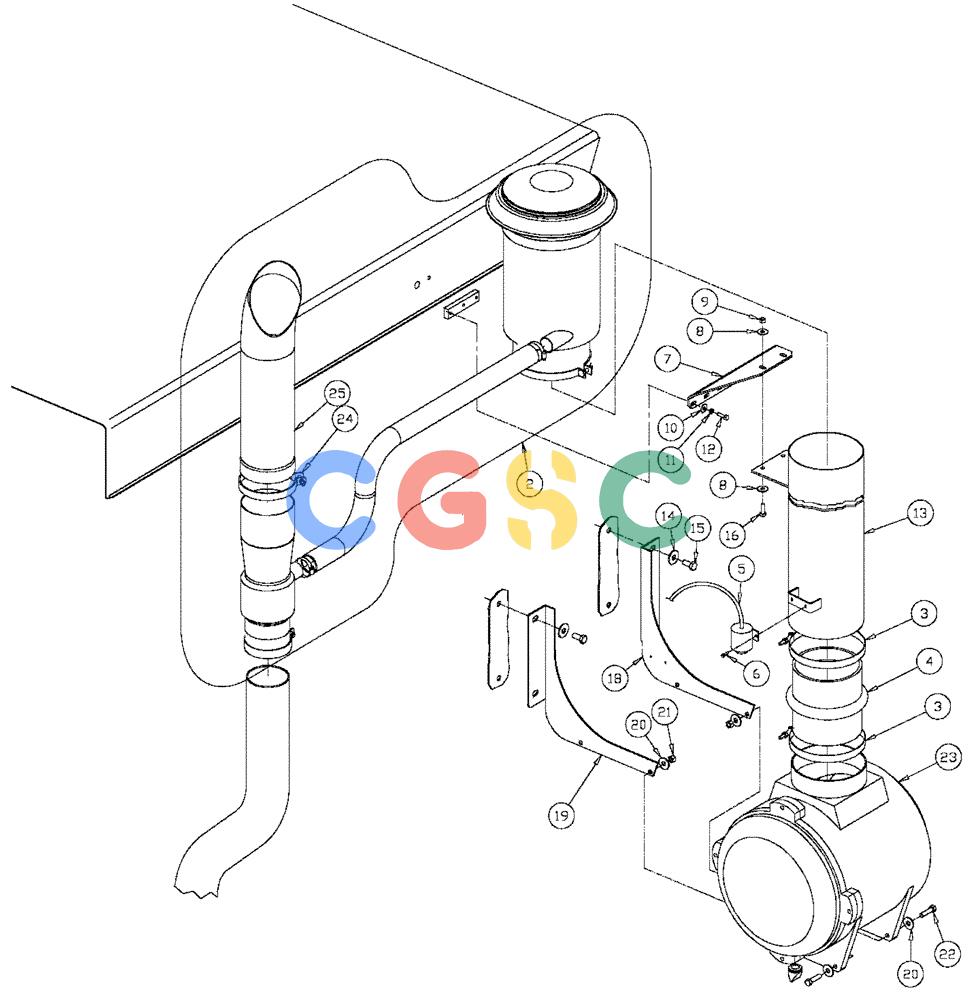

凯斯零件查询(4300) - TITAN FLOATER (6/98-8/99) (02-010) - PRECLEANER GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
377 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
BN2401622
|
[1] |
AIR PRE-CLEANER ASSY
|
BN
RW 7 X 4
|
| 2A. |
BN2293385
|
[2] |
HOSE CLAMP
|
BN
H24 SS
|
| 2B. |
BN2401623
|
[1] |
ASPIRATOR
|
BN
5 W/4 Adaptor
|
| 2C. |
BN2401624
|
[1] |
AIR PRE-CLEANER ASSY
|
BN
RWX7
|
| 2D. |
BN2401626
|
[1] |
PROTECTION CAP
|
BN
Rain, Precleaner
|
| 2E. |
BN323704
|
[1] |
HOSE
|
BN
1 1/2" Hi Temp Asperator
|
| 3. |
BN2396358
|
[2] |
CLAMP
|
BN
T-Bolt Band 7"
|
| 4. |
BN2390854
|
[1] |
HOSE
|
BN
Hump 7 To 7
|
| 5. |
BN2290932
|
[1] |
FILTER
|
BN
Minder Kit
|
| 6. |
BN2404968
|
[2] |
SELF-TAP SCREW,#8 x 5/8"
|
BN
HH #8 X 5/8 Self Tap
|
| 7. |
BN7146493
|
[1] |
Riser
|
|
| 8. |
BN50141
|
[4] |
WASHER
|
BN
5/16, FW, G5 Superseded by part number: 80664
|
| 9. |
BN1470403C
|
[2] |
FLANGE NUT
|
BN
5/16-18, FLN, G8 Superseded by part number: 231-4145
|
| 10. |
87529236
|
[3] |
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
|
BN
0.281 X 0.625 X 0.065 HTS DOR HDN
|
| 11. |
BN50139
|
[3] |
WASHER
|
CUR
1/4" spring lock Superseded by part number: 80682
|
| 12. |
BN50486
|
[3] |
BOLT
|
BN
1/4-20 X .625, HH, G5 Superseded by part number: 413-410
|
| 13. |
BN7146492
|
[1] |
INTAKE ASSY
|
BN
Air Riser
|
| 14. |
BN2392399
|
[4] |
WASHER
|
BN
Flat 7/16 SS
|
| 15. |
BN2403269
|
[4] |
BOLT
|
BN
HH 7/16-14 X 1 SS
|
| 16. |
1913318C
|
[2] |
|
BOLT Hex, 5/16"-18 x 1", G5, Full Thd
|
| 18. |
BN304553
|
[1] |
BRACKET
|
BN
Aircleaner, FBG
|
| 19. |
BN304552
|
[1] |
BRACKET
|
BN
Aircleaner, FBG
|
| 20. |
BN2392391
|
[8] |
WASHER
|
BN
Flat 3/8 SS
|
| 21. |
BN2294495
|
[4] |
LOCK NUT
|
BN
3/8-16 SS Flex
|
| 22. |
BN2403263
|
[4] |
HH 3/8-16 X 1-1/2 SS
|
|
| 23. |
BN2296141
|
[1] |
AIR CLEANER
|
BN
Polyethelyne
|
| 23A. |
BN2296141-002
|
[1] |
VALVE
|
BN
Actuator
|
| 23B. |
BN2296141-003
|
[1] |
AIR CLEANER
|
BN
Primary
|
| 23C. |
BN2296141-004
|
[1] |
AIR CLEANER
|
BN
Safety
|
| 23D. |
BN2296141-006
|
[1] |
REPAIR KIT
|
BN
Screw & Fastener
|
| 23E. |
BN2296141-007
|
[1] |
COVER
|
BN
Service
|
| 24. |
BN303459
|
[1] |
PIPE CLAMP
|
BN
Muffler, 5"
|
| 25. |
BN303493
|
[1] |
EXHAUST SYSTEM PIPE
|
BN
5" W/ Turnout
|
