神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (09-004) - BUCKET ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
666 次

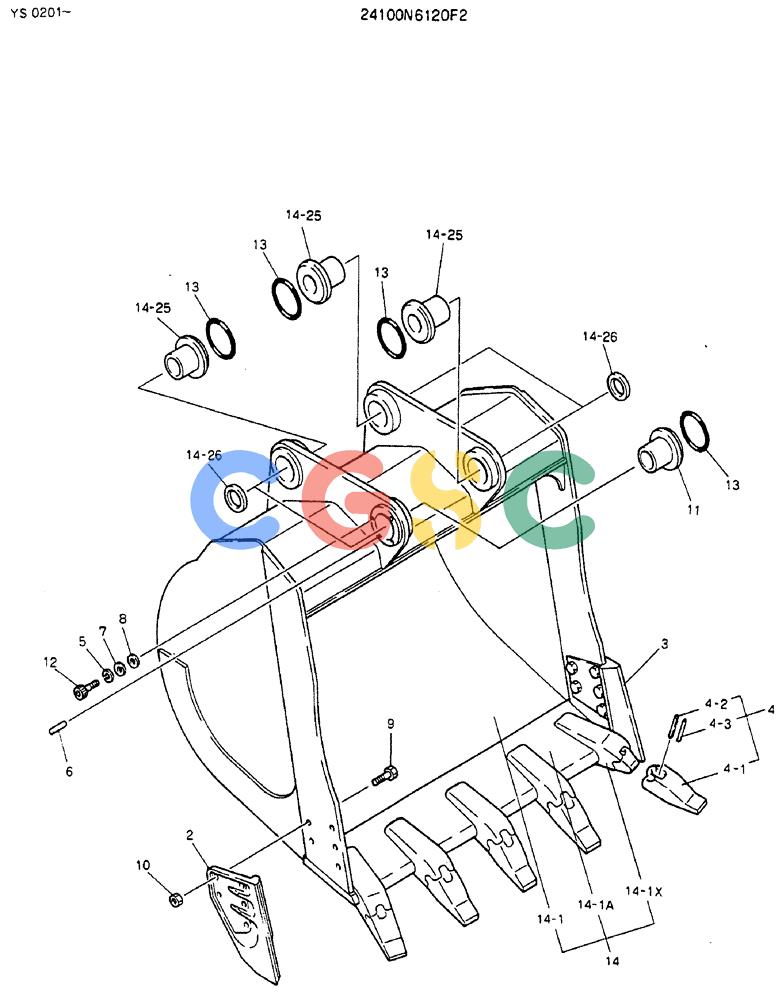

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N6120F2 | [1] | BUCKET ASSY, 2.0M5 | |
| 2. | 2412P239C2D1 | [1] | BLADE | KOB |
| 3. | 2412P239C2D2 | [1] | BLADE | KOB |
| 4. | 2412U173F1 | [5] | BUCKET TOOTH POINT | KOBTOOTH |
| 4-1. | 2412U173S1 | [1] | POINT, TOOTH | POINT, TOOTH |
| 4-2. | 2412U62S2 | [1] | PIN | KOB |
| 4-3. | 2412U62S3 | [1] | LOCK PIN | KOB |
| 5. | ZW26K20000 | [3] | WASHER | KOB |
| 6. | 2419T4628D2 | [1] | PIN | KOB |
| 7. | 2418T14548D2 | [3] | SHIM | KOBID 21 x OD 32 x Th 3.2mm |
| S. | 2418T14548D1 | [30] | SHIM | KOBID 21 x OD 32 x Th 1.0mm |
| 9. | ZS18C24070 | [10] | SCREW,Hex, M24 x 70mm | KOBM24x3.0x70mm |
| 10. | ZN18C24019 | [10] | NUT | KOBM24x3.0mm |
| 11. | 2405T1227 | [1] | BUSHING | KOB |
| 12. | 2420Z1640D3 | [3] | SCREW | KOBM20 x 77mm Long |
| 13. | 2445Z1003 | [4] | O-RING | KOB |
| 14. | 2412J1303F1 | [1] | BUCKET | |
| 14-1. | 2412J1303 | [1] | BUCKET | |
| 14-1A. | 2412P616D4 | [1] | EDGE, CUTTING | EDGE, CUTTING |
| 14-1X. | 2412U63 | [5] | ADAPTER | KOB |
| 14-25. | 2405P275 | [3] | BUSHING | KOB |
| 14-26. | 2445R138D9 | [4] | SEAL,100mm ID x 120mm OD x 4mm Thk | KOBDust -- ID 100 x OD 120 x Th 4mm |
