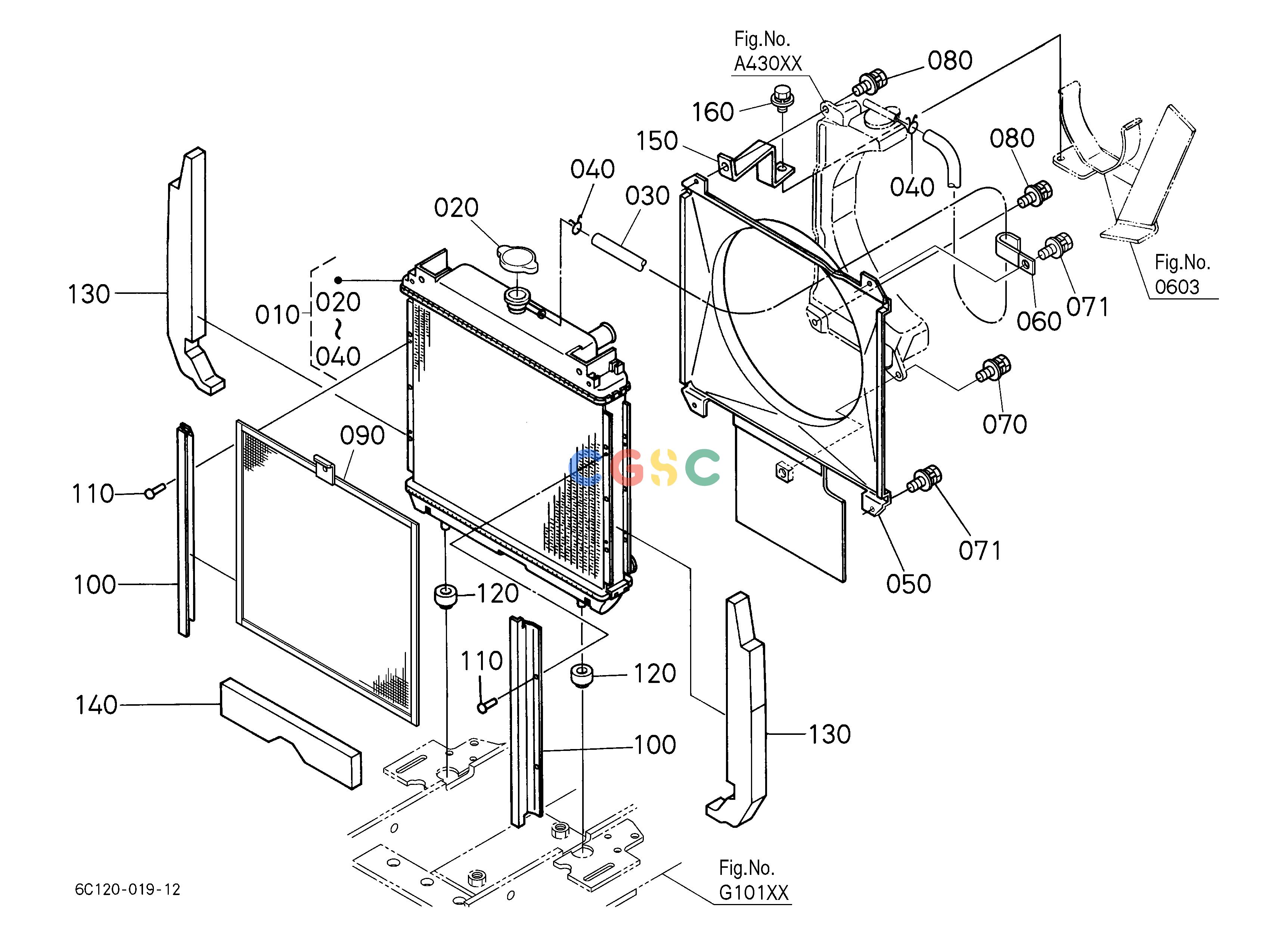

久保田零件查询A42002 RADIATOR [AU][NZ] COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
173 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09058502
|
[1] |
ASSY RADIATOR
|
6.6000(lbs); 3.000
|
| 020. |
6C04058660
|
[1] |
ASSY CAP
|
0.0946(lbs); 0.043
|
| 020. |
1721472020
|
[1] |
ASSY CAP RADIATOR
|
0.1100(lbs); 0.050
|
| 030. |
6C09058670
|
[1] |
HOSE OVER FLOW
|
0.0726(lbs); 0.033
|
| 040. |
6C04058710
|
[2] |
CLIP
|
0.0044(lbs); 0.002
|
| 050. |
6C09058610
|
[1] |
SHROUD FAN
|
1.2100(lbs); 0.550
|
| 050. |
6C09058616
|
[1] |
SHROUD FAN
|
1.2100(lbs); 0.550
|
| 060. |
1527267590
|
[1] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 070. |
0102550616
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 071. |
0102550612
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 080. |
0102550620
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 090. |
6C12058530
|
[1] |
NET RADIATOR
|
0.5280(lbs); 0.240
|
| 100. |
6C09058540
|
[2] |
GUIDE
|
0.2354(lbs); 0.107
|
| 110. |
5410224410
|
[4] |
RIVET
|
0.0022(lbs); 0.001
|
| 120. |
6C04058580
|
[2] |
CUSHION RADIATOR
|
0.0462(lbs); 0.021
|
| 130. |
6C09054453
|
[2] |
TAPE RADIATOR
|
0.0660(lbs); 0.030
|
| 140. |
6C09054470
|
[1] |
TAPE RADIATOR
|
0.0374(lbs); 0.017
|
| 150. |
6C09058590
|
[1] |
STAY RADIATOR
|
0.2860(lbs); 0.130
|
| 160. |
0102550616
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
