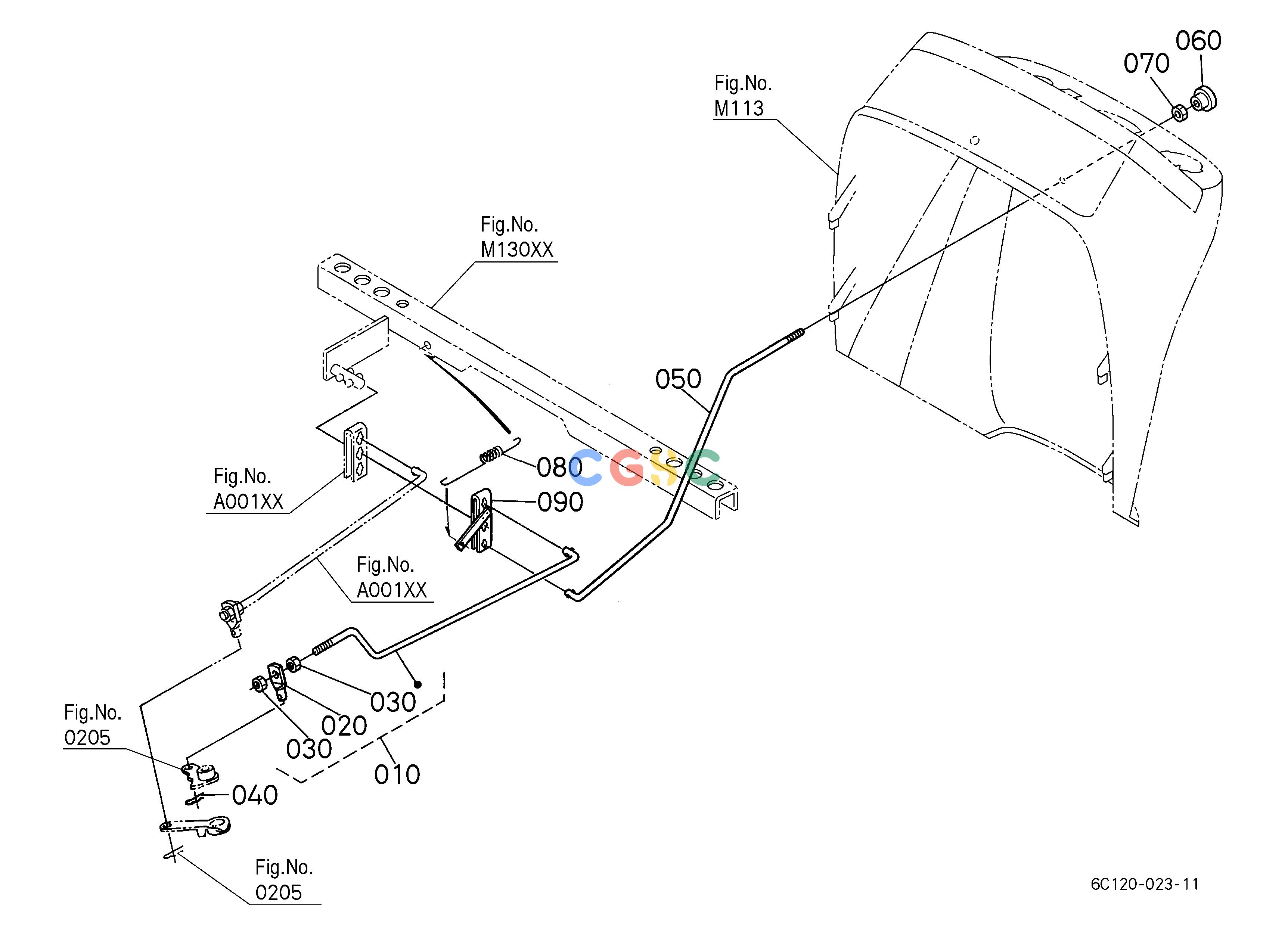

久保田零件查询A51301 STOP ROD ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
533 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09043220
|
[1] |
ASSY ROD ENGINE STOP
|
0.1540(lbs); 0.070
|
| 020. |
6C09043280
|
[1] |
CONNECTOR
|
0.0088(lbs); 0.004
|
| 030. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 040. |
0552550800
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 050. |
6C09043214
|
[1] |
ROD ENGINE STOP
|
1.1000(lbs); 0.500
|
| 060. |
6A31043220
|
[1] |
KNOB
|
0.0220(lbs); 0.010
|
| 070. |
0201450060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 080. |
6C09043310
|
[1] |
SPRING
|
0.0264(lbs); 0.012
|
| 090. |
6C09043260
|
[1] |
LEVER ENGINE STOP
|
0.1386(lbs); 0.063
|
