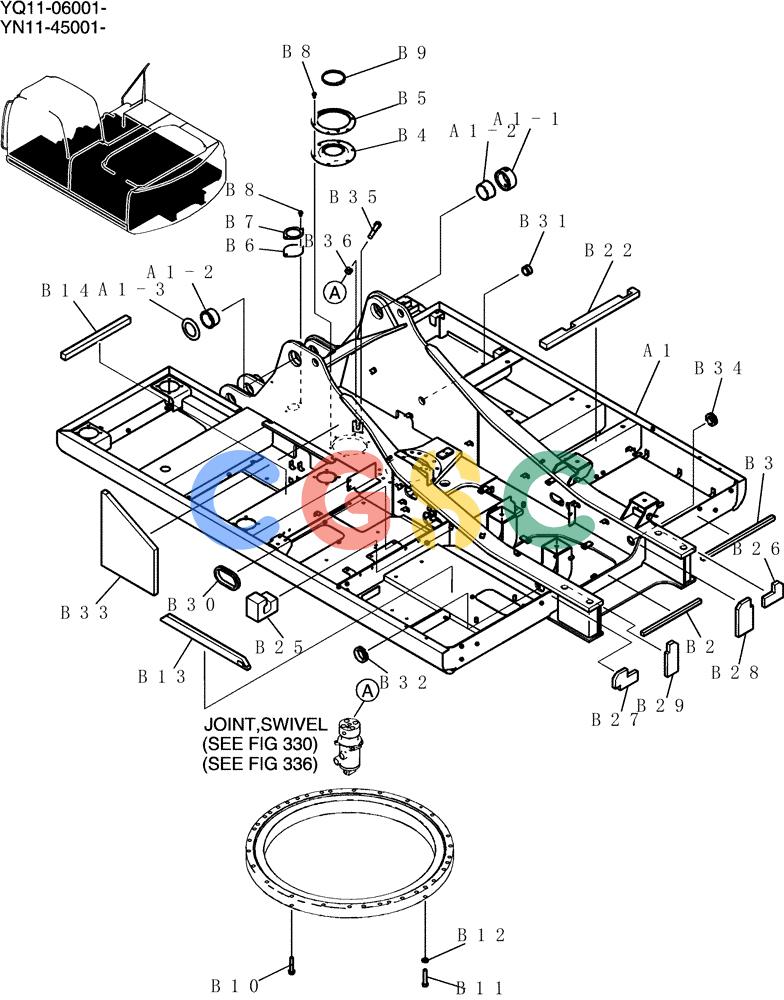

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (010-01-1) - FRAME ASSY, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
203 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN52F00354F1 | [1] | Upper | |
| . . | YN52F00374F1 | [1] | FRAME | KOBAssy, Upper (hd) |
| A1. | YN52F00305P1 | [1] | Frame, Upper | |
| A1-1. | YN52F01894P1 | [1] | BOSS | KOB |
| A1-2. | YN52F01582P1 | [2] | BUSHING | KOB |
| A1-3. | 2414T2784 | [1] | COVER | KOB |
| . . | YN52F00307F1 | [1] | Frame Group, Upper | |
| B2. | YN52F01976P1 | [1] | FOAM INSULATION | KOB |
| B3. | YN52F01736P1 | [1] | FOAM INSULATION | KOB |
| B4. | YN52F01857P1 | [1] | SEAL | KOB |
| B5. | YN52F01615P1 | [1] | PLATE | SM |
| B6. | YN52F01159P1 | [1] | PLATE | KOB |
| B7. | 2416Z434 | [1] | PACKING | KOBRubber |
| B8. | ZM73C10025 | [8] | BOLT,M10x25mm - Course Thread | KOBSems |
| B9. | ZC16X12200 | [1] | CLIP | KOB |
| B10. | YN52F01100D3 | [32] | CAP | KOB |
| B11. | HS53C20105G1 | [1] | CAP | KOB Superseded by part number: 47423235 |
| B12. | ZW13H20000 | [1] | WASHER | KOB |
| B13. | YN52F01966P2 | [1] | FOAM INSULATION | KOB |
| B14. | YN52F01737P1 | [1] | FOAM INSULATION | KOB |
| B22. | YN52F01738P1 | [1] | FOAM INSULATION | KOB |
| B25. | YN52F01965P1 | [1] | FOAM INSULATION | KOB |
| B26. | YN52F01950P1 | [1] | FOAM INSULATION | KOB |
| B27. | YN52F01974P1 | [1] | FOAM INSULATION | KOB |
| B28. | YN52F01952P1 | [1] | FOAM INSULATION | KOB |
| B29. | YN52F01975P1 | [1] | FOAM INSULATION | KOB |
| B30. | YN64H01286D1 | [1] | GROMMET | KOB |
| B31. | PH13E01071P1 | [1] | GROMMET | KOB |
| B32. | YN13E01363P1 | [1] | GROMMET | KOB |
| B33. | YN52F01959P1 | [1] | FOAM INSULATION | KOB |
| B34. | PH02H01108P1 | [1] | GROMMET | KOB |
| B35. | ZS18F24130 | [1] | SCREW | KOBCap |
| B36. | ZN18F24019 | [1] | NUT | KOB |
