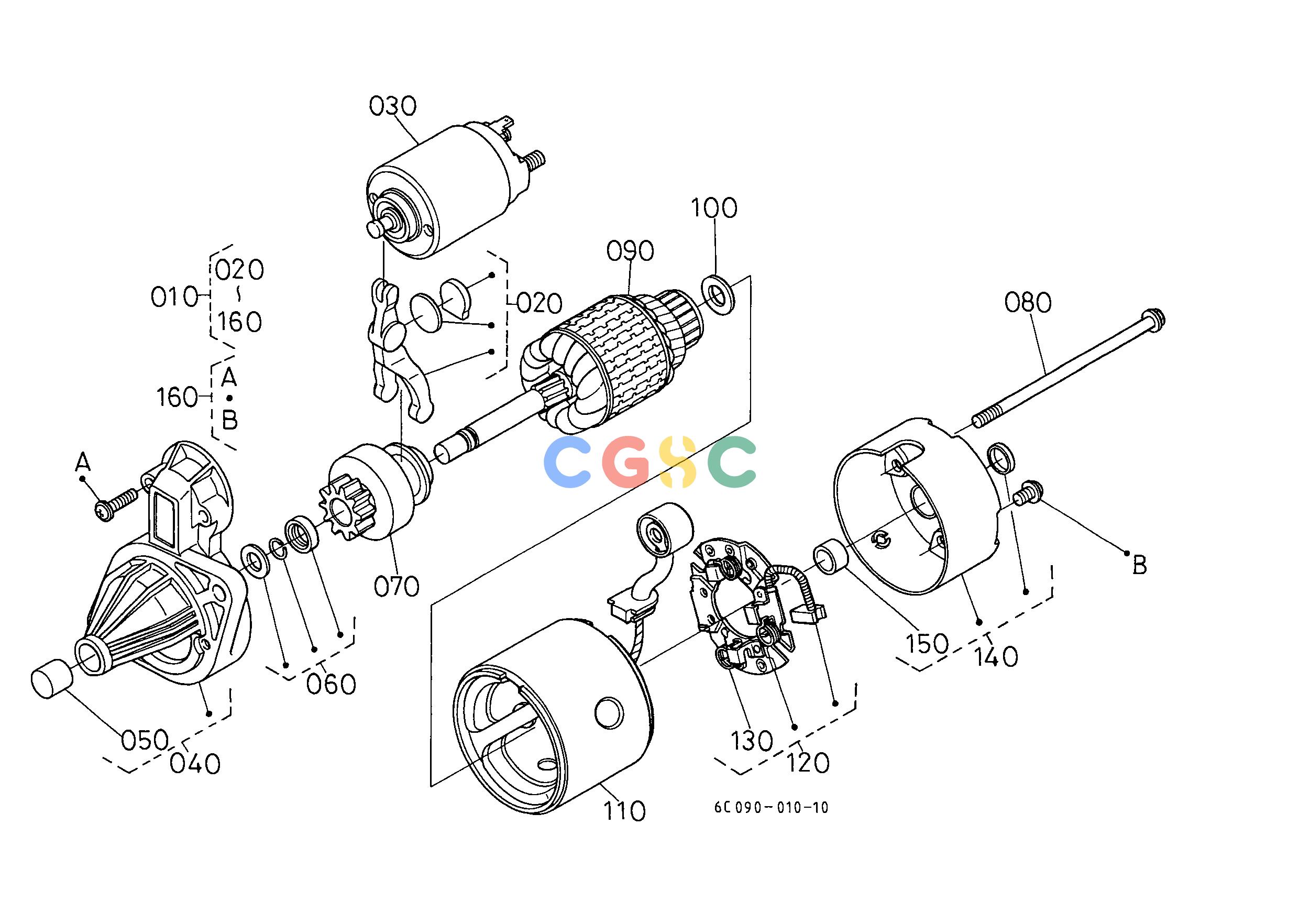

久保田零件查询A53001 STARTER [COMPONENT PARTS] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
209 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09059300
|
[1] |
ASSY STARTER
|
7.9200(lbs); 3.600
|
| 020. |
1585263050
|
[1] |
LEVER DRIVE
|
0.0330(lbs); 0.015
|
| 030. |
6C09059320
|
[1] |
ASSY SWITCH
|
1.4740(lbs); 0.670
|
| 040. |
6C09059330
|
[1] |
ASSY BRACKET FRONT
|
0.5720(lbs); 0.260
|
| 050. |
1585263240
|
[1] |
BUSH
|
0.0132(lbs); 0.006
|
| 060. |
1983763150
|
[1] |
STOPPER
|
0.0154(lbs); 0.007
|
| 070. |
6C09059340
|
[1] |
CLUTCH OVER RUNNING
|
0.4620(lbs); 0.210
|
| 080. |
1585263320
|
[2] |
BOLT
|
0.0352(lbs); 0.016
|
| 090. |
1585263070
|
[1] |
ARMATURE
|
2.1780(lbs); 0.990
|
| 100. |
1585263410
|
[1] |
WASHER ADJUSTING
|
0.0132(lbs); 0.006
|
| 110. |
6C09059350
|
[1] |
ASSY YOKE
|
2.3320(lbs); 1.060
|
| 120. |
1585263380
|
[1] |
HOLDER BRUSH
|
0.1144(lbs); 0.052
|
| 130. |
1585263390
|
[3] |
SPRING BRUSH
|
0.0044(lbs); 0.002
|
| 140. |
1585263200
|
[1] |
FRAME END
|
0.4400(lbs); 0.200
|
| 150. |
1585263250
|
[1] |
BUSH
|
0.0132(lbs); 0.006
|
| 160. |
1585293310
|
[1] |
SCREW PAN-HEAD
|
0.0440(lbs); 0.020
|
