神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (018-01-1) - COUNTERWEIGHT INSTAL (GAIN) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
507 次

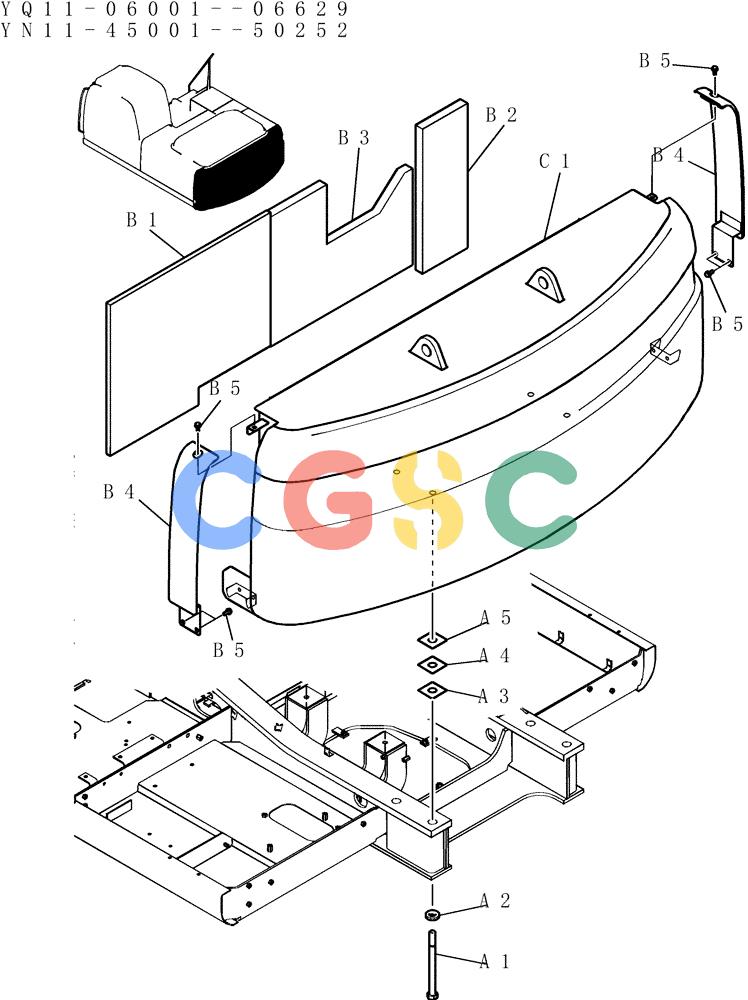

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN60C00192F1 | [1] | Instal | |
| . . | YN60C00148F1 | [1] | Counterweight Instal | |
| A1. | YN60C01300P1 | [4] | CAP,M3 x 8mm | KOBScrew |
| A2. | HY26Y28060G3 | [4] | WASHER | KOB |
| A3. | YN60C01470P1 | [3] | SHIM | KOB(1.6) |
| A4. | YN60C01471P1 | [3] | SHIM | KOB(2.3) |
| A5. | YN60C01472P1 | [4] | SHIM | KOB(3.2) |
| . . | YN60C00200F1 | [1] | | |
| B1. | LQ60C01207P2 | [1] | FOAM INSULATION | KOB |
| B2. | YN60C01527P1 | [1] | FOAM INSULATION | KOBInsulation |
| B3. | YN60C01430P1 | [1] | FOAM INSULATION | KOB |
| B4. | LC21C01730P1 | [2] | PANEL | KOB |
| B5. | ZM73C12030 | [6] | BOLT,M12x30mm - Course Thread | KOBSems |
| C1. | YN60C00193P1 | [1] | COUNTERWEIGHT | KOB |
