神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (030-01-1) - RADIATOR INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
911 次

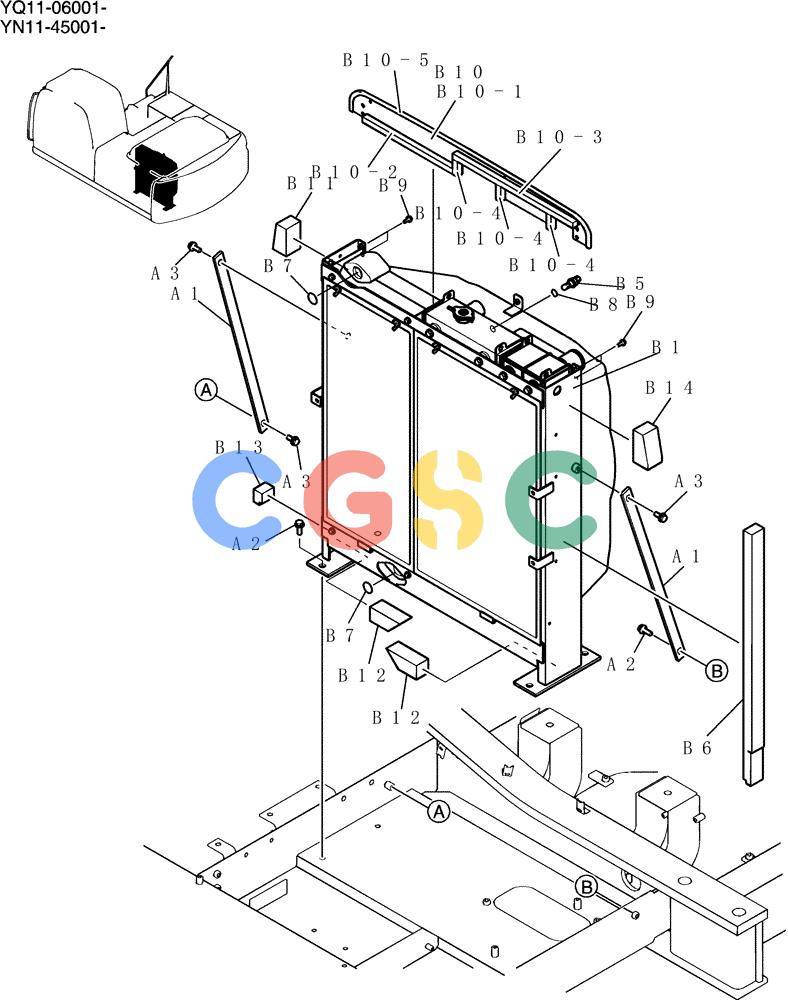

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN05P00059F1 | [1] | Instal | |
| . . | YN05P00046F1 | [1] | Instal | |
| A1. | YN05P01292P1 | [2] | STAY | KOBStay |
| A2. | ZM73C12035 | [5] | BOLT,M12x35mm - Course Thread | KOBSems |
| A3. | ZM73C12030 | [3] | BOLT,M12x30mm - Course Thread | KOBSems |
| . . | YN05P00050F1 | [1] | RADIATOR | KOBAssy |
| B1. | YN05P00058F1 | [1] | RADIATOR | KOBAssy (See Fig No.034-01-1), Serial Range: YQ11-06001-YQ11-06271 Superseded by part number: YN05P00058F5 |
| B6. | YN05P01322P2 | [1] | FOAM INSULATION | KOB |
| . . | YN05P00058F2 | [1] | RADIATOR | KOBAssy (See Fig No.034-01-1), Start Serial: YQ11-06272 Superseded by part number: YN05P00058F5 |
| B7. | YN05P01355P1 | [2] | O-RING,44.7mm ID x 51.7mm OD x 3.5mm | KOB |
| B9. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOBSems |
| B10. | YN05P01460F1 | [1] | PLATE | KOBAssy |
| B10-1. | YN05P01493P1 | [1] | PLATE | KOB |
| B10-2. | YN05P01461P1 | [1] | FOAM INSULATION | KOB |
| B10-3. | YN05P01462P1 | [1] | FOAM INSULATION | KOB |
| B10-4. | YN05P01463P1 | [3] | FOAM INSULATION | KOB |
| B10-5. | LS22C01024D5 | [1] | SPACER | KOBTrim |
| B11. | YN05P01464P1 | [1] | FOAM INSULATION | KOB |
| B12. | YN05P01465P1 | [2] | FOAM INSULATION | KOB |
| B13. | YN05P01520P1 | [1] | FOAM INSULATION | KOB |
| B14. | YN05P01521P1 | [1] | FOAM INSULATION | KOB |
| B8. | VH985119116A | [1] | O-RING | KOB Superseded by part number: VHSZ30119013 |
