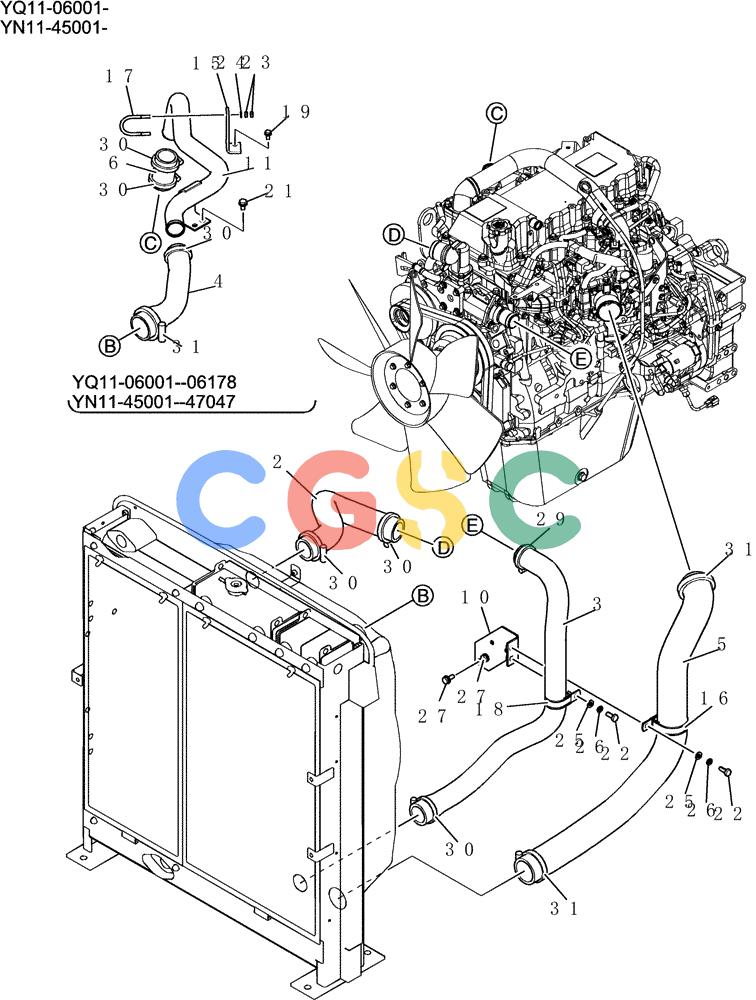

| . . | YN05P00045F1 | [1] | Group | |
| 1. | YN05P01496F1 | [1] | TANK | KOBAssy, Water, Sub |
| 2. | YN05P01479P1 | [1] | HOSE | KOBRadiator |
| 3. | YN05P01494P1 | [1] | RADIATOR HOSE | KOB |
| 4. | YN05P01439P1 | [1] | HOSE | KOB |
| 5. | YN05P01495P1 | [1] | HOSE | KOB |
| 6. | YN05P01236P1 | [1] | HOSE | KOBYQ11-06001, Serial Range: -YQ11-06608 Superseded by part number: YN05P01236P2 |
| 7. | HX11Y05066DX | [1] | HOSE | KOB |
| . . | YN05P01236P2 | [1] | HOSE | KOB, Start Serial: YQ11-06609 |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONHose |
| 9. | YN05P01504P1 | [1] | PLATE | KOB |
| 10. | YN05P01489P1 | [1] | SUPPORT | KOB |
| 12. | YN05P01513P1 | [1] | GUARD | KOB |
| . . | YB05P01147P1 | [1] | TUBE | KOB, Start Serial: YQ11-06179 |
| 13. | YN05P01512P1 | [1] | GUARD | KOB |
| 14. | YN03E01001D5 | [4] | CLIP | KOB |
| 11. | YN05P01471P1 | [1] | TUBE | KOB, Serial Range: YQ11-06001-YQ11-06178 Superseded by part number: YB05P01147P1 |
| 15. | YN05P01514P1 | [1] | PLATE | KOB, Serial Range: YQ11-06001-YQ11-06198 Superseded by part number: YN05P01573P2 |
| . . | YN05P01573P1 | [1] | PLATE | KOB, Serial Range: YQ11-06199-YQ11-06243 Superseded by part number: YN05P01573P2 |
| 16. | YN05P01314P1 | [1] | CLIP | KOB Superseded by part number: YN05P01882P1 |
| . . | YN05P01573P2 | [1] | PLATE | KOB, Start Serial: YQ11-06244 |
| 18. | YW05P01025P1 | [1] | CLIP | KOB |
| 17. | 2420T2948D3 | [1] | U-BOLT | KOB, Serial Range: YQ11-06001-YQ11-06178 |
| . . | 2420T2948D3 | [1] | U-BOLT | KOB, Serial Range: YN11-45001-YN11-47047 |
| . . | ZM73C08020 | [7] | BOLT,M8x20mm - Course Thread | KOBSems, Start Serial: YQ11-06199 |
| 19. | ZM73C08020 | [5] | BOLT,M8x20mm - Course Thread | KOBSems, Serial Range: YQ11-06001-YQ11-06178 |
| 20. | ZM73C08025 | [4] | BOLT,M8x25mm - Course Thread | KOBSems |
| 21. | ZM73C10020 | [2] | BOLT,M10x20mm - Course Thread | KOBSems, Serial Range: YQ11-06001-YQ11-06178 |
| 22. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBCap |
| . . | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBCap M10x1.50x20mm, Start Serial: YQ11-06179 |
| 23. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm, Serial Range: YQ11-06001-YQ11-06178 |
| 25. | ZW16P10000 | [2] | WASHER | KOB |
| . . | ZN18C08007 | [8] | NUT | KOBM08x1.25mm, Start Serial: YQ11-06179 |
| 26. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| 27. | ZM73C10025 | [2] | BOLT,M10x25mm - Course Thread | KOBSems |
| 24. | ZW16P08000 | [2] | WASHER | KOB, Serial Range: YQ11-06001-YQ11-06178 |
| 28. | ZM73C10035 | [2] | BOLT,M10x35mm - Course Thread | KOBSems |
| 29. | ZC16X05000 | [1] | CLIP | KOB |
| . . | ZW16P08000 | [4] | WASHER | KOB, Start Serial: YQ11-06179 |
| 30. | ZC16X05800 | [6] | CLIP | KOB |
| 31. | ZC16X07000 | [3] | CLIP | KOB |
| 32. | PH05P01088D6 | [1] | CLIP | KOB |
| 34. | ZW16H10000 | [2] | WASHER | KOB, Start Serial: YQ11-06179 |
| 33. | YB05P01159P1 | [1] | PLATE | KOB, Start Serial: YQ11-06179 |
