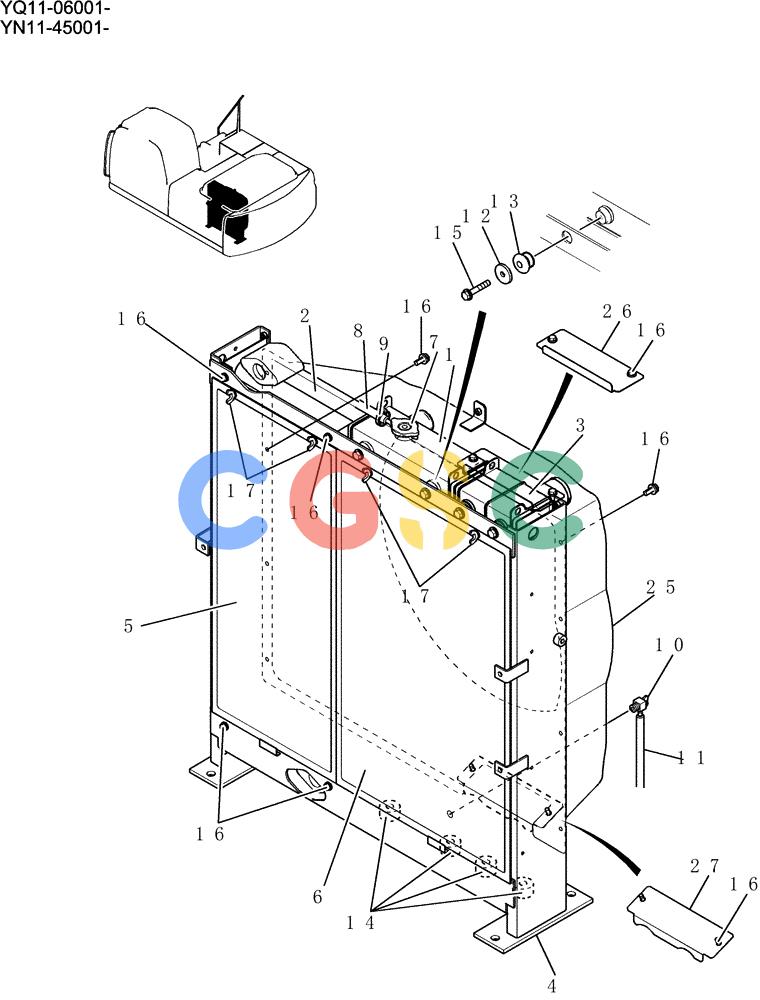

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (034-01-1) - RADIATOR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
524 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN05P00058F1 | [1] | RADIATOR | KOBAssy, Serial Range: YQ11-06001-YQ11-06271 Superseded by part number: YN05P00058F5 |
| 1. | YN05P00058S001 | [1] | RADIATOR | KOBAssy Superseded by part number: YN05P00058S038 |
| . . | YN05P00058F2 | [1] | RADIATOR | KOBAssy, Start Serial: YQ11-06272 Superseded by part number: YN05P00058F5 |
| 2. | YN05P00058S002 | [1] | OIL COOLER | SM Superseded by part number: YN05P00058R101 |
| 3. | YN05P00058S003 | [1] | COOLER | SMAir |
| 4. | YN05P00058S004 | [1] | SUPPORT | KOB |
| 5. | YN05P00058S005 | [1] | GUARD | SM |
| 6. | YN05P00058S006 | [1] | GUARD | KOB |
| 7. | YN05P00010S006 | [1] | RADIATOR CAP | KOB Superseded by part number: YN05P00088S032 |
| 8. | LC05P00011S026 | [1] | FLEXIBLE HOSE | KOB |
| 9. | 2452U267S8 | [2] | CLIP | KOB |
| 10. | 2452U221S18 | [1] | DRAINCOCK/TAP SUPPLY | KOB |
| 11. | 2452U416S6 | [1] | HOSE | KOBDrain |
| 12. | YN05P00058S012 | [4] | COLLAR | SM |
| 13. | YN05P00058S013 | [4] | SEAT CUSHION | SMMount, Rubber |
| 14. | YN05P00058S014 | [4] | SEAT CUSHION | KOBMount, Rubber |
| 15. | ZM22C10030 | [4] | BOLT | KOBSems |
| 16. | 2452U377S6 | [16] | CAP | KOBScrew |
| 17. | 2452U202S5 | [4] | BOLT | KOBWing |
| 18. | YN05P00058S018 | [2] | INSULATION | KOB |
| 19. | YN05P00058S019 | [2] | INSULATOR | SM |
| 20. | YN05P00058S020 | [2] | INSULATION | KOB |
| 21. | YB05P00001S022 | [2] | INSULATING PANEL | KOB |
| 22. | YN05P00058S022 | [1] | INSULATOR | SM |
| 23. | YN05P00058S023 | [1] | INSULATOR | SM |
| 24. | YN05P00058S024 | [1] | INSULATION | KOB |
| 25. | YN05P00058S025 | [1] | SHROUD | KOB |
| 26. | YN05P00058S026 | [1] | PLATE | KOB |
| 27. | YN05P00058S027 | [1] | PLATE | KOB |
| 28. | YN05P00058S028 | [2] | INSULATION | KOB, Serial Range: YQ11-06001-YQ11-06271 |
| 31. | YN05P00058S031 | [2] | PACKING | KOBInsulation |
| 29. | YN05P00058S029 | [2] | INSULATION | KOB, Serial Range: YQ11-06001-YQ11-06271 |
| 30. | YN05P00058S030 | [2] | INSULATION | KOB, Serial Range: YQ11-06001-YQ11-06271 |
| 35. | YN05P00058S035 | [2] | RUBBER SEAL | KOB, Start Serial: YQ11-06272 |
| 32. | YN05P00058S032 | [2] | GASKET | SMRubber, Start Serial: YQ11-06272 |
| 33. | YN05P00058S033 | [2] | RUBBER SEAL | KOB, Start Serial: YQ11-06272 |
| 34. | YN05P00058S034 | [2] | RUBBER SEAL | KOB, Start Serial: YQ11-06272 |
