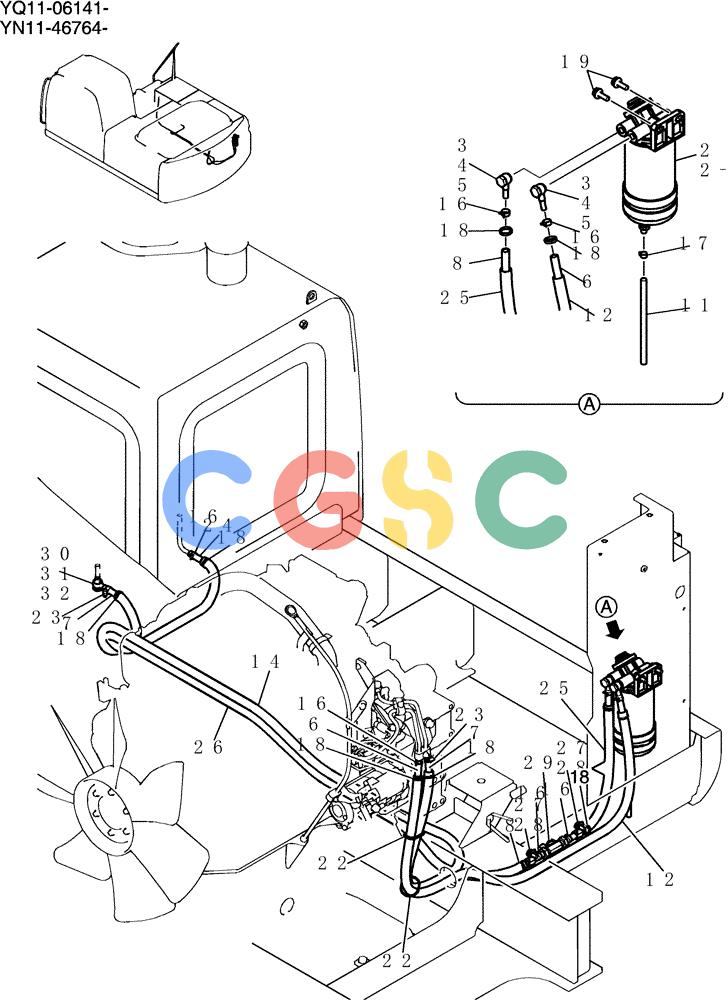

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (052-01A-1) - FUEL LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
732 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN21P00022F1 | [1] | Fuel | |
| 2. | VH233002800A | [1] | FILTER ASSY | KOB Superseded by part number: 23390-E0011, VHS233041490, VHS233021050, VHS820827860 |
| 2-1. | YN30T01002P1 | [1] | ELEMENT | KOBFilter Hino pn VH23390E0010 Superseded by part number: VH23390E0011 |
| 3. | VH237811620A | [2] | PIPE | KOBFuel Superseded by part number: VHS237811620 |
| 4. | VHSZ91024430 | [2] | BOLT | KOB |
| 5. | VHSZ43014003 | [4] | WASHER,14.6mm ID x 18.6mm OD x 1.4mm Thk | KOBSoft Superseded by part number: VHSL72301414 |
| 6. | YN21P01041P1 | [1] | HOSE,9.7mm ID x 1600mm L | KOB |
| 7. | HX11F06250DY | [1] | HOSE,9.70mm ID x 2500mm L | KOB |
| 8. | HX11F06052DX | [1] | HOSE,9.70mm ID x 520mm L | KOB |
| 11. | HX11Y06022DX | [1] | FLEXIBLE HOSE | KOB |
| 12. | HX81X19150DX | [1] | TUBE | KOB |
| 14. | HX81X19240DX | [1] | TUBE | KOB |
| 16. | PH05P01088D7 | [6] | CLIP,13.6mm - 17.5mm | KOB |
| 17. | PH05P01088D6 | [1] | CLIP | KOB |
| 18. | PY01P01043D2 | [8] | CABLE TIE,4.60mm W x 202mm L | KOB Superseded by part number: YT50C01100P1 |
| 19. | ZM73C10030 | [2] | BOLT,M10x30mm - Course Thread | KOBSems |
| 22. | PY01P01043D3 | [2] | CABLE TIE,188mm L | KOB |
| 23. | ZC16X01800 | [2] | CLIP | KOB |
| 24. | HX11F06230DX | [1] | HOSE,9.70mm ID x 2300mm L | KOB |
| 25. | HX81X19040DX | [1] | TUBE,19.5 mm ID x 23.8 mm OD | KOB |
| 26. | HX81X19220DX | [1] | TUBE | KOB |
| 27. | ZM73C10020 | [2] | BOLT,M10x20mm - Course Thread | KOBSems |
| 28. | ZC46X16011 | [2] | CLIP | KOB |
| 29. | YN25V00004P1 | [1] | VALVE | KOBStop |
| 30. | YN21P01056P1 | [1] | TUBE | KOB |
| 31. | YN21P01057P1 | [1] | BOLT | KOBEye |
| 32. | YN21P01058P1 | [2] | PACKING | KOB Superseded by part number: YN21P01078P1 |
