神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (059-01A-1) - TANK INSTAL, FUEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
681 次

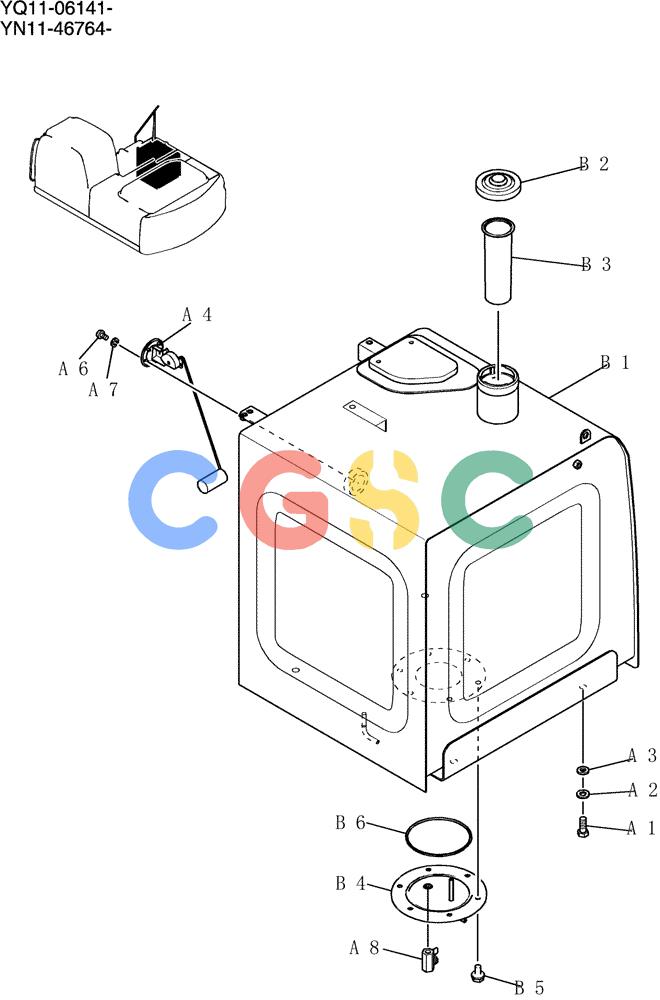

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN20P00123F1 | [1] | Instal, Fuel | |
| . . | YN20P00082F1 | [1] | Instal, Fuel | |
| A1. | ZS13C16040 | [4] | SCREW | KOBCap |
| A2. | ZW13H16000 | [4] | WASHER | KOB |
| A3. | LE33H01017D1 | [3] | SHIM,1.0mm Thk | KOB(1. 0) |
| A4. | YN52S00045F1 | [1] | SENSOR | SMFuel Level |
| . . | YN52S00045S005 | [1] | GASKET | KOB |
| A6. | ZS31C05012 | [5] | BOLT,Phillips Drive, Pan HD, M5 x 12mm | KOBMachine Screw |
| A7. | ZW26X05000 | [5] | LOCK WASHER | KOBLock |
| A8. | YN25V00001P1 | [1] | VALVE | KOBStop |
| . . | YN20P00124F1 | [1] | FUEL TANK | KOBFuel |
| B1. | YN20P00121P1 | [1] | FUEL TANK | KOBFuel, Serial Range: YQ11-06141-YQ11-06238 Superseded by part number: YN20P00128P1 |
| B2. | YN20P01034P2 | [1] | CAP | KOBFiller |
| B3. | YN50V00021P1 | [1] | FILTER STRAINER | KOB Superseded by part number: YN50V00029P1 |
| B4. | YN20P01258P1 | [1] | FLANGE | KOB |
| B5. | ZM73C10020 | [6] | BOLT,M10x20mm - Course Thread | KOBSems |
| B6. | ZD11G16000 | [1] | O-RING,5.7mm Thk x 159.3mm ID, 70 Duro | KOB |
