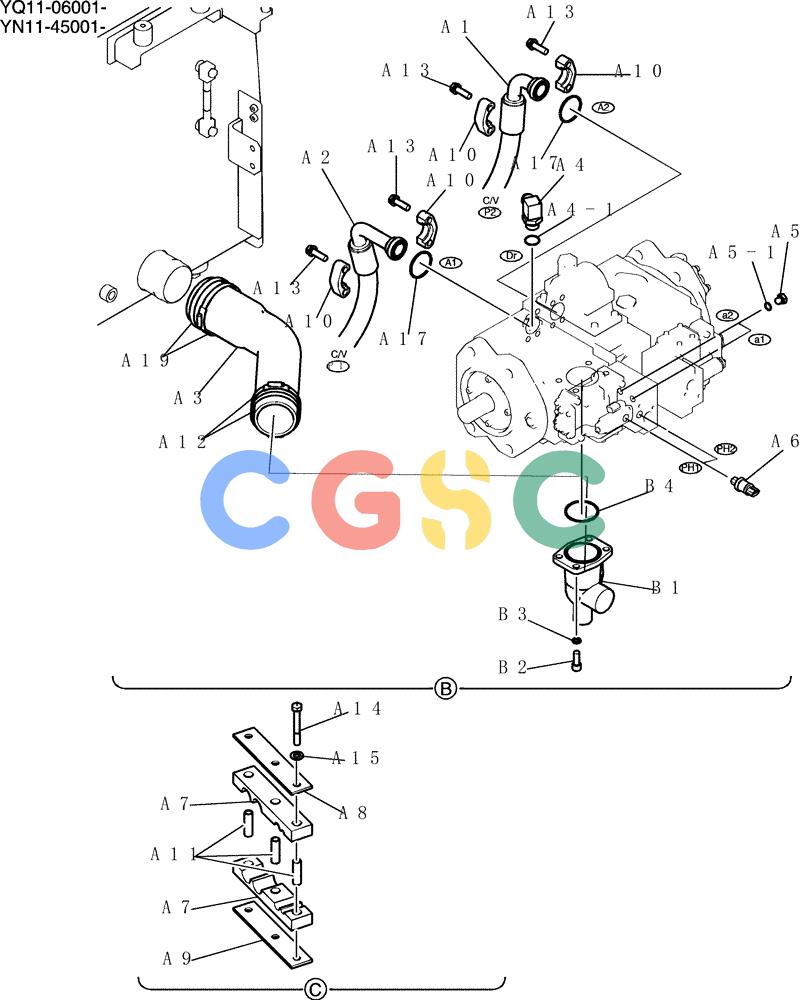

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (090-01-2) - HYD LINES, PUMP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
657 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30H00041F1 | [1] | Hyd, Pump | |
| . . | YN30H00043F1 | [1] | Hyd, Pump | |
| A1. | YN30H01212D1 | [1] | HOSE | KOB[ B ], Serial Range: YQ11-06001-YQ11-06354 Superseded by part number: YN30H01247D1 |
| A1. | YN30H01247D1 | [1] | HOSE | KOB, Start Serial: YQ11-06355 |
| A2. | YN30H01219D1 | [1] | HOSE | KOB |
| A3. | YN30H01196P1 | [1] | HOSE | KOB |
| A4. | ZH32X12000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow |
| A4-1. | ZD12P02400 | [1] | O-RING | KOB |
| A5. | ZE72X04000 | [2] | PLUG | KOB |
| A5-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| A6. | YN52S00048P1 | [2] | SENSOR | SMPress (h.P.), Serial Range: YQ11-06001-YQ11-06413 Superseded by part number: LS52S00015P1 |
| A6. | LS52S00015P1 | [2] | SENSOR | KOBPress (h.P.) (Added by SB S030-41-K003), Start Serial: YQ11-06414 |
| A7. | YN30H01214P1 | [2] | RUBBER | KOB |
| A6-0. | YY52S00033F1 | [1] | PRESSURE SWITCH | KOBKit Includes Ref 9 - 9-3 (Refer to SB S030-41-K003) |
| A8. | YN30H01217P1 | [1] | PLATE | KOB |
| A6-1. | LS30H01024P1 | [1] | HYD CONNECTOR | SM(Added with new part # press switch) |
| A9. | YN30H01215P1 | [1] | PLATE | KOB |
| A6-2. | ZD12P01400 | [1] | O-RING | KOBID 10.80 ± 0.18 x OD 15mm |
| A10. | ZE13X16000 | [8] | FLANGE | KOBClamp, Half |
| A6-3. | YT42H01128P1 | [1] | 90 ELBOW | KOB(Added with new part # press switch) |
| A11. | ZY26X06056 | [3] | SPACER | KOB |
| A12. | ZC16X09100 | [2] | CLIP | KOB |
| A13. | HM83C12040G1 | [16] | BOLT | KOBSems |
| A14. | ZS18C12090 | [3] | SCREW,Hex, M12 x 90mm | KOBCap |
| A15. | ZW16H12000 | [3] | WASHER | KOB |
| A17. | ZD12P03400 | [4] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| A19. | ZC16X10000 | [2] | CLIP | KOB |
| . . | YN30H00044F1 | [1] | Hyd, Pump | |
| B1. | YN30H01220P1 | [1] | ELBOW | KOB |
| B2. | ZS28C12030 | [4] | SCREW,Hex Socket Head, M12 x 30mm | KOB |
| B3. | ZW26K12000 | [4] | LOCK WASHER | KOB |
| B4. | 45Z91D104 | [1] | O-RING,3.53mm Thk x 69.44mm ID, 80 Duro | KOB Superseded by part number: 923582 |
