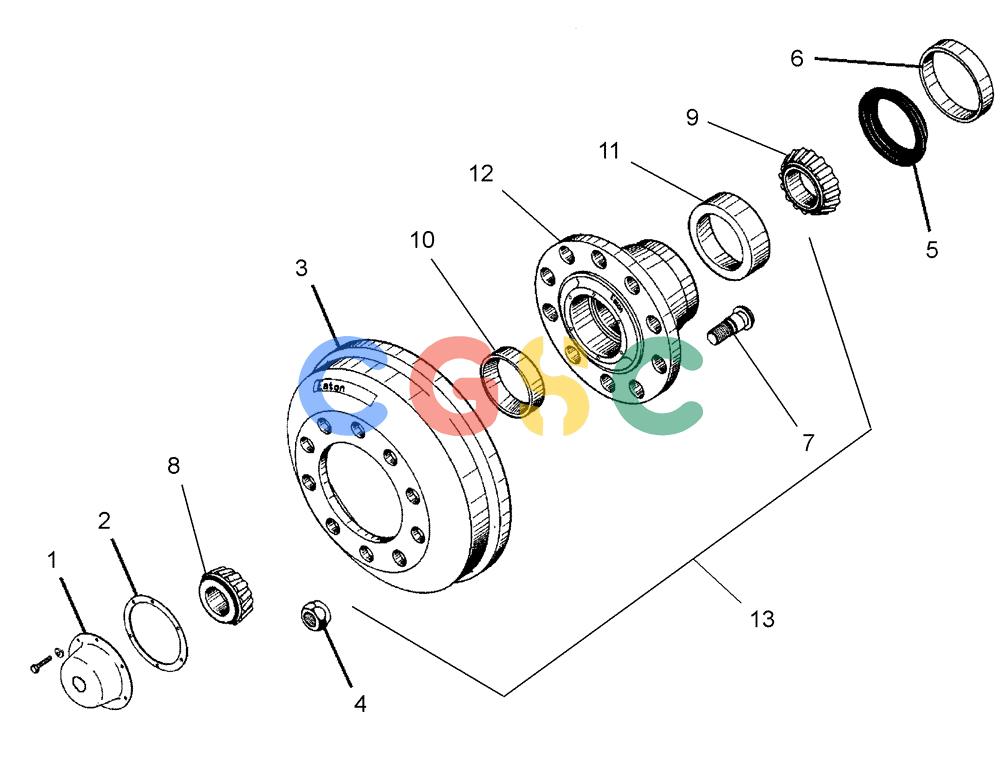

凯斯零件查询(4330) - TITAN FLOATER (6/98-8/99) (04-005) - FRONT AXLE HUB Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
685 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN2296172-047
|
[1] |
CAP
|
BN
Hub
|
| 2. |
BN2296172-048
|
[1] |
GASKET
|
BN
Hub Cap
|
| 3. |
BN2296172-020
|
[1] |
BRAKE DRUM
|
BN
|
| 4. |
BN2296172-019
|
[10] |
WHEEL NUT
|
BN
Wheel LH Superseded by part number: 87654450
|
| 4. |
BN2296172-018
|
[10] |
WHEEL NUT
|
BN
Wheel RH Superseded by part number: 87654448
|
| 5. |
BN2296172-049
|
[1] |
SEAL
|
BN
Hub
|
| 6. |
BN2296172-050
|
[1] |
SEAL
|
BN
Oil Ring
|
| 7. |
BN2407974
|
[10] |
STUD
|
BN
LH
|
| 7. |
BN2407975
|
[10] |
STUD
|
BN
RH
|
| 8. |
BN84218960
|
[1] |
cone, outer
|
|
| 9. |
BN84218957
|
[1] |
cone, inner
|
|
| 10. |
87267433
|
[1] |
BEARING CUP
|
BN
outer
|
| 11. |
87267434
|
[1] |
BEARING CUP
|
BN
inner
|
| 12. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Hub
|
| 13. |
BN84218951
|
[1] |
LH hub & drum assy
|
|
| 13. |
BN84218952
|
[1] |
RH hub & drum assy
|
|
