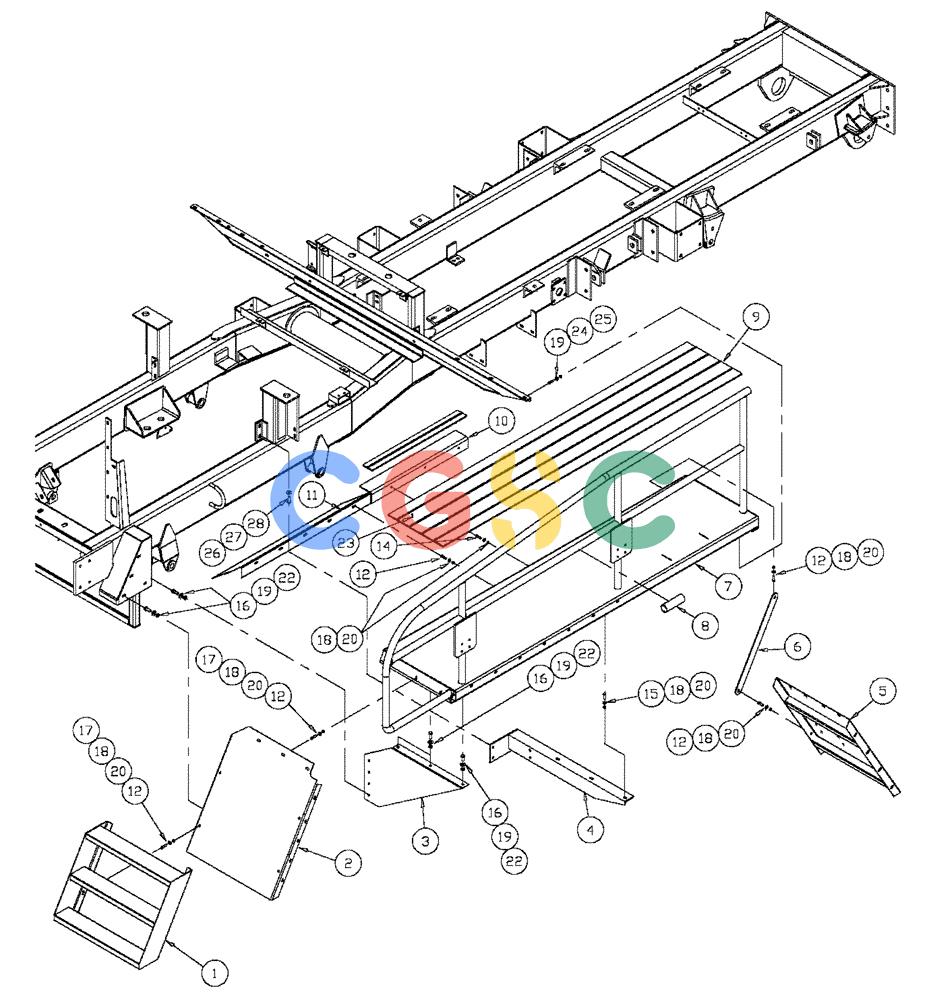

凯斯零件查询(4330) - TITAN FLOATER (6/98-8/99) (04-010) - WALKWAY GROUP - ROAD SIDE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1003 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN7141968
|
[1] |
STEP
|
BN
Front (95)
|
| 2. |
BN7141969
|
[1] |
SPLASH SHIELD
|
TYR
Front Pl R/S
|
| 3. |
BN303550
|
[1] |
SUPPORT
|
TYR
Walkway
|
| 4. |
BN7141941
|
[1] |
MOUNTING PLATE
|
BN
Walkway R
|
| 5. |
BN7141905
|
[1] |
SPLASH SHIELD
|
TYR
Rear PLAT
|
| 6. |
BN7141829
|
[1] |
PLATE
|
BN
Support Rod
|
| 7. |
BN304159
|
[1] |
WALKWAY
|
BN
CATWALK R/S Walkway
|
| 8. |
BN7141860
|
[1] |
HOSE
|
BN
Door/Window Bumper
|
| 8A. |
BN9990113
|
[4] |
Ty Rap, RTH-1400
|
|
| 9. |
BN2401312
|
[1] |
MAT
|
BN
P-80 GRS/PSA
|
| 10. |
BN7141993
|
[1] |
ANGLE
|
BN
Step Plate
|
| 11. |
BN7141788
|
[1] |
SPLASH SHIELD
|
TYR
Apron, LH
|
| 12. |
BN50254
|
[14] |
BOLT,3/8"-16 x 1", Stainless
|
BN
|
| 13. |
BN50212
|
[4] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 14. |
BN1913335C
|
[2] |
BOLT
|
BN
HH 3/8-16 X 1-1/2 Superseded by part number: 413-624
|
| 15. |
BN1913319C
|
[31] |
BOLT
|
BN
HH 3/8-16 X 1 NC Superseded by part number: 413-616
|
| 16. |
BN306620
|
[14] |
BOLT
|
BN
1/2-13 X 1.25, HH, G8 Superseded by part number: 280853
|
| 17. |
BN2392391
|
[14] |
WASHER
|
BN
Flat 3/8 SS
|
| 18. |
87529233
|
[67] |
WASHER,0.41" ID x 0.81" OD x 0.09" Thk
|
BN
3/8"
|
| 19. |
86624188
|
[12] |
WASHER,0.53" ID x 1.06" OD x 0.13" Thk
|
GI
|
| 20. |
BN1470404C
|
[45] |
LOCK NUT
|
BN
NC 3/8-16 Flex Lock Superseded by part number: 231-4146
|
| 21. |
BN1470402C
|
[4] |
FLANGE NUT
|
BN
1/4-20, FLN, G8 Superseded by part number: 280129
|
| 22. |
BN300407
|
[14] |
FLANGE NUT
|
BN
Flg, 1/2"-13, G8
|
| 23. |
BN2394894
|
[4] |
RIVET
|
BN
Pop 97525A032 3/16X
|
| 24. |
50285
|
[11] |
|
BOLT Hex, 1/2"-13 x 1 1/2", G5, Full Thd
|
| 25. |
BN55362
|
[11] |
LOCK NUT
|
BN
1/2-13, NLN, G5 Superseded by part number: 86992215
|
| 26. |
86637952
|
[20] |
WASHER,0.47" ID x 0.92" OD x 0.07" Thk
|
FAR
0.469 x 0.922 x 0.065, Hardened
|
| 27. |
BN305066
|
[8] |
NUT,7/16" - 14, Gr 8
|
BN
7/16-14, FLN, G8
|
| 28. |
BN50376
|
[4] |
7/16-14 X 1.5, HH, G8
|
|
