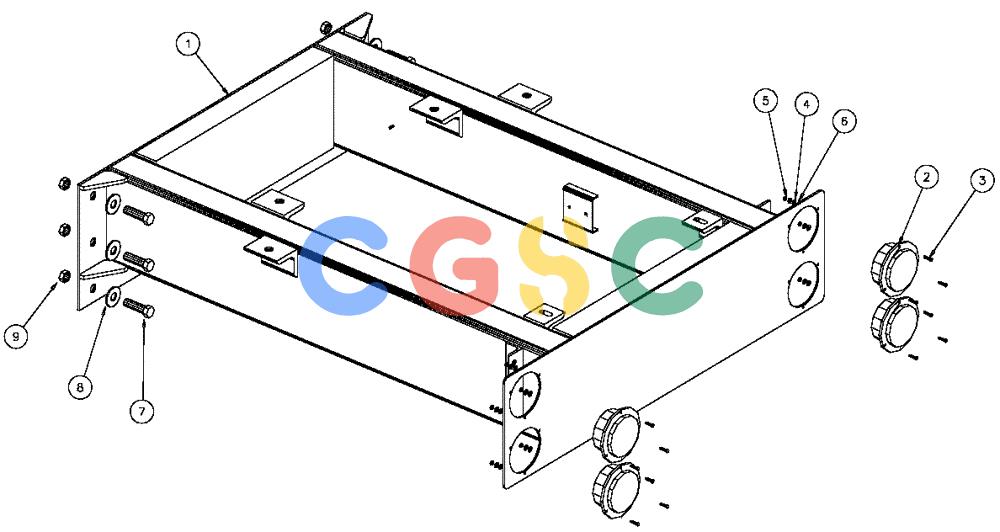

凯斯零件查询(4330) - TITAN FLOATER (6/98-8/99) (10-006) - FRAME EXTENSION, 54” Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN8171090
|
[1] |
FRAMEWORK
|
BN
Extension 54"
|
| 2. |
BN2297294
|
[4] |
TAIL LAMP
|
BN
Stop/Turn W
|
| 3. |
BN2407985
|
[12] |
SCREW,Hex, #10 - 24 x 3/4"
|
BN
10-24 x 3/4", HH, SST
|
| 4. |
BN2398314
|
[12] |
LOCK WASHER
|
BN
#10 SS
|
| 5. |
BN2297420
|
[12] |
NUT
|
BN
10-24 NC SS
|
| 6. |
BN2398315
|
[12] |
WASHER
|
BN
Flat #10 SS
|
| 7. |
BN1913380C
|
[6] |
BOLT
|
BN
HH 3/4-10 X 2-1/2 N
|
| 8. |
BN247218
|
[6] |
Hardened 3/4 WA17
|
|
| 9. |
BN1470409C
|
[6] |
LOCK NUT
|
BN
NC 3/4-10 Flex Lock Superseded by part number: 280375
|
| 10. |
BN8207020
|
[1] |
WIRE HARNESS
|
BN
Taillights (Dry)
|
| 11. |
BN2293346
|
[5] |
CLIP
|
BN
Body 9622
|
