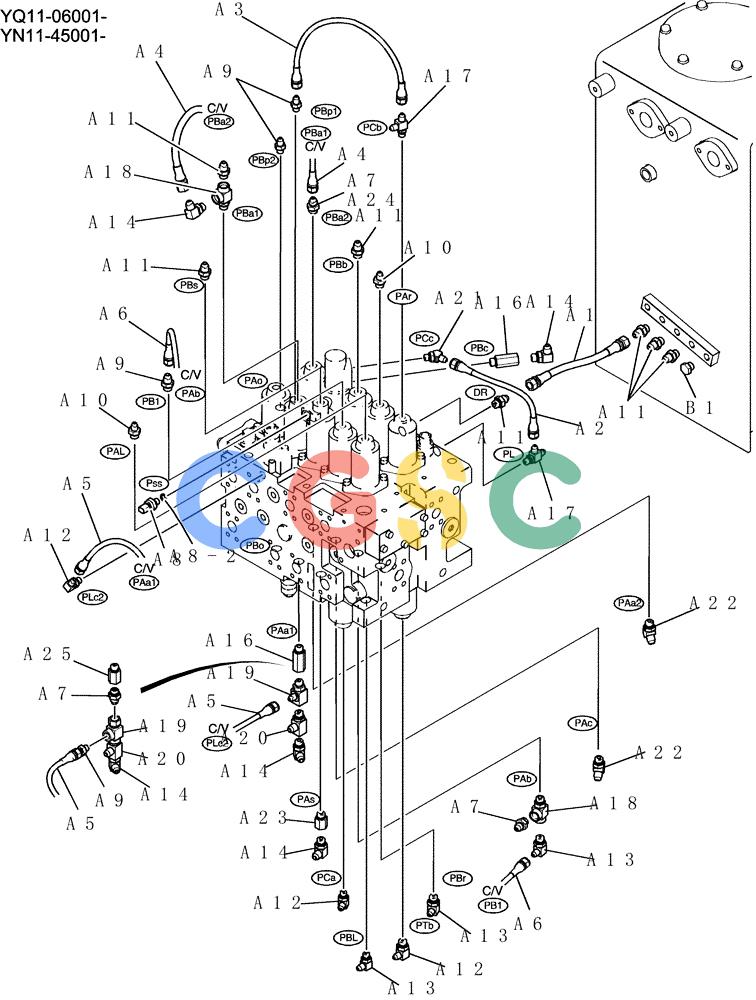

| . . | YN06H00089F1 | [1] | Control, Main | |
| . . | YN06H00086F1 | [1] | KIT | KOBControl, Main |
| A1. | 2420R537D030 | [1] | HOSE,9.53mm ID x 300mm L | KOB |
| A2. | 2420R349D028 | [1] | HOSE,280.00 mm | KOB Superseded by part number: 2420R349D030 |
| A3. | 2420R349D055 | [1] | HOSE,6.35mm ID x 550mm L | KOB |
| A4. | 2420R537D038 | [1] | HOSE,9.60mm ID x 380mm L | KOB Superseded by part number: 2420R537D040 |
| A5. | 2420R349D125 | [1] | HOSE,1250.00 mm | KOB Superseded by part number: HX21E04125DX |
| A6. | 2420R349D120 | [1] | HOSE,6.35mm ID x 1200mm L | KOB |
| A7. | YN21V00005F1 | [2] | CHECK VALVE | KOBAssy, Check |
| A8. | YX52S00013P1 | [1] | SENSOR | SMPress (L.P), Serial Range: YQ11-06001-YQ11-06105 Superseded by part number: LC52S00019P1 |
| A8-2. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| . . | LC52S00019P1 | [1] | SENSOR | SMPress (L.P) Incls. O-Ring ZD12P01100, Start Serial: YQ11-06106 |
| A10. | ZH22X04006 | [2] | HYD CONNECTOR | KOB |
| A9. | ZH22X04000 | [3] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB, Serial Range: YQ11-06001-YQ11-06360 |
| A11. | ZH22X06000 | [7] | HYD CONNECTOR | KOB |
| A12. | ZH32X04000 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow |
| . . | ZH22X04000 | [4] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB, Start Serial: YQ11-06361 |
| A13. | ZH32X04006 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB |
| A14. | ZH32X06000 | [4] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow |
| A17. | 2444Z2336 | [2] | TEE | KOBTee |
| A18. | HH55Q06006G1 | [2] | TEE | KOB |
| A16. | 2444Z3711 | [2] | HYD CONNECTOR | KOB, Serial Range: YQ11-06001-YQ11-06360 |
| A20. | 2444T3402 | [1] | TEE | KOBTee Superseded by part number: HH55V06006G3 |
| . . | 2444Z3711 | [1] | HYD CONNECTOR | KOB, Start Serial: YQ11-06361 |
| A21. | YN06H01045P1 | [1] | 45 ELBOW | SMElbow |
| A22. | ZH42X06000 | [2] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB |
| A23. | 2444Z2891 | [1] | HYD CONNECTOR | KOB |
| A19. | 2444Z3421 | [1] | TEE | KOB, Serial Range: YQ11-06001-YQ11-06360 |
| . . | YN06H01046P1 | [1] | HYD CONNECTOR | SMTee, Start Serial: YQ11-06361 |
| A24. | YN21V00005F2 | [1] | CHECK VALVE | KOBAssy, Check, Start Serial: YQ11-06361 |
| A25. | HH25R06006G1 | [1] | HYD CONNECTOR | KOB, Start Serial: YQ11-06361 |
| . . | YN06H00090F1 | [1] | KIT | KOBControl, Main Superseded by part number: ZE72X06000 |
| B1. | ZE72X06000 | [1] | PLUG | KOB |
