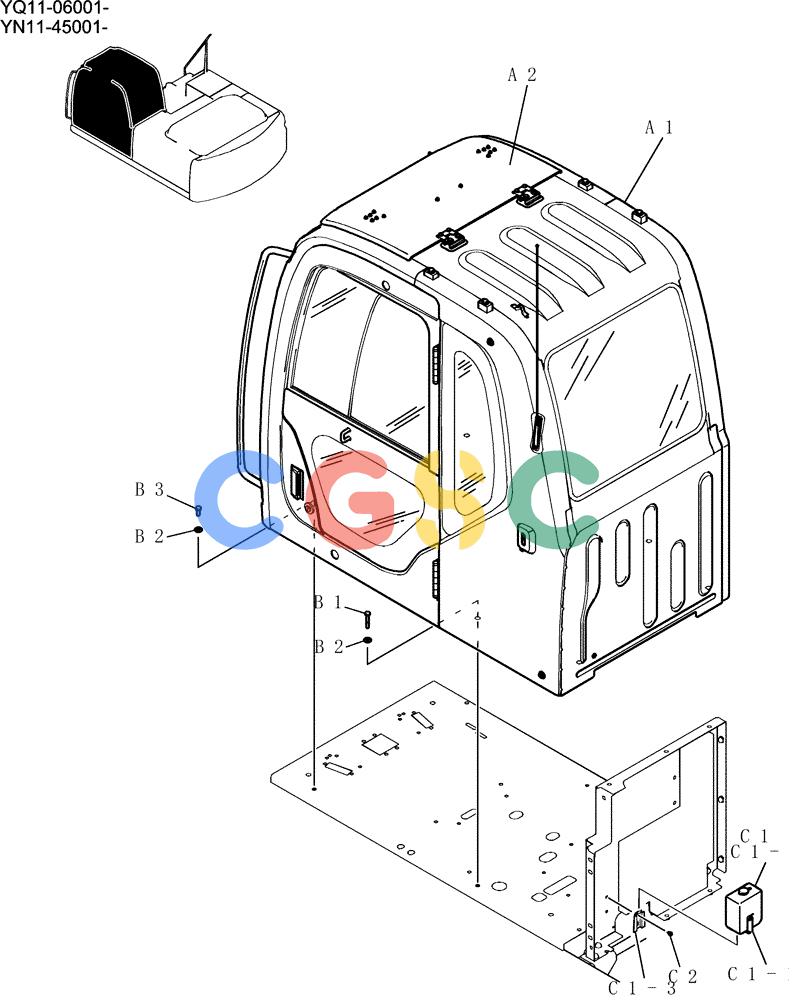

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (177-01-1) - CAB INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
924 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN02C00171F1 | [1] | Instal | |
| . . | YN02C00170F1%KL | [1] | CAB | KOBAssy (grayish Black) |
| A1. | YN02C00131F1 | [1] | (See Fig No.180-01-1) | |
| A2. | YN02C03183F1 | [1] | WINDOW | KOBAssy, Roof (See Fig No.188-01-1) |
| . . | YN02C00136F1 | [1] | Instal | |
| B1. | ZS18C12065 | [5] | SCREW,Hex, M12 x 65mm | KOBCap |
| B2. | 2418T10357 | [6] | WASHER | KOB Superseded by part number: 2418T12345 |
| B3. | ZS18C12030 | [1] | SCREW,Hex, M12 x 30mm | KOBCap |
| . . | YN54C00002F1 | [1] | Washer | |
| C1. | YT54C00003F1 | [1] | TANK | KOBAssy, Washer |
| C1-1. | YT54C00003S001 | [1] | ELECTRIC MOTOR | KOBAssy, Elec |
| C1-2. | YT54C00003S002 | [1] | TANK | KOBAssy, Water |
| C1-3. | YT54C00003S003 | [1] | BRACKET | KOB Superseded by part number: 2416P7292 |
| C2. | ZM73C06016 | [2] | BOLT,M6x16mm - Course Thread | KOBSems |
