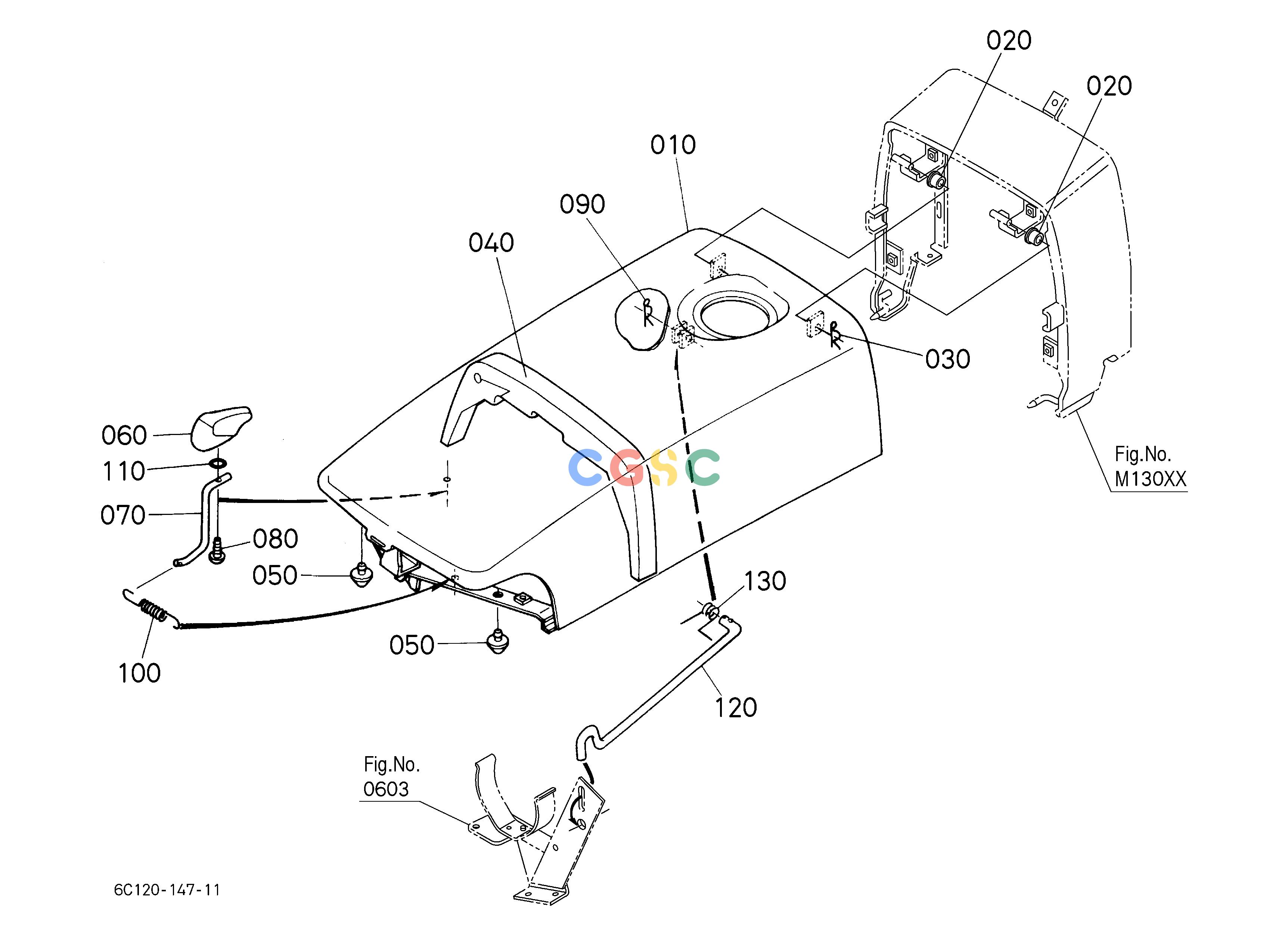

久保田零件查询M10501 BONNET HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
380 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09054100
|
[1] |
COMP.BONNET
|
9.2840(lbs); 4.220
|
| 010. |
6A32054010
|
[1] |
COMP.BONNET
|
9.3720(lbs); 4.260
|
| 020. |
6A10054190
|
[2] |
BUSH
|
0.0022(lbs); 0.001
|
| 030. |
0552550800
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 040. |
6A32054463
|
[1] |
CUSHION
|
0.1760(lbs); 0.080
|
| 050. |
6C09054162
|
[2] |
CUSHION
|
0.0286(lbs); 0.013
|
| 060. |
6C04054260
|
[1] |
HANDLE MASCOT
|
0.0616(lbs); 0.028
|
| 070. |
6C09054270
|
[1] |
LEVER HANDLE
|
0.1980(lbs); 0.090
|
| 080. |
0361450416
|
[1] |
SCREW TAPPING
|
0.0044(lbs); 0.002
|
| 090. |
0552550800
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 100. |
6C04054150
|
[1] |
SPRING
|
0.0132(lbs); 0.006
|
| 110. |
0481110080
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
6C09054253
|
[1] |
ROD BONNET
|
0.2640(lbs); 0.120
|
| 130. |
6C09054510
|
[1] |
SPRING
|
0.0154(lbs); 0.007
|
