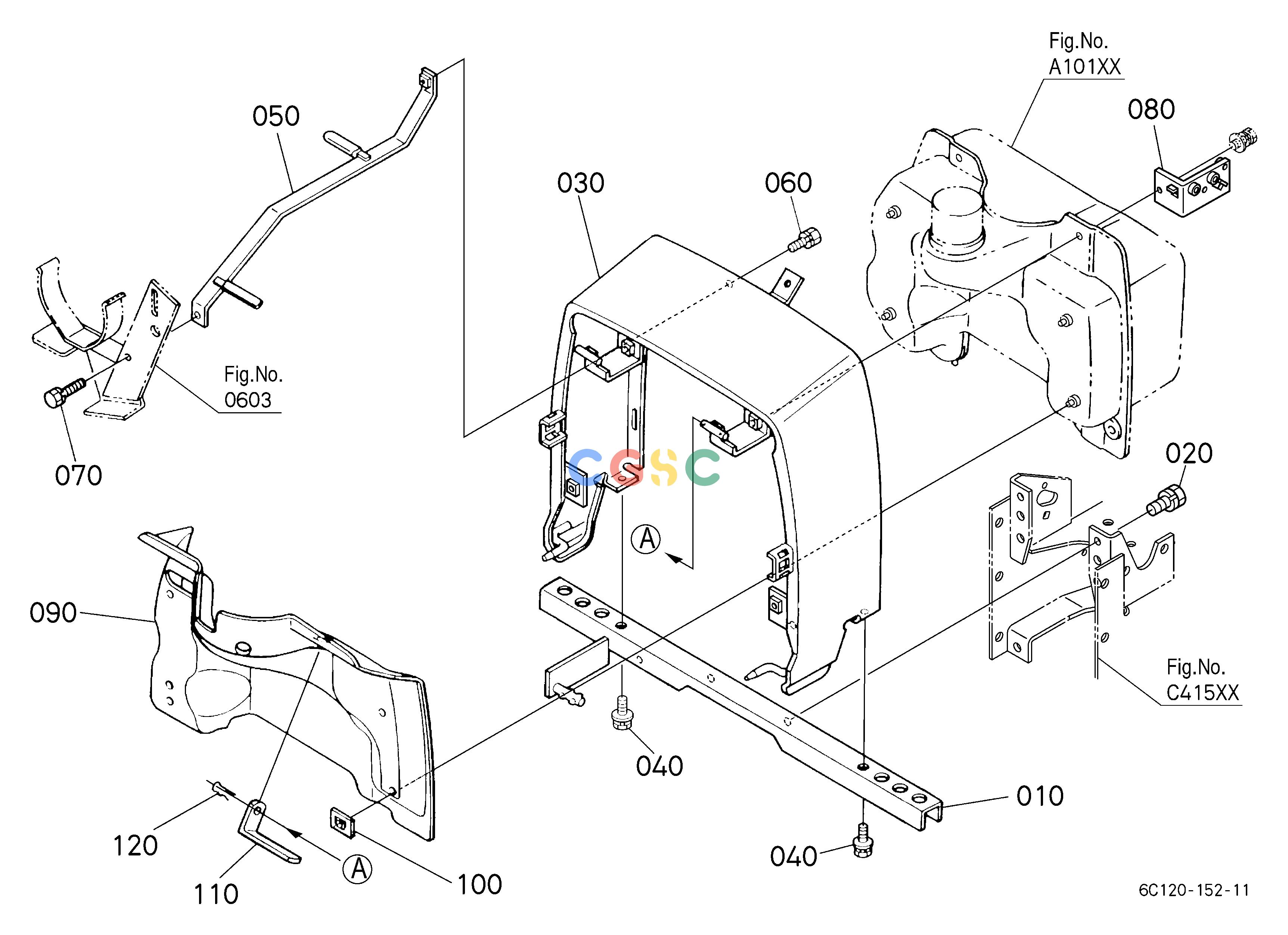

久保田零件查询M13002 SHUTTER PLATE [AU][NZ] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
998 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09054213
|
[1] |
PILLAR CENTER
|
3.5200(lbs); 1.600
|
| 020. |
0113351022
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 030. |
6C09054225
|
[1] |
PILLAR CENTER
|
7.5020(lbs); 3.410
|
| 040. |
6C04054610
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 050. |
6C09054230
|
[1] |
STAY PILLAR
|
0.7810(lbs); 0.355
|
| 060. |
0102350616
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 070. |
0102350625
|
[1] |
BOLT
|
0.0154(lbs); 0.007
|
| 080. |
6A32054280
|
[1] |
BRACKET
|
0.2200(lbs); 0.100
|
| 090. |
6C09054554
|
[1] |
COVER HEAT PROOF
|
0.4620(lbs); 0.210
|
| 100. |
5230026210
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 110. |
6C09054570
|
[1] |
PLATE
|
0.1584(lbs); 0.072
|
| 120. |
0552550800
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
