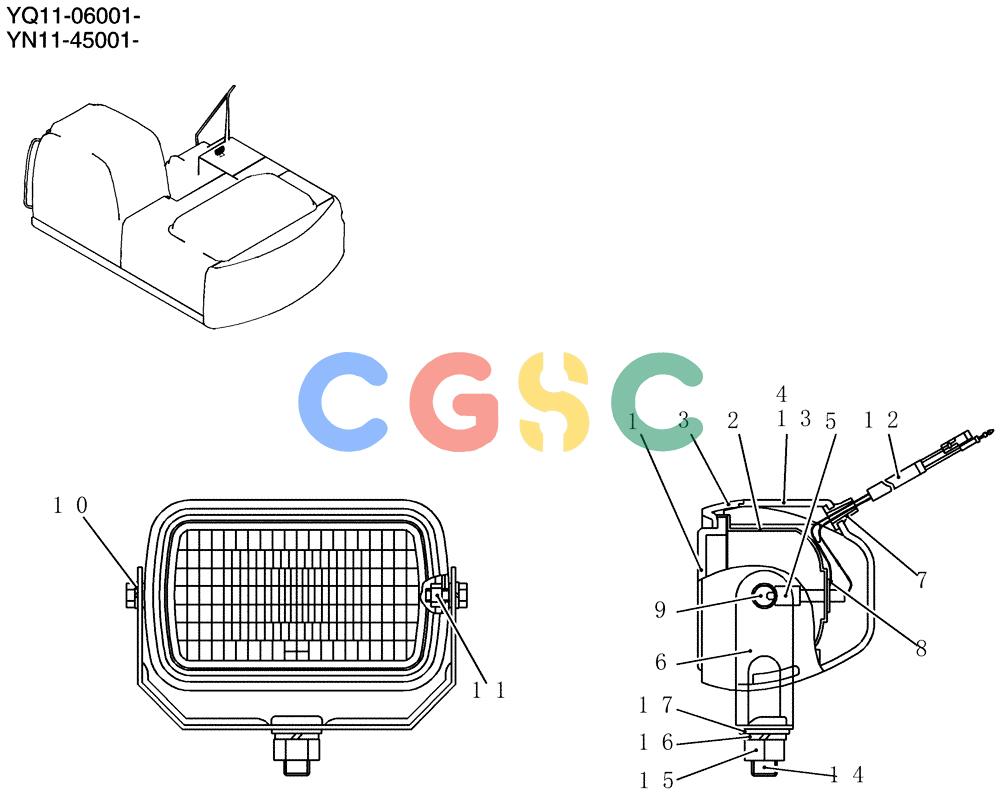

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (305-01-1) - LIGHT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
941 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT80S00002F2 | [1] | LIGHT | KOBAssy Superseded by part number: YN80S00010F1 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONLens |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONReflector |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONFrame |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONHousing |
| 5. | YT80S00002S005 | [1] | BULB | KOBValve |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONBracket |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONPacking |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONMachine Screw |
| 9. | NSS | [2] | NOT SOLD SEPARAT | CONMachine Screw |
| 10. | NSS | [2] | NOT SOLD SEPARAT | CONLock Washer |
| 11. | NSS | [2] | NOT SOLD SEPARAT | CONNut |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONHarness |
| 13. | NSS | [4] | NOT SOLD SEPARAT | CONMachine Screw |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONMachine Screw |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONNut |
| 16. | NSS | [1] | NOT SOLD SEPARAT | CONLock Washer |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONWasher |
