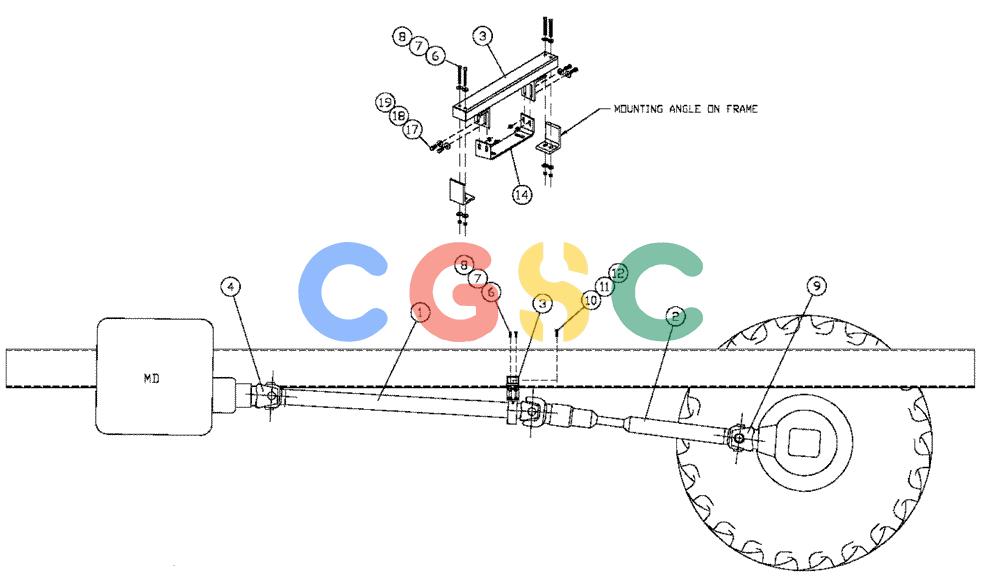

凯斯零件查询(4330) - TITAN FLOATER (6/98-8/99) (03-002) - DRIVELINE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
505 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN2296454
|
[1] |
FENDER ASSY.
|
TYR
913356(67)
|
| 2. |
BN2296469
|
[1] |
DRIVEN SHAFT
|
BN
905343 (54.37) Superseded by part number: BN302123
|
| 3. |
BN7146366
|
[1] |
MOUNTING PLATE
|
BN
Driveline Bearing
|
| 6. |
BN1913404C
|
[4] |
HH 3/8-16 X 3-1/4 N
|
|
| 7. |
87529233
|
[4] |
WASHER,0.41" ID x 0.81" OD x 0.09" Thk
|
BN
3/8"
|
| 8. |
BN1470404C
|
[4] |
LOCK NUT
|
BN
NC 3/8-16 Flex Lock Superseded by part number: 231-4146
|
| 9. |
BN2292588
|
[1] |
YOKE
|
BN
End 6-4-5131X (1710)
|
| 10. |
BN1470406C
|
[2] |
LOCK NUT
|
BN
NC 1/2-13 Flex Lock Superseded by part number: 231-4148
|
| 11. |
BN1913337C
|
[2] |
BOLT
|
BN
HH 1/2-13 X 1-1/2 N Superseded by part number: 413-824
|
| 12. |
BN2303146
|
[2] |
WASHER
|
BN
Flat 1/2
|
| 13. |
BN7146503
|
[1] |
STRIP
|
BN
Spacer CAT (Front)
|
| 14. |
BN7146282
|
[1] |
PLATE
|
BN
Driveline Mount
|
| 17. |
BN1913346C
|
[4] |
BOLT
|
BN
HH 7/16-14 X 1-3/4 Superseded by part number: 413-728
|
| 18. |
BN2303145
|
[8] |
WASHER
|
BN
Flat 7/16
|
| 19. |
BN1470405C
|
[4] |
NUT
|
BN
NC 7/16-14 Flex Lock Superseded by part number: 280980
|
