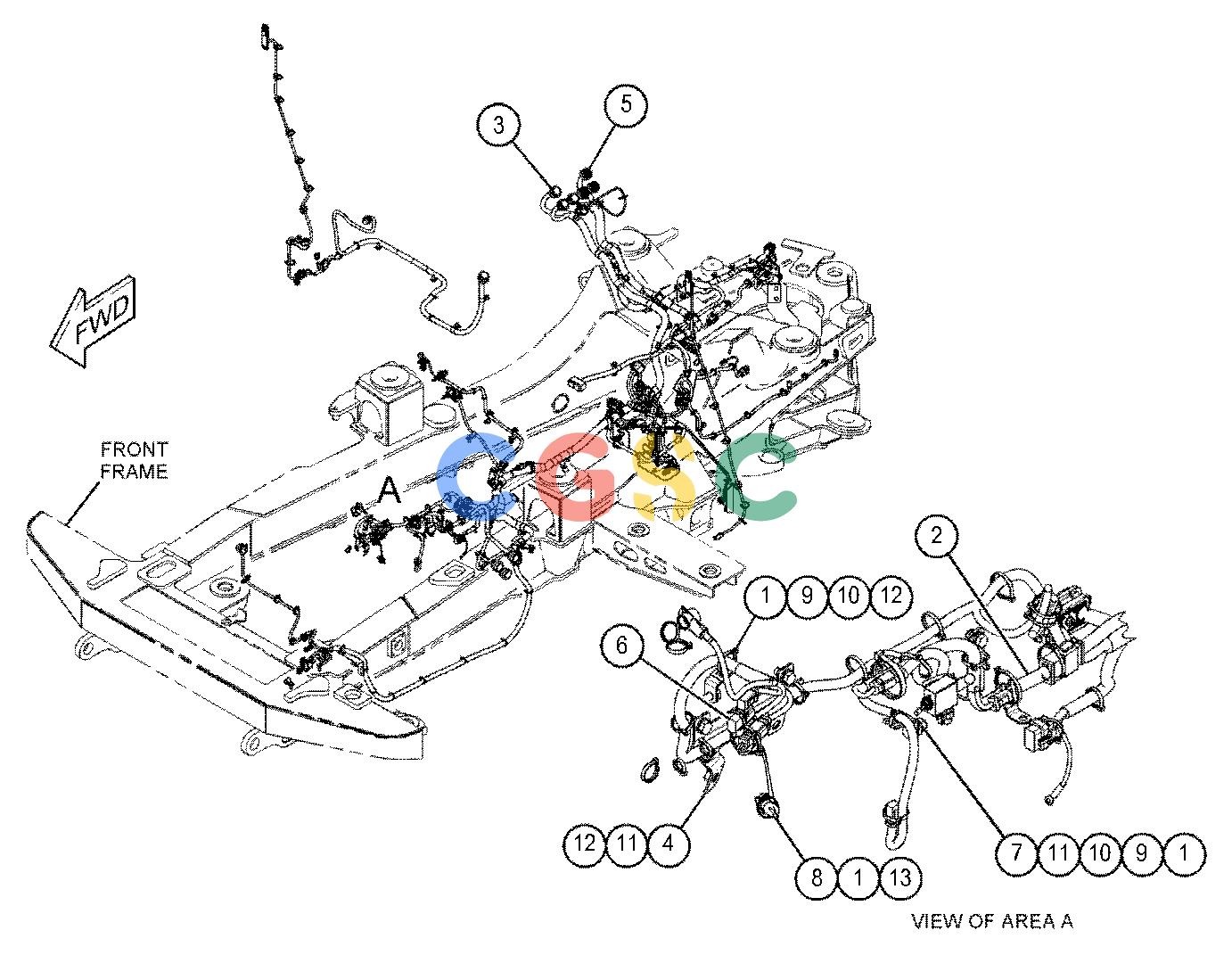

卡特零件查询（730C2） 470-4414: WIRING GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
610 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [12] | STRAP-CABLE | |
| 2. | 446-9683Y | [1] | HARNESS AS-SENSOR(FUEL FILTER) | |
| 3. | 450-6560Y | [1] | HARNESS AS-FRONT CHASSIS | |
| 4. | 452-7856 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 5. | 470-4416Y | [1] | WIRING GP-FRONT | |
| 6. | 189-3158 | [1] | SUPPRESSOR-ARC | |
| 7. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 8. | 355-3148 | [1] | SWITCH AS-PRESSURE(HIGH, LOW)(AIR CONDITIONER) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 9. | 4P-8134 | [1] | CLIP(LADDER) | |
| 10. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 12. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 13. | 9X-7378 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
