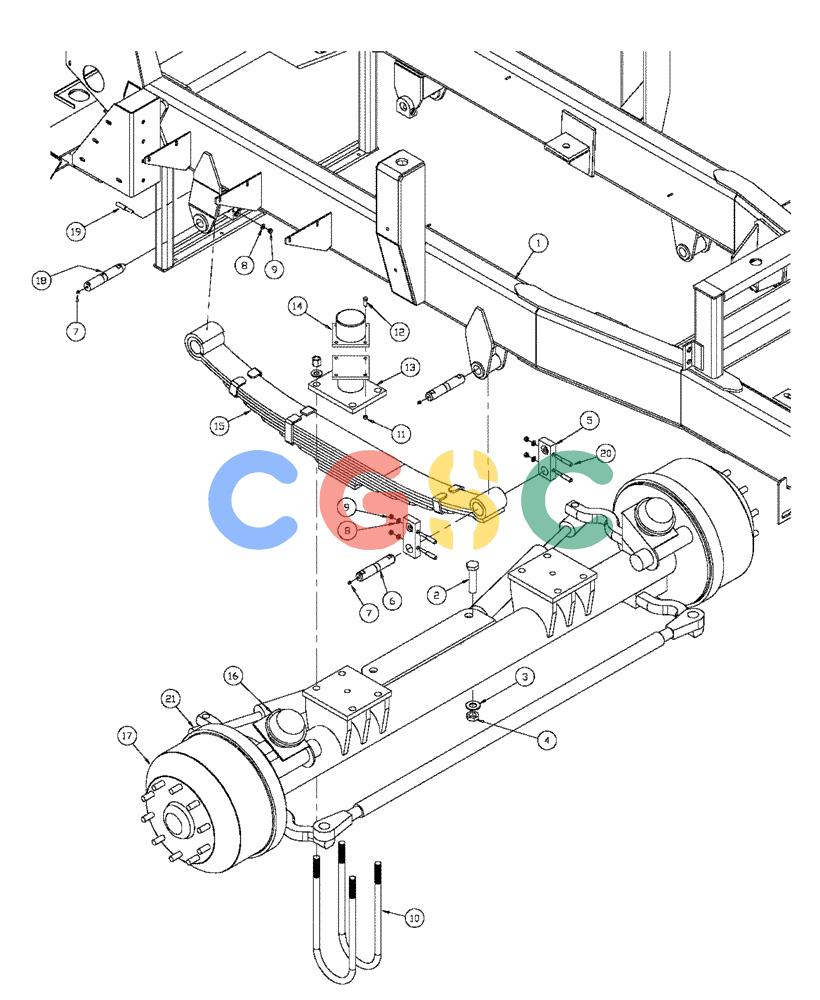

凯斯零件查询(4375) - TITAN FLOATER (5/98-8/99) (04-001) - FRONT AXLE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
112 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN300063
|
[1] |
Main, 4 Wheeler
|
|
| 2. |
428-1672
|
[2] |
BOLT,Hex, 1" - 14 x 4-1/2", Gr 8
|
BN
Hex, 1"-14 x 4", G8
|
| 3. |
BN2298333
|
[2] |
WASHER
|
BN
Hardened 1 Wa1772
|
| 4. |
BN1470411F
|
[2] |
LOCK NUT
|
BN
1"-14 Flex
|
| 5. |
BN2394958
|
[4] |
SHACKLE
|
BN
Front, E397-55
|
| 6. |
BN2391613
|
[4] |
PIN,31.7mm OD x 165.1mm L
|
BN
Shackle B1367-55
|
| 7. |
BN2651850
|
[6] |
LUBE NIPPLE
|
BN
Zerk, 1/8 STR 5000 Superseded by part number: 80710
|
| 8. |
BN2292371
|
[10] |
NUT
|
BN
3/8, FW, G8
|
| 9. |
BN1470404C
|
[10] |
LOCK NUT
|
BN
NC 3/8-16 Flex Lock Superseded by part number: 231-4146
|
| 10. |
BN2292187
|
[4] |
U-BOLT
|
BN
U, 7/8 X 6 1/8 X 18 1/2
|
| 11. |
BN300358
|
[8] |
NUT
|
BN
M10-1.5, FLN, 8.8 Superseded by part number: 87547587
|
| 12. |
BN301045
|
[8] |
BOLT,Hex, M10 x 25, 10.9, Full Thd
|
BN
Superseded by part number: 11106231
|
| 13. |
BN7147045
|
[2] |
SUPPORT
|
BN
U-Bolt Front Spring
|
| 14. |
BN5001054
|
[2] |
BUMPER
|
BN
Rubber, 3 3/8"
|
| 15. |
BN2394957
|
[2] |
SPRING
|
TYR
Double Eye 572383C91
|
| 16. |
BN1666159
|
[2] |
PLUG
|
BN
Allen Head 3/8
|
| 17. |
BN7147025
|
[1] |
AXLE
|
BN
Front Superseded by part number: 87267448, 87266552, 86836701, 86637954, 80708, 87267450, 47951623, 43140, 428-1672, BN1470411F, BN5001054, 100037, BN302557, 87267313
|
| 18. |
BN2391614
|
[2] |
PIN,31.7mm OD x 178.82mm L
|
BN
Front B1366-55 Flagg
|
| 19. |
BN2294185
|
[2] |
KEY
|
BN
Draw LP#107 Flagg
|
| 20. |
BN2294181
|
[8] |
KEY
|
BN
Draw, #113
|
| 21. |
BN2293237
|
[2] |
BOOT
|
BN
Garrison
|
