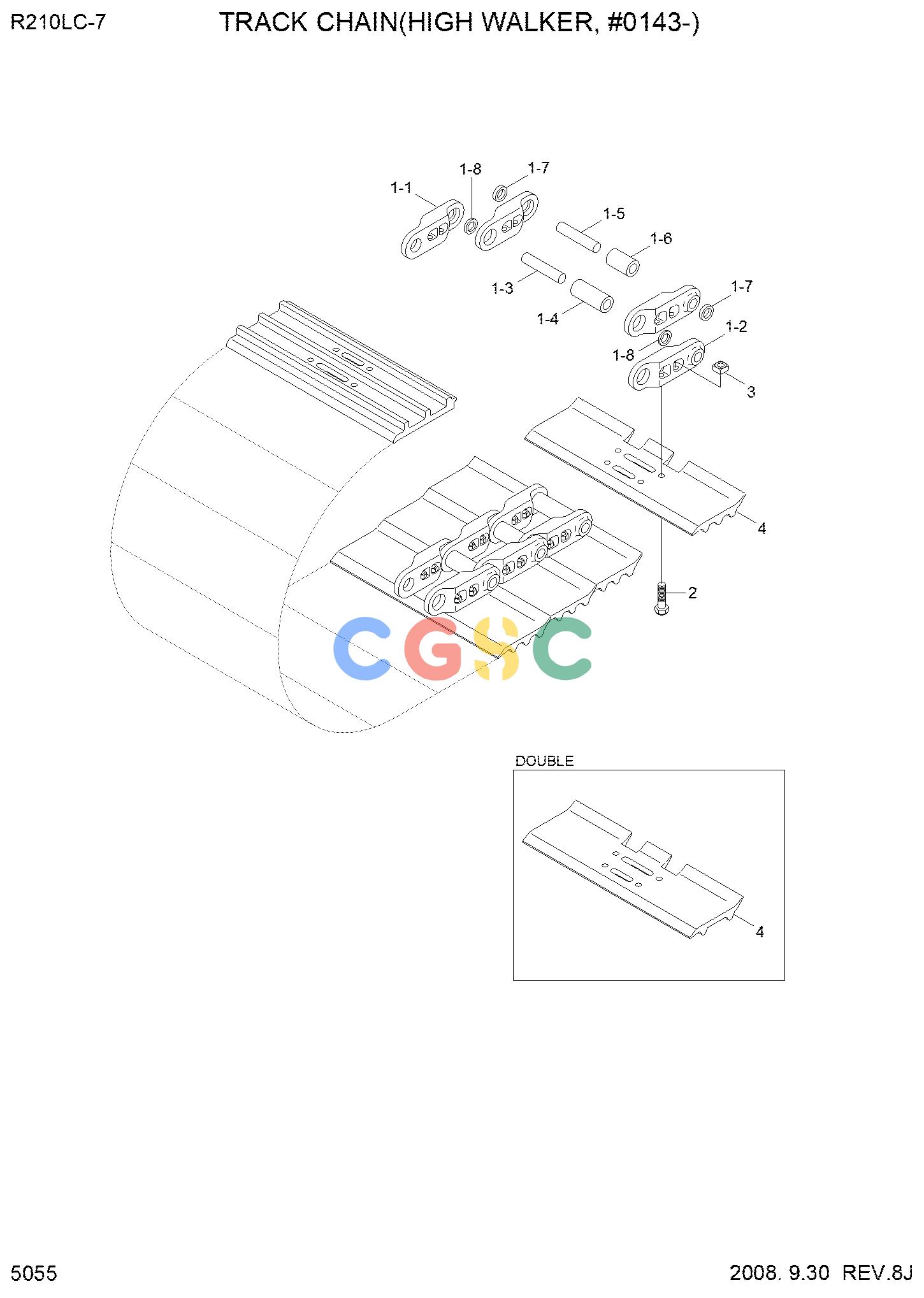

现代零件查询R210LC-7(#98001-) TRACK CHAIN(R210-7)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
552 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
81N6-23030
|
[2] |
TRACK CHAIN ASSY
|
|
| . |
81N6-23030BG
|
[2] |
TRACK CHAIN ASSY
|
|
| 1. |
81N6-23600
|
[1] |
TRACK LINK ASSY
|
|
| 1-1. |
81N6-26100
|
[46] |
TRACK LINK-RH
|
|
| 1-2. |
81N6-26110
|
[46] |
TRACK LINK-LH
|
|
| 1-3. |
81N6-26140
|
[45] |
PIN-TRACK
|
|
| 1-4. |
81N6-26150
|
[45] |
BUSHING-TRACK
|
|
| 1-5. |
81N6-26160
|
[1] |
PIN-MASTER
|
|
| 1-6. |
81N6-26170
|
[1] |
BUSHING-MASTER
|
|
| 1-7. |
81N6-26180
|
[2] |
SPACER
|
|
| 2. |
81EM-20020
|
[184] |
BOLT-TRACK
|
|
| 3. |
81N6-26620
|
[184] |
NUT-TRACK
|
|
| 4. |
81EM-28030
|
[46] |
SHOE-TRACK
|
|
| . |
81N6-23040
|
[2] |
TRACK CHAIN ASSY
|
|
| . |
81N6-23040BG
|
[2] |
TRACK CHAIN ASSY
|
|
| 5. |
81EM-28040
|
[46] |
SHOE-TRACK
|
|
| . |
81N6-23060
|
[2] |
TRACK CHAIN ASSY
|
|
| . |
81N6-23060BG
|
[2] |
TRACK CHAIN ASSY
|
|
| 6. |
81EM-28060
|
[46] |
SHOE-TRACK
|
|
