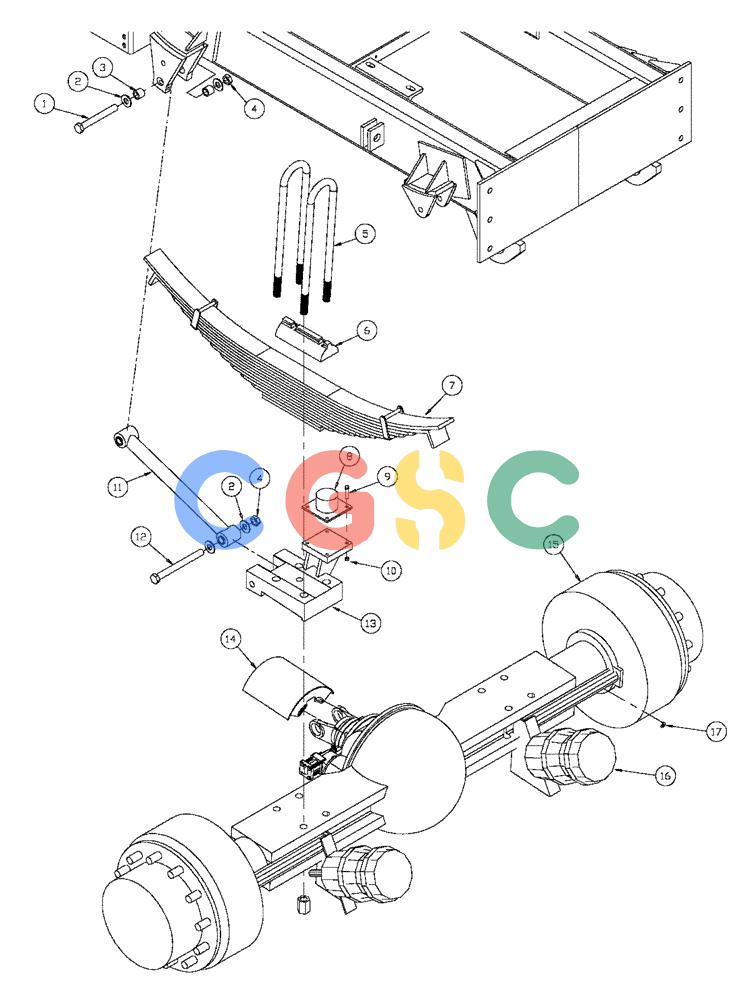

凯斯零件查询(4375) - TITAN FLOATER (5/98-8/99) (04-006) - REAR AXLE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN305003
|
[2] |
SCREW,7/8" - 9 x 7"
|
BN
7/8-9 X 7, HH, G8
|
| 2. |
87310608
|
[8] |
WASHER,22mm ID x 44mm OD x 5mm Thk
|
BN
22 x 44 x 5 mm, HDN, DOR
|
| 3. |
BN304486
|
[4] |
BUSHING,22.35mm ID x 31.75mm OD x 26.92mm L
|
BN
1.25 X .88 X 1.06L
|
| 4. |
BN305004
|
[4] |
LOCK NUT
|
BN
7/8-9, NLN, G8 Superseded by part number: 232-46314
|
| 5. |
BN2292167
|
[4] |
U-BOLT
|
BN
1" x 3 1/2" x 21 1/2"
|
| 6. |
BN303450
|
[2] |
Seat, Upper, Offset
|
|
| 7. |
BN305115
|
[2] |
Rear 14 Leaf
|
|
| 8. |
BN5183018
|
[2] |
BUMPER
|
BN
Rubber, 2 1/8"
|
| 9. |
BN302743
|
[8] |
BOLT
|
BN
M10-1.5 X 45, HH, 10.9
|
| 10. |
BN304419
|
[8] |
NUT
|
BN
M10-1.5, NLN, 10.9 Superseded by part number: 100037
|
| 11. |
BN304485
|
[2] |
ARM ASSY.
|
BN
Torque, 21.5
|
| 12. |
BN305144
|
[2] |
7/8-9 X 9, HH, G8
|
|
| 13. |
BN323480
|
[1] |
PAD
|
BN
Axle Spring, RS
|
| 13A. |
BN323481
|
[1] |
PAD
|
BN
Axle Spring, CS
|
| 14. |
BN7136365
|
[1] |
GUARD
|
BN
U-Joint
|
| 15. |
BN2390129
|
[1] |
Axle, PRC 674-P201 2-Speed (3.91/5.45)
|
|
| 15A. |
BN2390145
|
[1] |
AXLE
|
BN
PRC 74-202 2-Speed (4.88/6.80)
|
| 16. |
BN7136129
|
[2] |
BRAKE ASSY.
|
BN
Chamber Assy/Inst
|
| 17. |
BN41288
|
[2] |
LUBE NIPPLE
|
BN
1/8-27 X 90 Degree
|
