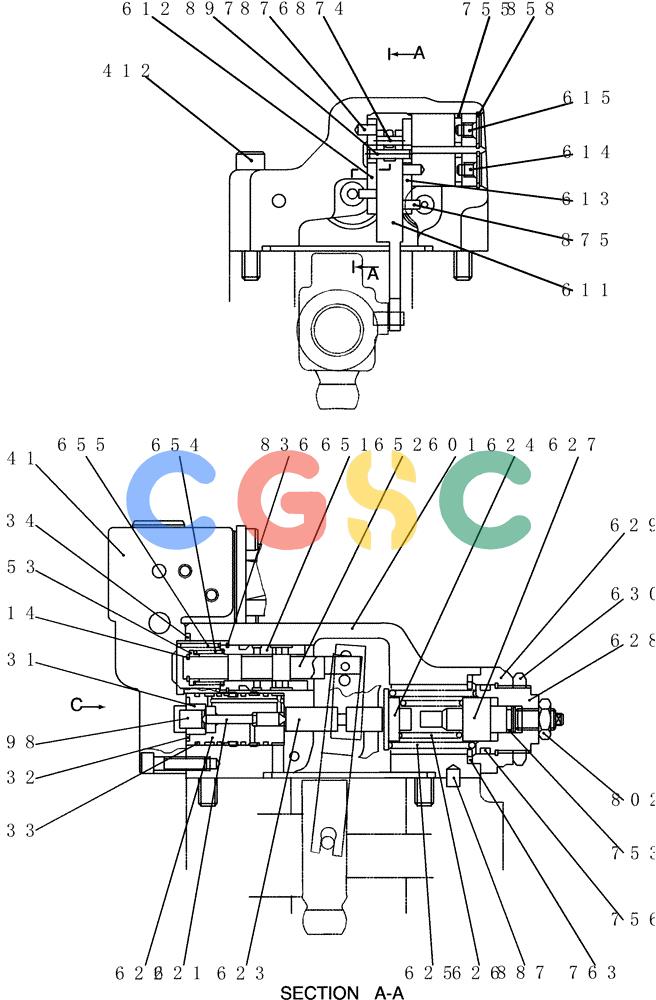

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (410-01[2]) - REGULATOR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
445 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN10V01009F1 | [1] | SPEED GOVERNOR | SMRegulator Assy Superseded by part number: YN10V01009F4 |
| 412. | ZS23C08050 | [2] | CAP,Hex Socket Head, M8 x 50mm | KOBScrew |
| 413. | ZS23C08070 | [2] | SCREW,Hex Socket Head, M8 x 70mm | KOBCap |
| 418. | YX35V00002S171 | [2] | SCREW,Hex Socket Head, M5 x 12mm | KOBCap Superseded by part number: ZS23C05012 |
| 438. | ZS28C06020 | [8] | SCREW,Hex Socket Head, M6 x 20mm | KOBCap |
| 439. | ZS23C06025 | [5] | SCREW,Hex Socket Head, M6 x 25mm | KOBCap |
| 466. | 2441U667S466 | [3] | PLUG | KOB |
| 496. | 2441U722S490 | [18] | PLUG | KOB |
| 541. | NSS | [2] | NOT SOLD SEPARAT | CONSeat |
| 543. | NSS | [2] | NOT SOLD SEPARAT | CONStopper |
| 545. | NSS | [2] | NOT SOLD SEPARAT | CONBall |
| 601. | NSS | [1] | NOT SOLD SEPARAT | CONCase |
| 611. | NSS | [1] | NOT SOLD SEPARAT | CONLever, Feedback |
| 612. | NSS | [1] | NOT SOLD SEPARAT | CONLever |
| 613. | NSS | [1] | NOT SOLD SEPARAT | CONLever |
| 614. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 615. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 621. | NSS | [1] | NOT SOLD SEPARAT | CONPiston |
| 622. | NSS | [1] | NOT SOLD SEPARAT | CONCase, Piston |
| 623. | NSS | [1] | NOT SOLD SEPARAT | CONRod |
| 624. | NSS | [1] | NOT SOLD SEPARAT | CONSeat, Spring |
| 625. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 626. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 627. | NSS | [1] | NOT SOLD SEPARAT | CONStem |
| 628. | NSS | [1] | NOT SOLD SEPARAT | CONScrew, Adjust |
| 629. | NSS | [1] | NOT SOLD SEPARAT | CONCover |
| 630. | NSS | [1] | NOT SOLD SEPARAT | CONNut |
| 631. | NSS | [1] | NOT SOLD SEPARAT | CONSleeve |
| 641. | NSS | [1] | NOT SOLD SEPARAT | CONCover, Pilot |
| 642. | NSS | [1] | NOT SOLD SEPARAT | CONRod |
| 643. | NSS | [1] | NOT SOLD SEPARAT | CONPiston, Pilot |
| 644. | NSS | [1] | NOT SOLD SEPARAT | CONSeat, Spring |
| 645. | NSS | [1] | NOT SOLD SEPARAT | CONStem |
| 646. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 651. | NSS | [1] | NOT SOLD SEPARAT | CONSleeve |
| 652. | NSS | [1] | NOT SOLD SEPARAT | CONSpool |
| 653. | NSS | [1] | NOT SOLD SEPARAT | CONSeat, Spring |
| 654. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 655. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 656. | NSS | [1] | NOT SOLD SEPARAT | CONCover |
| 662. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 708. | YX10V01001S010 | [1] | O-RING | KOB |
| 722. | YN10V01006S011 | [3] | O-RING | KOB |
| 724. | YX10V00003S015 | [8] | O-RING,1.9mm Thk x 8.8mm ID, 75 Duro | KOB |
| 725. | YN10V01006S013 | [1] | O-RING | KOB |
| 728. | YT10V00003S708 | [1] | O-RING | KOB |
| 730. | YZ10V00002S732 | [1] | O-RING | KOB |
| 732. | YW10V00003S732 | [1] | O-RING | KOB |
| 733. | YN10V01009S733 | [4] | O-RING | KOB |
| 734. | YN10V01006S019 | [1] | O-RING | KOB |
| 753. | YN10V01006S020 | [1] | O-RING | KOB |
| 755. | YT10V00003S710 | [7] | O-RING | KOB |
| 756. | YN10V01006S022 | [1] | O-RING | KOB |
| 757. | YX10V01001S015 | [1] | O-RING | KOB |
| 763. | YN10V00003S702 | [1] | O-RING | KOBO-ring |
| 801. | ZN18C08005 | [1] | NUT | KOB |
| 802. | NSS | [1] | NOT SOLD SEPARAT | CONNut |
| 814. | 2436U2455S814 | [1] | RING | KOBRetaining Superseded by part number: ZR16X01000 |
| 836. | NSS | [1] | NOT SOLD SEPARAT | CONRing, Retaining |
| 858. | ZR26X01500 | [2] | RING | KOBRetaining |
| 874. | NSS | [1] | NOT SOLD SEPARAT | CONPin |
| 875. | NSS | [2] | NOT SOLD SEPARAT | CONPin |
| 876. | NSS | [2] | NOT SOLD SEPARAT | CONPin |
| 887. | NSS | [1] | NOT SOLD SEPARAT | CONPin |
| 897. | NSS | [1] | NOT SOLD SEPARAT | CONPin |
| 898. | NSS | [1] | NOT SOLD SEPARAT | CONPin |
| 924. | 2441U722S924 | [1] | SET SCREW | KOBSet |
| K. | 2437U219S41 | [1] | REPAIR KIT | KOBConsists Of Item 541x1, 543x1, 545x1 |
