神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (455-01-1) - BOOM ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
378 次

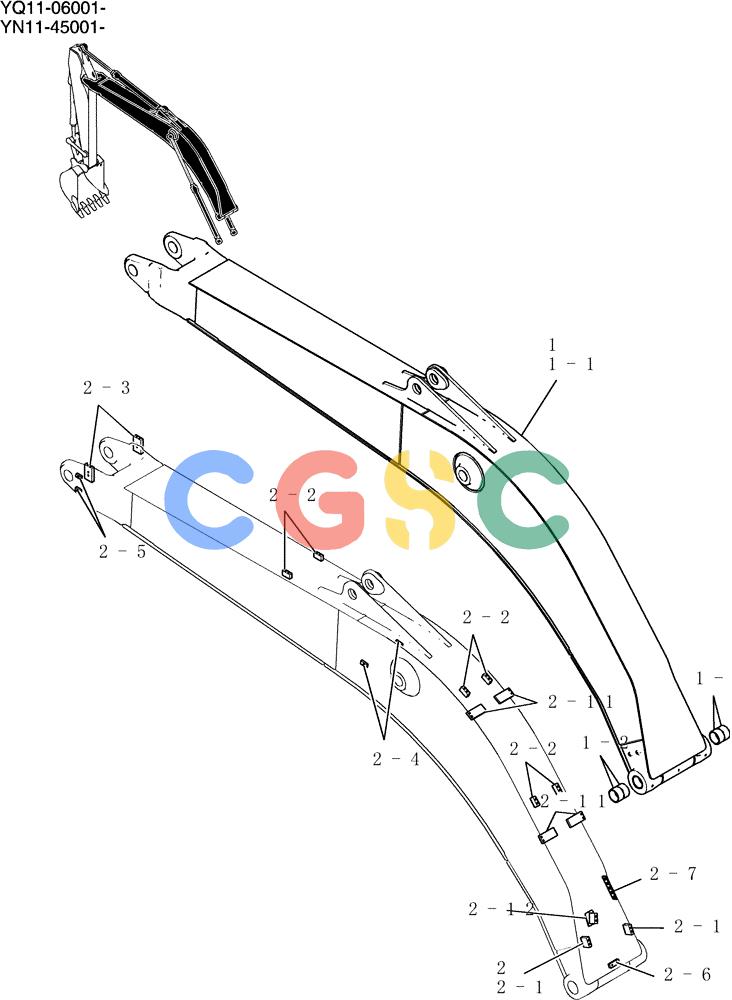

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN02B00404F1 | [1] | BOOM | KOBAssy, Hoe Superseded by part number: YN02B00578F1 |
| 1. | YN02B00389F1 | [1] | BOOM | KOBAssy, Hoe Superseded by part number: YN02B00578F1 |
| 1-1. | NSS | [1] | NOT SOLD SEPARAT | CONBoom, Hoe |
| 1-2. | LB01V01009P1 | [4] | BUSHING,90mm ID x 105mm OD x 54.5mm L | KOB |
| 2. | YN02B00390P1 | [1] | Hoe | |
| 2-1. | YN02B01616P1 | [2] | BLOCK | KOBTapped |
| 2-2. | YN02B01619P1 | [6] | BLOCK,M12 Thd Hole - 75mm L x 41mm W | KOBTapped |
| 2-3. | YN02B01622P1 | [2] | BLOCK,M12 Thd Hole - 25mm Thk x 75mm W x 125mm L | KOBTapped |
| 2-4. | 2416T9878 | [2] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOBTapped |
| 2-5. | 2416T13042 | [2] | BLOCK | KOBTapped |
| 2-6. | YT02B01059P1 | [1] | BLOCK | KOBTapped |
| 2-7. | 2418T22409 | [1] | PLATE | KOB |
| 2-11. | YN12B01882P1 | [4] | PIN | KOBBlock, Tapped |
| 2-12. | YN12B01878P1 | [1] | RING | KOBBracket |
