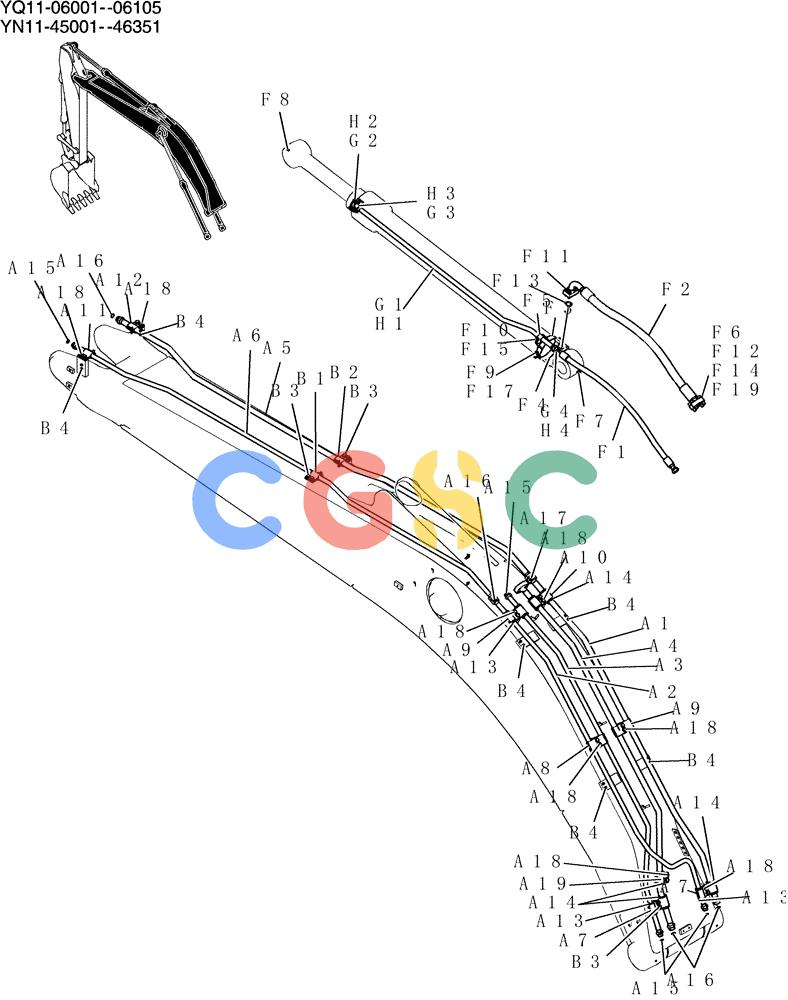

| . . | YN42H00328F1 | [1] | Hyd, Boom | |
| . . | YN42H00311F1 | [1] | Hyd, Boom | |
| A1. | YN42H02569P1 | [1] | TUBE,34.0 mm OD x 2271.4, 742.8 mm Length | KOB |
| A2. | YN42H02570P1 | [1] | TUBE,27.2 mm OD x 2271.4, 742.8 mm Length | KOB |
| A3. | YN42H02571P1 | [1] | TUBE,27.2 mm OD | KOB |
| . . | YN42H02665P1 | [1] | TUBE,34.0 mm OD | KOB |
| A5. | YN42H02573P1 | [1] | TUBE,34.0 mm OD | KOB |
| A6. | YN42H02574P1 | [1] | TUBE,27.2 mm OD | KOB |
| A7. | YN42H02348P1 | [4] | CLAMP | KOB |
| A8. | YN42H02349P1 | [2] | CLAMP | KOB |
| A9. | YN42H02351P1 | [4] | CLAMP | KOB Superseded by part number: 84528894 |
| A10. | YN42H02353P1 | [2] | CLAMP | KOB Superseded by part number: 47373433 |
| A11. | YN42H02355P1 | [2] | CLAMP | KOB Superseded by part number: 84528898 |
| A12. | YN42H02357P1 | [2] | CLAMP,37mm ID, J Type | KOB Superseded by part number: 84528832 |
| A13. | YN42H02319P1 | [4] | BUSHING,27.2mm ID x 34mm OD x 83mm L | SM Superseded by part number: 84354627 |
| A14. | YN43H01524P1 | [5] | BUSHING,34mm ID x 53mm OD x 83mm L | KOB Superseded by part number: 84354629 |
| A15. | ZD12A01800 | [4] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| A16. | ZD12A02100 | [4] | O-RING | KOB |
| A17. | YY42H01313P1 | [1] | O-RING,29.87mm ID x 33.43mm OD x 1.78mm | KOB |
| A18. | ZM73C12035 | [16] | BOLT,M12x35mm - Course Thread | KOBSems |
| A19. | YN42H02363P1 | [2] | CLAMP,46mm ID, J Type | KOB |
| . . | YN42H00293F1 | [1] | Hyd, Boom | |
| B1. | YN42H02355P1 | [2] | CLAMP | KOB Superseded by part number: 84528898 |
| B2. | YN42H02357P1 | [2] | CLAMP,37mm ID, J Type | KOB Superseded by part number: 84528832 |
| B3. | ZM73C12035 | [6] | BOLT,M12x35mm - Course Thread | KOBSems |
| B4. | PV02B01073D3 | [12] | CAP | KOB Superseded by part number: YN64H01391D1 |
| . . | YN42H00352F1 | [1] | Hyd, Cylinder | |
| . . | YN42H00298F1 | [1] | Hyd, Cylinder | |
| C1. | YN42H02341P1 | [1] | TUBE | KOB |
| C2. | ZX20H10072 | [2] | HOSE | KOB |
| C3. | ZX20H16078 | [2] | HOSE | KOB |
| C4. | YN42H02615P1 | [2] | BAND | KOB |
| C5. | YX42H01074P2 | [2] | BAND | KOB |
| C6. | YY42H01184P1 | [2] | CLAMP | KOB |
| C7. | ZH22Z04000 | [2] | HYD CONNECTOR | KOB |
| C8. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| C9. | ZD12P02600 | [1] | O-RING | KOB |
| C10. | ZD12A01600 | [1] | O-RING | KOB |
| C11. | ZS18C10030 | [4] | SCREW,Hex, M10 x 30mm | KOBCap |
| C12. | ZS18C12065 | [2] | SCREW,Hex, M12 x 65mm | KOBCap |
| C13. | ZS28C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBCap |
| C14. | ZW26X10000 | [4] | LOCK WASHER | KOB |
| C15. | ZW16H12000 | [2] | WASHER | KOB |
| . . | YN42H00331F1 | [1] | KIT | KOBHyd, Cylinder |
| D1. | YN42H02342P1 | [1] | TUBE,21.7 mm OD x 1211, 244 mm Length | KOB |
| D2. | ZD12P02600 | [1] | O-RING | KOB |
| D3. | ZD12A01600 | [1] | O-RING | KOB |
| D4. | ZS28C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBCap |
| . . | YN42H00300F1 | [1] | Hyd, Cylinder | |
| E1. | YN42H02618P1 | [1] | TUBE | KOB |
| E2. | YN42H02619P1 | [1] | TUBE,34.0 mm OD | KOB |
| E3. | HX20L04110DX | [1] | HOSE,6.3mm ID x 1100mm L | KOB |
| E4. | 2420R537D105 | [1] | HOSE,9.53mm ID x 1050mm L | KOB |
| E5. | 2420R537D110 | [1] | HOSE ASSY.,9.60mm ID x 1100mm L | KOB Superseded by part number: HX21E06110DX |
| E6. | YN28V00019F1 | [2] | VALVE | KOBAssy, Holding Superseded by part number: YN28V00023F1 |
| E7. | ZH22X06000 | [2] | HYD CONNECTOR | KOB |
| E8. | HG23F04004G1 | [2] | HYD CONNECTOR | KOB |
| E9. | ZH32X06000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow |
| E10. | HH35X06006G3 | [2] | ELBOW | KOB |
| E11. | 2444Z3155 | [2] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB Superseded by part number: YT42H01128P1 |
| E12. | HH55Q06006G1 | [2] | TEE | KOB |
| E13. | ZD12P03400 | [4] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| E14. | ZD12A02100 | [2] | O-RING | KOB |
| E15. | YY42H01330P1 | [2] | O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro | KOB |
| E17. | ZS28C12040 | [8] | SCREW,Hex Socket Head, M12 x 40mm | KOBCap |
| E18. | ZS28C12075 | [8] | SCREW,Hex Socket Head, M12 x 75mm | KOBCap |
| E19. | ZW26K12000 | [8] | LOCK WASHER | KOB |
| E20. | PY01P01043D3 | [8] | CABLE TIE,188mm L | KOB |
| . . | YN42H00336F1 | [1] | Hyd, Cylinder | |
| . . | YN42H00348F1 | [1] | Hyd, Cylinder (HD) | |
| . . | YN42H00297F1 | [1] | KIT | KOBHyd, Cylinder |
| F1. | ZX20H12115 | [1] | HOSE | KOB |
| F2. | YN42H02683D1 | [1] | HOSE | KOB |
| F3. | YN42H02628P1 | [1] | BAND | KOB |
| F4. | LC42H01750P1 | [1] | BAND | KOB Superseded by part number: LC42H02088P1 |
| F5. | YN43H01097P1 | [1] | CLAMP | KOB |
| F6. | ZE13X20001 | [2] | CLAMP | KOBHalf Superseded by part number: ZE13X20000 |
| F7. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB |
| F8. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| F9. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBCap |
| F10. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBCap |
| F11. | ZS28C12040 | [4] | SCREW,Hex Socket Head, M12 x 40mm | KOBCap |
| F12. | ZS28C14050 | [4] | CAPSCREW,Hex Socket Head, M14 x 50mm | KOBSCREW Cap |
| F13. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| F14. | ZD12P03800 | [1] | O-RING | KOB |
| F15. | ZW16H12000 | [1] | WASHER | KOB |
| F17. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| . . | YN42H00337F1 | [1] | Hyd, Cylinder | |
| G1. | YN42H02333P1 | [1] | TUBE,27.2 mm OD x 1817.5, 62 mm Length | KOB |
| G2. | ZS28C12040 | [4] | SCREW,Hex Socket Head, M12 x 40mm | KOBCap |
| G3. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| G4. | ZD12A01800 | [1] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| . . | YN42H00349F1 | [1] | Hyd, Cylinder (hd) | |
| H1. | YN42H02643P1 | [1] | HYD TUBE | KOB |
| H2. | ZS28C12040 | [4] | SCREW,Hex Socket Head, M12 x 40mm | KOBCap |
| H3. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| H4. | ZD12A01800 | [1] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
