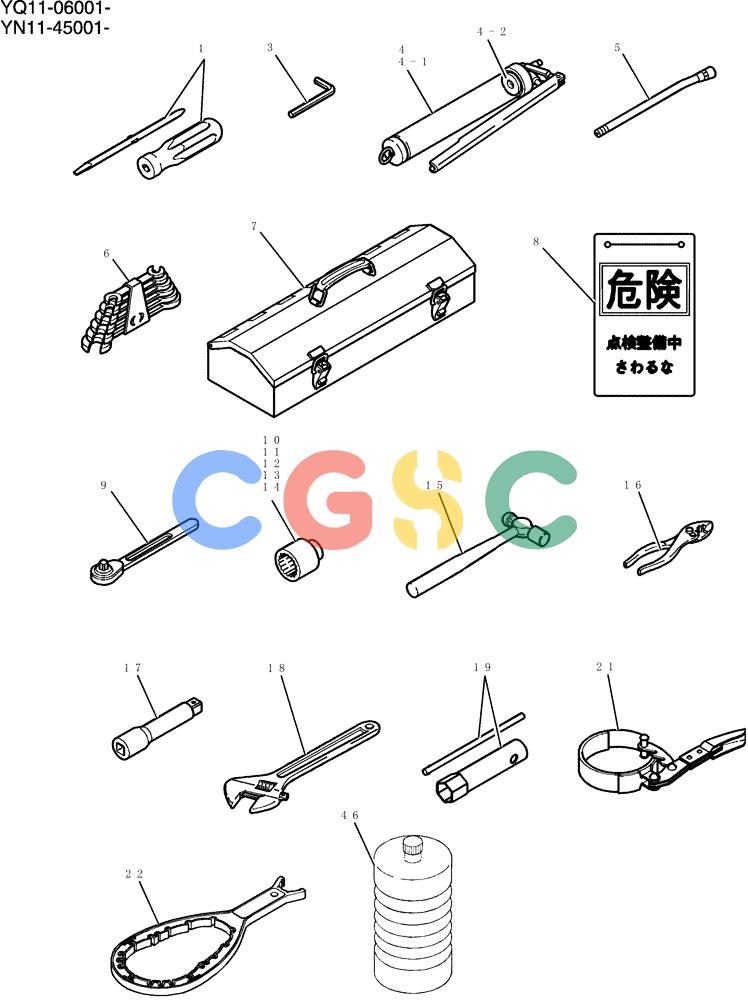

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (676-01-1) - TOOL & ACCESSORY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
380 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01T00151F1 | [1] | TOOL KIT | KOBTool & Accessory |
| 1. | 2421Z294 | [1] | BLOCK DRIVER | KOBDRIVER Driver |
| 3. | ZT22A05000 | [1] | KEY | KOBScrew |
| 4. | YT01T01007F1 | [1] | GREASE GUN | KOB Superseded by part number: YT01T01009F1 |
| 4-1. | 2421R145 | [1] | GREASE GUN | KOB Superseded by part number: YT01T01009F1 |
| 4-2. | PW01T01008P1 | [1] | SEAL | KOB |
| 5. | 2421R140 | [1] | NOZZLE | KOB |
| 6. | 2421Z296 | [1] | ADJUSTING WRENCH | KOBSpanner Set [ (1 SET) ] |
| 7. | 2414T4185 | [1] | TOOL BOX | KOB |
| 8. | YN20T01261P1 | [1] | LABEL | KOB |
| 9. | 2406R527 | [1] | HANDLE | KOBRatchet |
| 10. | 2408R587D1 | [1] | SOCKET | KOB |
| 11. | 2408R587D2 | [1] | SOCKET | KOB |
| 12. | 2408R587D3 | [1] | SOCKET | KOB |
| 13. | 2408R587D4 | [1] | SOCKET | KOB |
| 14. | 2408R587D5 | [1] | SOCKET | KOB |
| 15. | 2421R397 | [1] | HAMMER | KOB |
| 16. | 2421R392 | [1] | TOOL | KOBPlier |
| 17. | 2406Z623D4 | [1] | BAR | KOBExtension |
| 18. | 2421R394 | [1] | TOOL | KOBWrench, Adjust |
| 19. | 2421R398 | [1] | ADJUSTING WRENCH | KOBPipe |
| 21. | 2421R171 | [1] | GENERAL TOOL | KOBWrench |
| 22. | YN01T01044P1 | [1] | ADJUSTING WRENCH | KOBFilter |
| 46. | 2421Z183 | [1] | GREASE | KOB |
