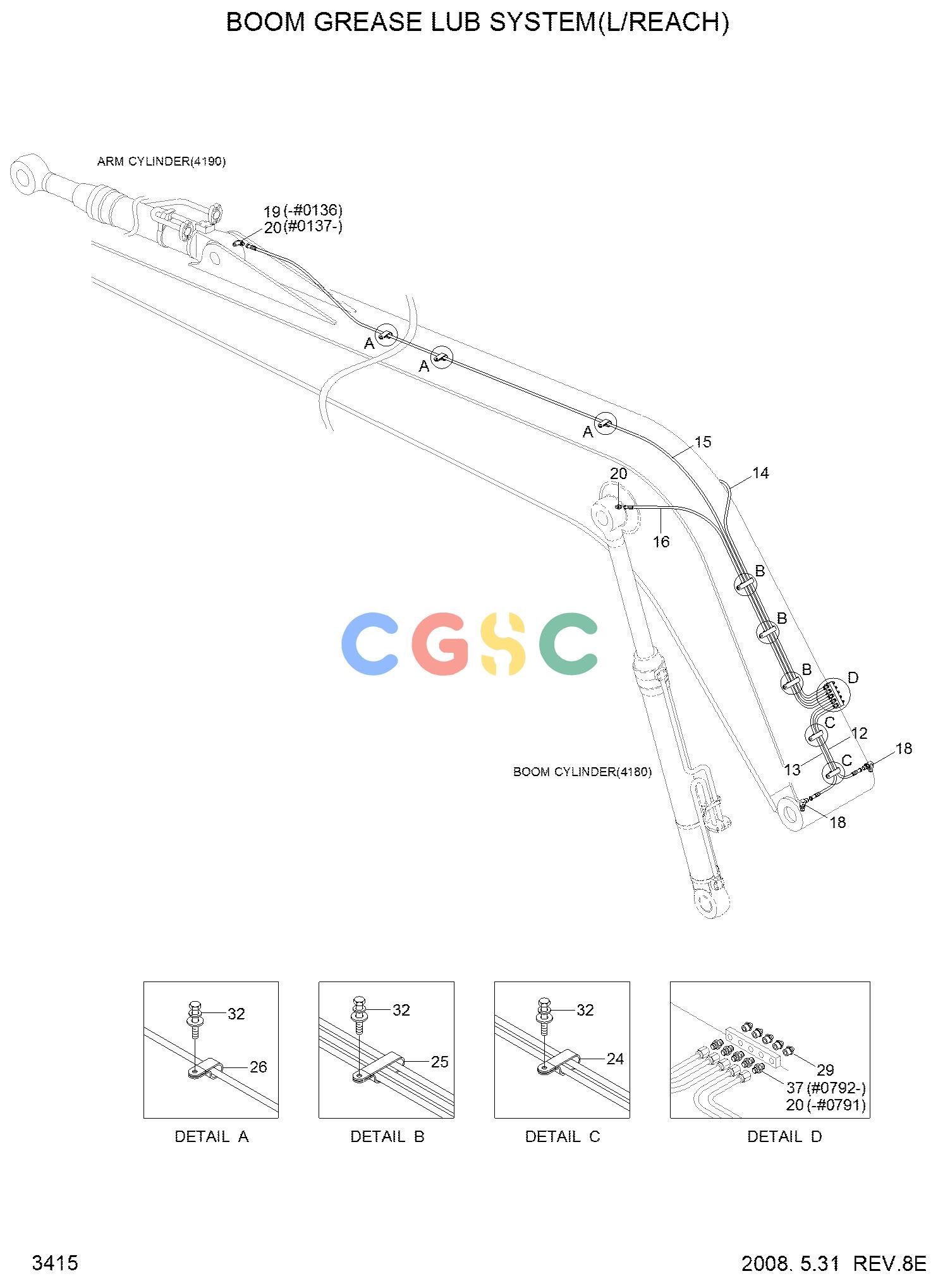

现代零件查询R210LC-7(#98001-) BOOM GREASE LUB SYSTEM(LONG REACH)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
695 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
P840-042019
|
[1] |
HOSE ASSY-SYN THD
|
|
| 11. |
P840-042020
|
[1] |
HOSE ASSY-SYN THD
|
|
| 12. |
P840-042047
|
[1] |
HOSE ASSY-SYN THD
|
|
| 13. |
P840-042108
|
[1] |
HOSE ASSY-SYN THD
|
|
| 14. |
P840-042045
|
[1] |
HOSE ASSY-SYN THD
|
|
| 21. |
31NB-50280
|
[2] |
CONNECTOR
|
|
| 24. |
P010-430011
|
[7] |
CONNECTOR
|
|
| 25. |
E231-0207
|
[1] |
ELBOW-45
|
|
| 30. |
31N8-50380
|
[2] |
CLAMP-HOSE
|
|
| 31. |
31N8-50390
|
[3] |
CLAMP-HOSE
|
|
| 32. |
31N8-50370
|
[2] |
CLAMP-HOSE
|
|
| 37. |
S035-062022
|
[7] |
BOLT-W/WASHER
|
|
| 41. |
S651-810003
|
[7] |
NIPPLE-GREASE
|
|
