神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (748-02-1) - CAB & GUARD ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
702 次

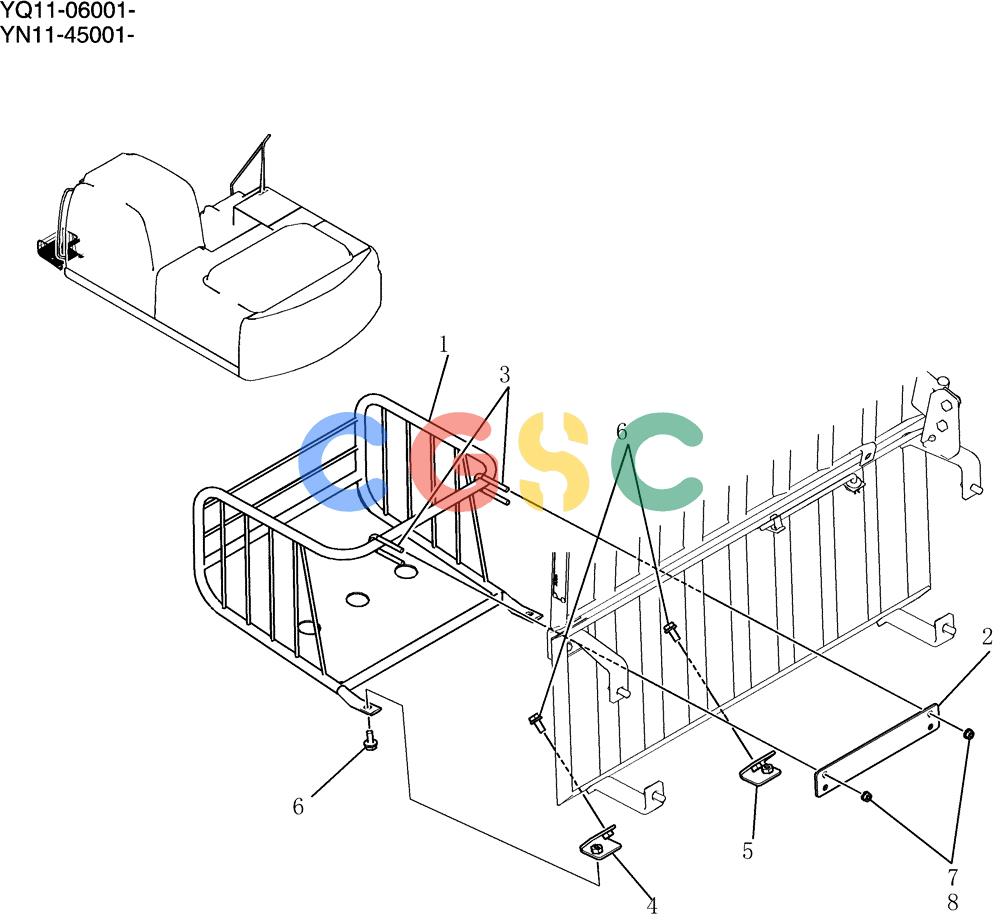

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01C00023F1 | [1] | | |
| . . | YN02C03916F1 | [1] | ACCESSORIES | KOB |
| 1. | YN02C01922P1 | [1] | BOX | KOB |
| 2. | YN02C03917P1 | [1] | PLATE | KOB |
| 3. | YN02C03918P1 | [2] | U-BOLT | KOBU |
| 4. | YN02C03919P1 | [1] | PLATE | KOB |
| 5. | YN02C03920P1 | [1] | PLATE | KOB |
| 6. | ZM73C10025 | [4] | BOLT,M10x25mm - Course Thread | KOBSems |
| 7. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOB |
| 8. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
