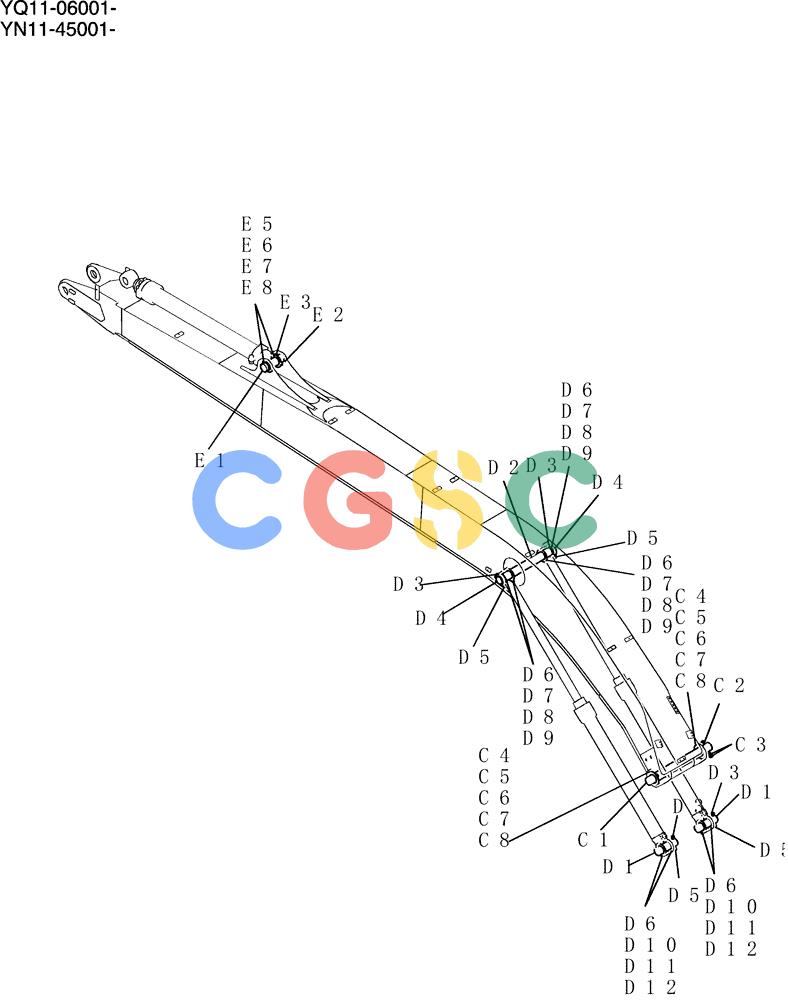

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (843-01-2) - BOOM GROUP, 8.75M (28FT 9IN) (50FT LONG RANGE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
900 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN02B00405F1 | [1] | BOOM | KOBInstal |
| 01. | YN01V00151F1 | [2] | CYLINDER | KOBAssy, Boom, Serial Range: YQ11-06001-YQ11-06505 Superseded by part number: YN01V00151F2 |
| . . | YN01V00151F2 | [2] | CYLINDER,Double Acting, 85mm Rod, 1355mm Stroke | KOBAssy, Boom, Start Serial: YQ11-06506 |
| . . | YN02B00364F1 | [1] | Instal | |
| D1. | YN02B01720P1 | [2] | PIN,85mm OD x 258mm L | KOB |
| D2. | YN02B01721P1 | [1] | PIN,85mm OD x 776mm L | KOB |
| D3. | HS18C16150G2 | [4] | SCREW | KOBCap |
| D4. | YN02B01108P1 | [2] | BOSS | KOB Superseded by part number: 72953989 |
| D5. | ZN18C16013 | [8] | NUT | KOB |
| D6. | YN02B01417D1 | [6] | SHIM,87mm ID x 140mm OD x 2mm Thk | KOB(2.0) |
| D7. | YN02B01109D1 | [1] | SHIM,87mm ID x 120mm OD x 0.5mm Thk | KOB(0.5) |
| D8. | YN02B01109D2 | [1] | SHIM,87mm ID x 120mm OD x 0.9mm Thk | KOB(0.9) |
| D9. | YN02B01109D4 | [1] | SHIM,87mm ID x 120mm OD x 1.6mm Thk | KOB(1.6) |
| D10. | B16T0442D78 | [1] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOB(0.5) |
| D11. | B16T0442D77 | [1] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOB(0.9) |
| D12. | B16T0442D62 | [1] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOB(1.6) |
| . . | YN02B00477F1 | [1] | Instal | |
| 02. | YN01V00132F4 | [1] | HYDRAULIC CYLINDER | KOBAssy, Arm |
| . . | YN02B00244F1 | [1] | Instal | |
| E1. | YN02B01466P1 | [1] | PIN,85mm OD x 280mm L | KOB |
| E2. | HS18C16150G2 | [1] | SCREW | KOBCap |
| E3. | ZN18C16013 | [2] | NUT | KOB |
| E5. | B16T0442D78 | [1] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOB(0.5) |
| E6. | B16T0442D77 | [1] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOB(0.9) |
| E7. | B16T0442D62 | [1] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOB(1.6) |
| E8. | YN02B01417D1 | [2] | SHIM,87mm ID x 140mm OD x 2mm Thk | KOB(2.0) |
