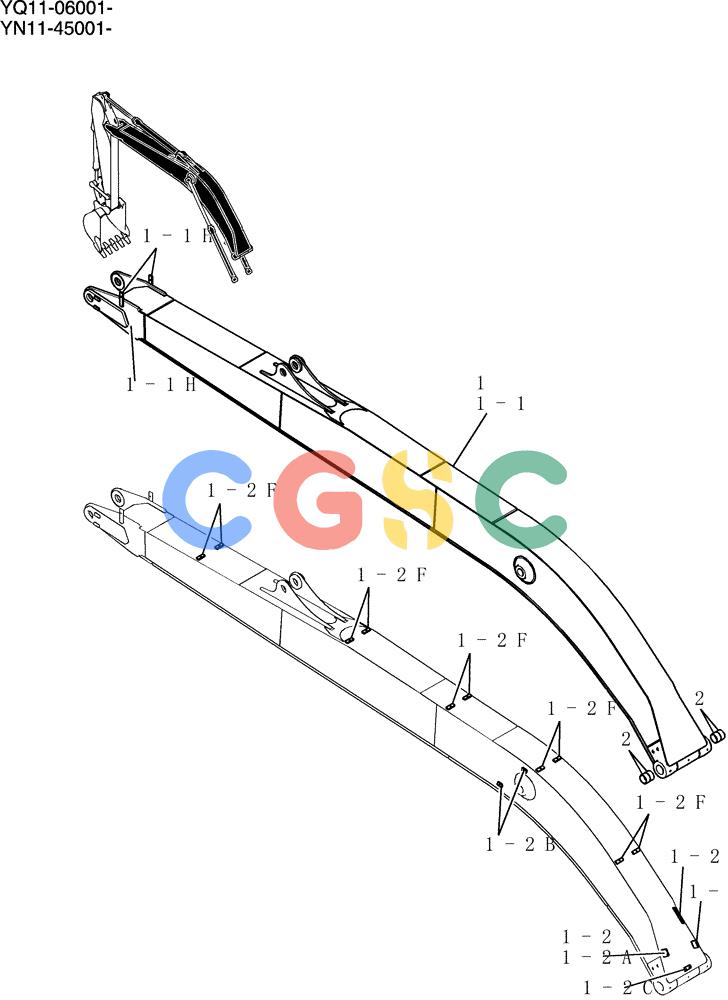

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (846-01-1) - BOOM ASSY, 8.75M (28FT 9IN) (50FT LONG RANGE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
806 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN02B00418F1 | [1] | BOOM | KOBHoe |
| 1. | YN02B00419F1 | [1] | Hoe | |
| 1-1. | NSS | [1] | NOT SOLD SEPARAT | CONBoom, Hoe |
| 1-1H. | YN02B01908P1 | [1] | | |
| 1-1Hg. | 2416T13274D2 | [2] | BLOCK | KOBTapped |
| 1-2. | YN02B00417P1 | [1] | Hoe | |
| 1-2A. | YN02B01616P1 | [2] | BLOCK | KOBTapped |
| 1-2B. | 2416T9878 | [2] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOBTapped |
| 1-2C. | YT02B01059P1 | [1] | BLOCK | KOBTapped |
| 1-2D. | 2418T22409 | [1] | PLATE | KOB |
| 1-2F. | 2416T21120D2 | [10] | BLOCK | KOBTapped |
| 2. | LB01V01009P1 | [4] | BUSHING,90mm ID x 105mm OD x 54.5mm L | KOB |
