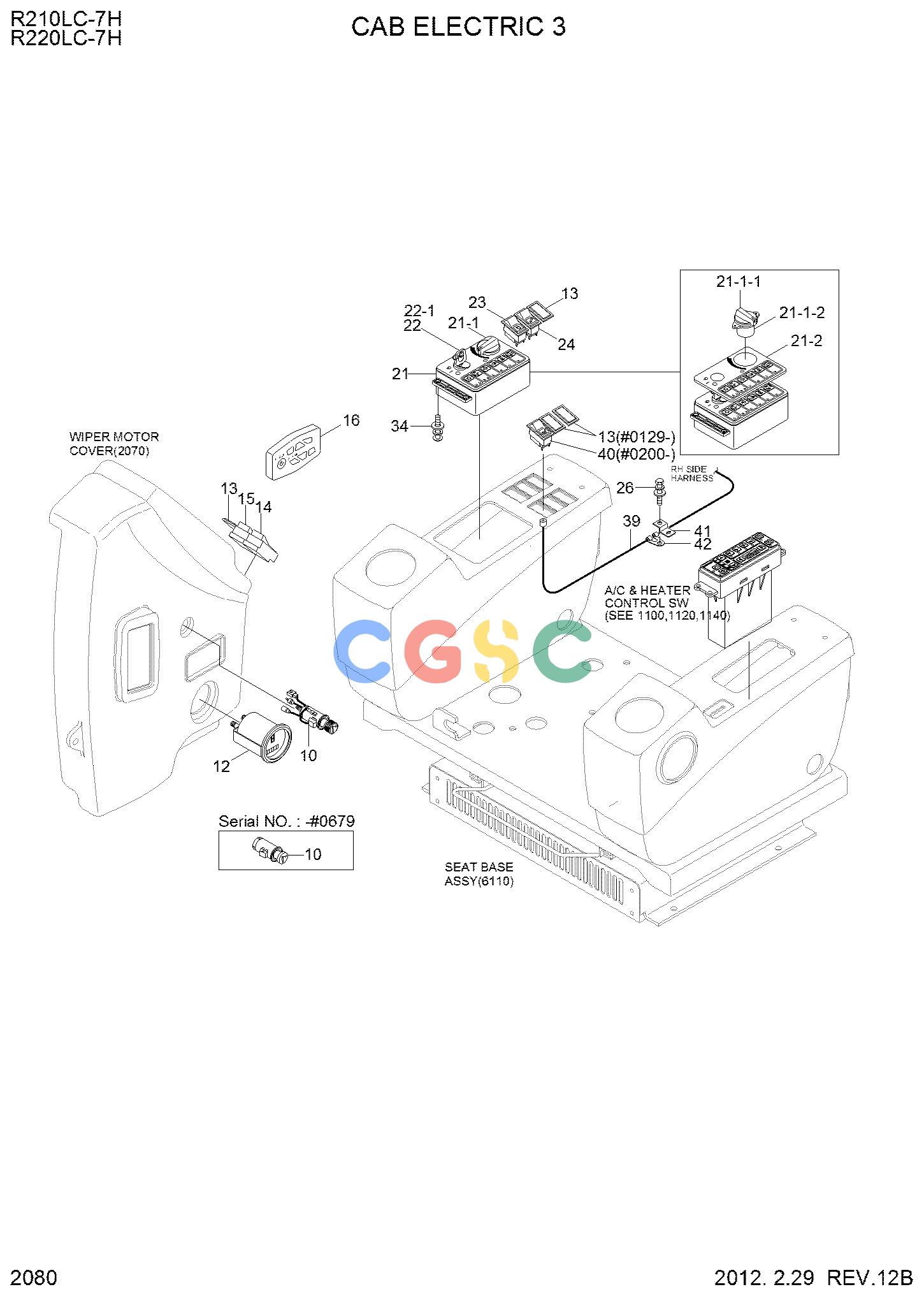

现代零件查询R210LC-7(#98001-) CAB ELECTRIC 3EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
1004 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
21E4-0008
|
[1] |
LIGHTER-CIGAR
|
|
| 12. |
21N4-11070
|
[1] |
HOUR METER ASSY
|
|
| 13. |
21E6-10460
|
[6] |
COVER
|
|
| 14. |
21E6-40130
|
[1] |
SWITCH-OVER LOAD
|
|
| 15. |
21E9-20110
|
[1] |
SW-QUICK CLAMP
|
|
| 16. |
21N8-40910
|
[1] |
SW-REMOTE CONTROL
|
|
| 21. |
21N8-20505
|
[1] |
SWITCH-MEMBRANE
|
|
| 21-1. |
21N8-20901
|
[1] |
ACCEL DIAL ASSY
|
|
| 21-1-1. |
21N8-20941
|
[1] |
KNOB
|
|
| 21-1-2. |
21N8-20911
|
[1] |
POTENTION METER
|
|
| 21-2. |
21N8-20523
|
[1] |
DECAL
|
|
| 22. |
21N4-10400
|
[1] |
SWITCH ASSY-INCL KEY
|
|
| 22-1. |
21N4-10400K
|
[1] |
KEY-START
|
|
| 23. |
21E6-30440
|
[1] |
SWITCH-BEACON
|
|
| 24. |
21E6-30540
|
[1] |
SWITCH-BREAKER
|
|
| 34. |
S131-051546
|
[4] |
SCREW-W/WASHER
|
|
