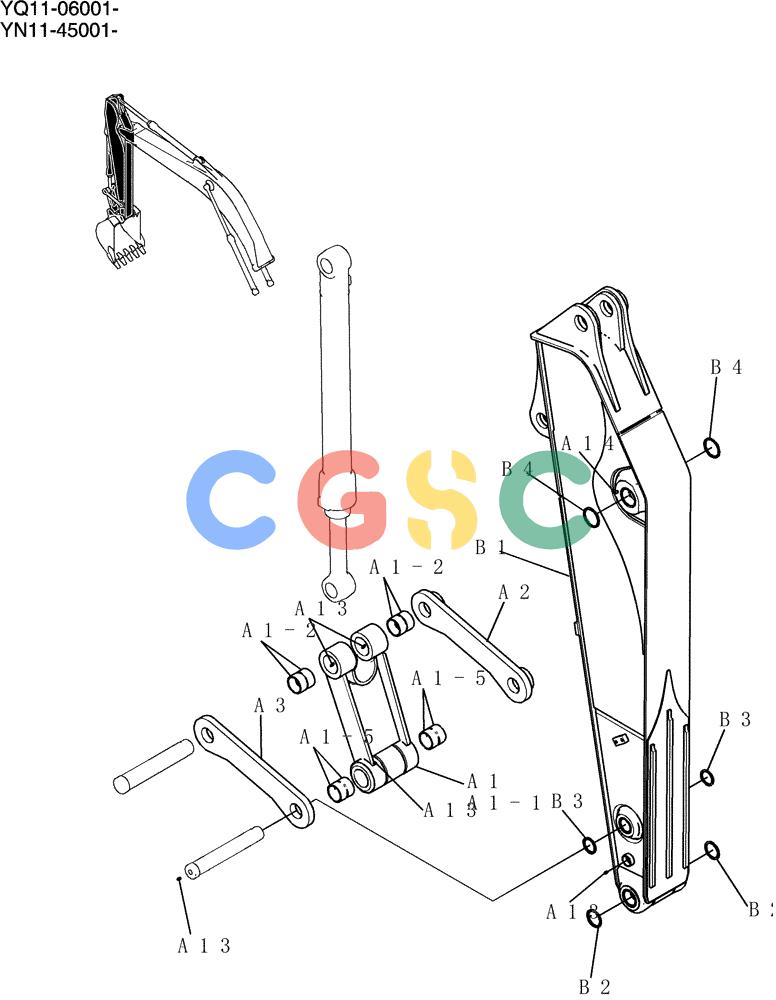

| . . | YN12B00760F1 | [1] | Group | |
| A1. | YN12B02175F1 | [1] | LINK | KOBAssy, Bucket Superseded by part number: YN12B11101F1 |
| A1-1. | NSS | [1] | NOT SOLD SEPARAT | CONLink, Bucket |
| A1-2. | YN12B02221P1 | [4] | BUSHING,80mm ID x 95mm OD x 47mm L | KOB |
| A1-5. | LC12B01499P1 | [2] | BUSHING,80mm ID x 95mm OD x 89mm L | KOB |
| A2. | YN12B02380P1 | [1] | LINK | KOB |
| A3. | YN12B02423P1 | [1] | LINK | KOB |
| A4. | YN12B02215P1 | [2] | PIN,80mm OD x 561mm L | KOB Superseded by part number: YN12B11170P1 |
| A5. | YN12B02177P1 | [1] | PIN | KOB |
| A6. | YN12B02178P1 | [1] | PIN | KOB |
| A7. | HS18C16130G2 | [1] | BOLT,Hex, M16 x 130mm, Cl 10.9 | KOBCap |
| A8. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOBCap |
| A9. | ZN18C16013 | [4] | NUT | KOB |
| A10. | 2445R220D4 | [6] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust Superseded by part number: 84499640 |
| A13. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| A14. | ZG91S04000 | [1] | LUBE NIPPLE | KOB |
| A15. | B16T0442D57 | [1] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOB(0.5) |
| A16. | B16T0442D44 | [1] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOB(0.9) |
| A17. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOB(1.6) |
| A18. | YN12B01122D1 | [2] | SHIM,82mm ID x 140mm OD x 0.5mm Thk | KOB(0.5) |
| A19. | YN12B01122D2 | [2] | SHIM,82mm ID x 140mm OD x 0.9mm Thk | KOB(0.9) |
| A20. | YN12B01122D3 | [2] | SHIM,82mm ID x 140mm OD x 1.6mm Thk | KOB(1.6) |
| A21. | YN12B01601D1 | [4] | SHIM,82mm ID x 140mm OD x 2mm Thk | KOB(2.0) |
| A22. | YN12B01602D1 | [2] | SHIM,72mm ID x 130mm OD x 2mm Thk | KOB(2.0) |
| . . | YN12B00939F1 | [1] | Arm, Short | |
| B1. | YN12B00940F1 | [1] | ARM | KOBArm, Short (See Fig no 865-01-1) |
| B2. | 2445R220D4 | [2] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust Superseded by part number: 84499640 |
| B3. | 2445R220D3 | [2] | SEAL,70mm ID x 85mm OD x 5mm Thk | KOBDust |
| B4. | 2445R138D8 | [2] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBDust |
| . . | YN12B00737F1 | [1] | Instal (Arm Foot Pin) YQ11-06001 to YQ-11 06562 | |
| . . | YN12B00914F1 | [1] | Instal (Arm Foot Pin), Start Serial: YQ11-06563 | |
| C1. | YN12B02094P1 | [1] | PIN | KOBYQ11-06001 to YQ-11 06562 Superseded by part number: YN12B02415P1 |
| . . | YN12B02415P1 | [1] | PIN,90mm OD x 519mm L | KOB, Start Serial: YQ11-06563 |
| C2. | YN02B01414D1 | [2] | SHIM,92mm ID x 160mm OD x 2mm Thk | KOB(2.0) |
| C3. | B16T0442D53 | [1] | SHIM,92mm ID x 160mm OD x 0.5mm Thk | KOB(0.5) |
| C4. | B16T0442D40 | [1] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOB(0.9) |
| . . | YN12B00811F1 | [1] | Instal (Arm Cyl Rod Pin) | |
| D1. | YN02B01722P1 | [1] | PIN,85mm OD x 277mm L | KOB |
| D2. | HS18C16150G2 | [1] | SCREW | KOBCAP |
| D3. | ZN18C16013 | [2] | NUT | KOB |
| D4. | YN02B01415D1 | [2] | SHIM,87mm ID x 150mm OD x 2mm Thk | KOB(2.0) |
| D5. | B16T0442D78 | [1] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOB(0.5) |
| D6. | B16T0442D77 | [1] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOB(0.9) |
| D7. | B16T0442D62 | [1] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOB(1.6) |
