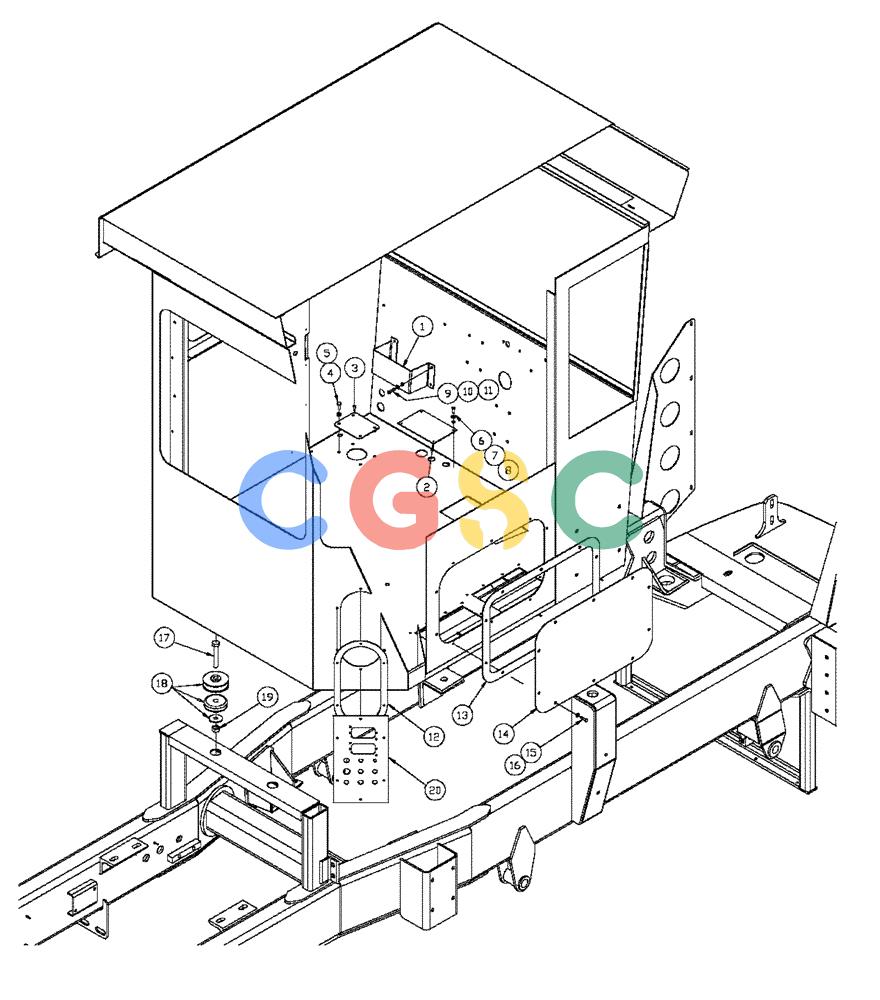

凯斯零件查询(4375) - TITAN FLOATER (5/98-8/99) (01-007) - CAB AND PANEL MOUNTING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
829 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN7142499
|
[1] |
SHEET
|
BN
Kick Plate
|
| 2. |
BN306551
|
[1] |
PLATE
|
BN
Cover
|
| 3. |
BN7146086
|
[1] |
SHEET
|
BN
Cover Plate Auxiliary
|
| 4. |
BN1913308C
|
[4] |
HH 5/16-18 X 3/4 NC
|
|
| 5. |
BN1470403C
|
[4] |
FLANGE NUT
|
BN
5/16-18, FLN, G8 Superseded by part number: 231-4145
|
| 6. |
BN50212
|
[2] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 7. |
BN50138
|
[2] |
WASHER,1/4", SS
|
BN
|
| 8. |
BN2294431
|
[2] |
SET SCREW,1/4" - 20
|
BN
1/4-20, FLN, SS
|
| 9. |
BN2403255
|
[4] |
BOLT
|
BN
HH 1/4-20 X 1 NC Superseded by part number: 413-416
|
| 10. |
80682
|
[4] |
LOCK WASHER,1/4"
|
PA
|
| 11. |
BN1470002
|
[4] |
NUT
|
BN
1/4-20, HH, G5 Superseded by part number: 280129
|
| 12. |
BN2390723
|
[1] |
GASKET
|
BN
Panel
|
| 13. |
BN2390722
|
[1] |
GASKET
|
BN
Panel
|
| 14. |
BN7142152
|
[1] |
SHEET
|
TYR
Cover Plate Side
|
| 15. |
BN2403261
|
[16] |
BOLT
|
BN
HH 1/4-20 X 1 SS
|
| 16. |
BN2392389
|
[16] |
WASHER
|
BN
Flat 1/4 SS
|
| 17. |
BN302765
|
[4] |
BOLT
|
BN
M16-2 X 100, HH, 10.9 Superseded by part number: 86541970
|
| 18. |
BN2291320
|
[4] |
CUSHION
|
BN
3910274
|
| 18A. |
BN306746
|
[1] |
Cab Mount
|
|
| 18B. |
BN306747
|
[1] |
Cab Mount
|
|
| 18C. |
BN306748
|
[1] |
Cab Mount
|
|
| 19. |
832-46416
|
[4] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
| 20. |
BN8196071
|
[1] |
PANEL
|
BN
(Chassis Only)
|
