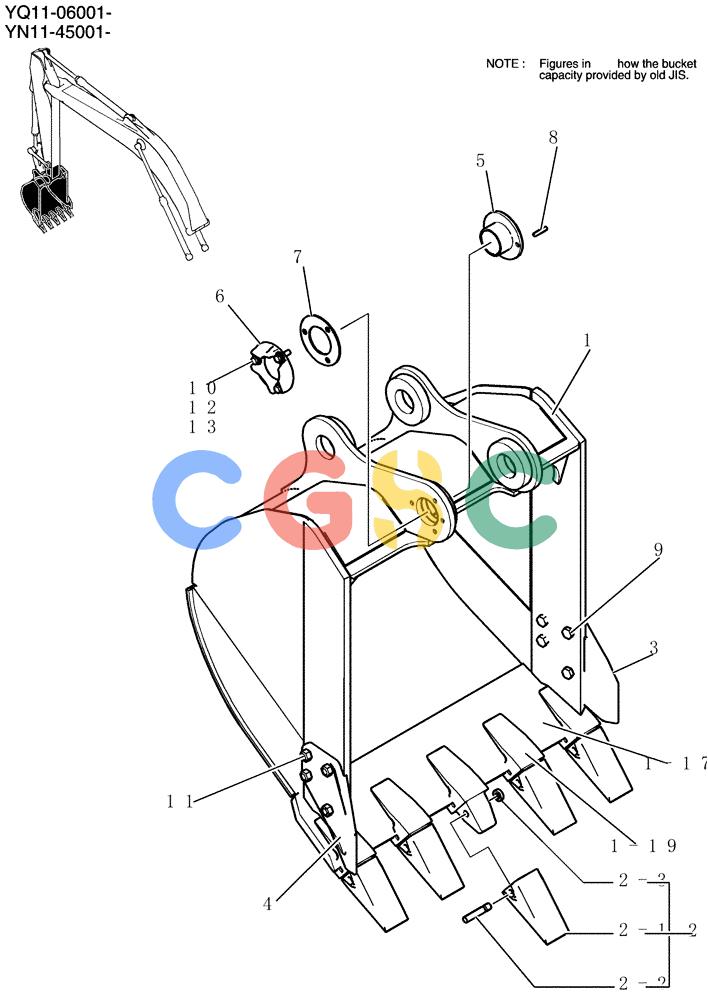

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (945-02-1) - BUCKET ASSY, 0. 8M3 (HD, SIDE PIN TOOTH) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
424 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN61B00324F1 | [1] | 0.8m3 | |
| . . | YN61B00325F1 | [1] | BUCKET | KOB0.8m3 |
| 1. | YN61B00326P1 | [1] | BUCKET | KOB Superseded by part number: YN61B00325F1 |
| 1-17. | 2412P627D1 | [1] | CUTTING BLADE | KOBCutting |
| 1-19. | LQ61B01002P1 | [4] | ADAPTER | KOB |
| 2. | LQ61B01003F1 | [4] | TEETH | KOB |
| 2-1. | LQ61B01003S001 | [1] | TOOTH | KOB |
| 2-2. | LQ61B01003S002 | [1] | PIN | KOB |
| 2-3. | LQ61B01003S003 | [1] | SPRING | KOB |
| 3. | 2412J351D1 | [1] | BLADE | KOBCutter, Side |
| 4. | 2412J351D2 | [1] | BLADE | KOBCutter, Side |
| 5. | YB61B01003P1 | [1] | BUSHING | KOB |
| 6. | YB61B01005P1 | [1] | PLATE | KOB |
| 7. | YB61B01004P1 | [5] | SHIM | KOB(1.0) |
| 8. | 2419T3747D2 | [1] | PIN | KOB |
| 9. | ZS13C24065 | [10] | SCREW | KOBCap |
| 10. | ZS13C16050 | [3] | SCREW | KOBCap |
| 11. | ZN13C24019 | [10] | NUT | KOB |
| 12. | ZW22X16000 | [3] | WASHER, LOCK | KOB |
| 13. | YB61B01007P1 | [3] | WASHER | KOB |
