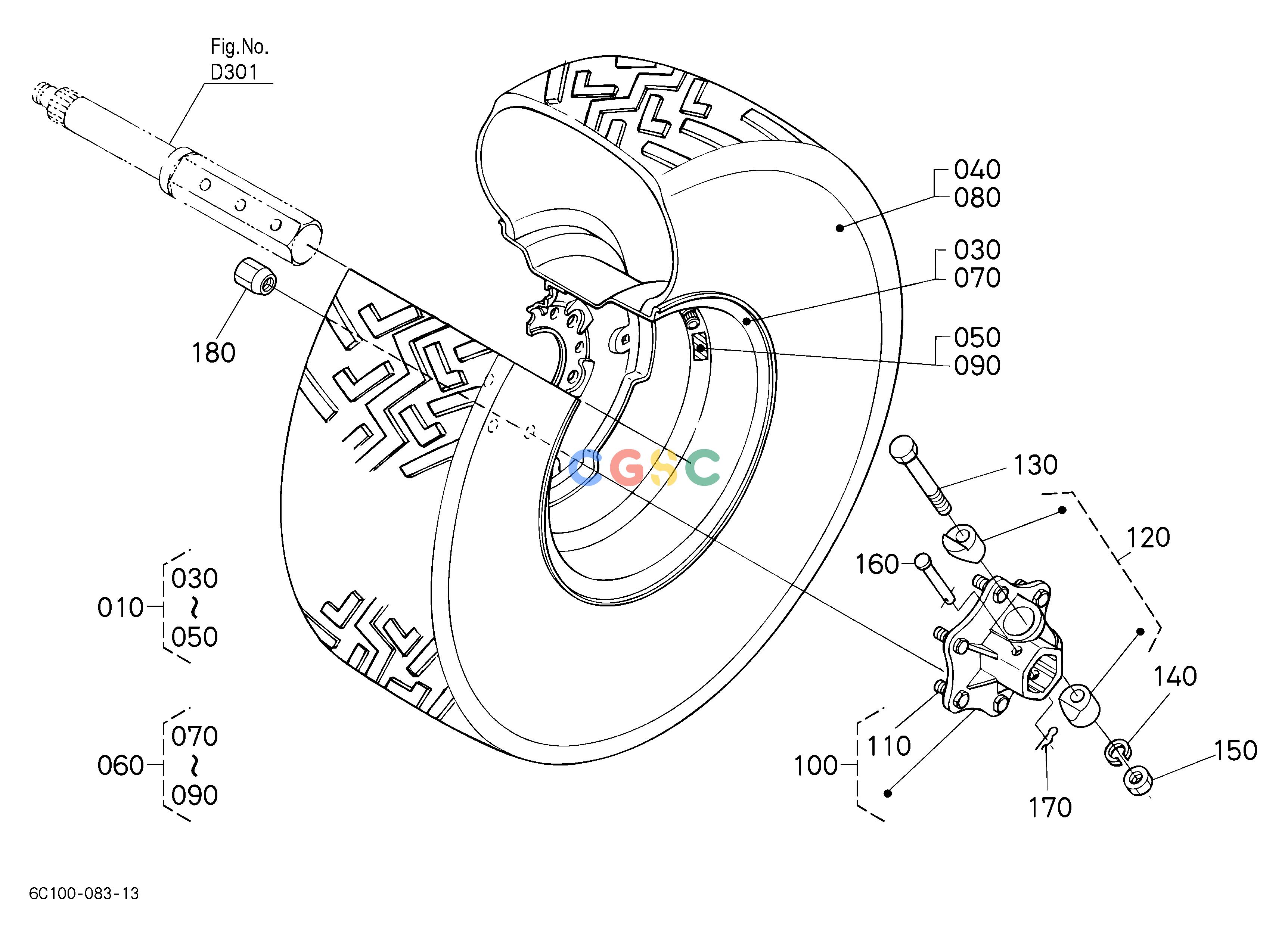

久保田零件查询R11003 REAR WHEEL(31 15.5-15) ## NOTE:ORDER BY REF.No.120 NEW PART and REF.No.130 NEW PART. REAR TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
250 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6643717620
|
[1] |
ASSY TIRE LH
|
0.0000(lbs); 0.000
|
| 030. |
3508011540
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 040. |
6643717630
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 050. |
9999999999
|
[1] |
LABEL TIRE LH
|
0.0000(lbs); 0.000
|
| 060. |
6643717650
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 070. |
3508011540
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 080. |
6643717630
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 090. |
9999999999
|
[1] |
LABEL TIRE RH
|
0.0000(lbs); 0.000
|
| 100. |
6C04017413
|
[2] |
ASSY HUB WHEEL
|
5.7200(lbs); 2.600
|
| 110. |
6670417313
|
[12] |
BOLT
|
0.1078(lbs); 0.049
|
| 120. |
6C04017460
|
[4] |
COTTER
|
0.3740(lbs); 0.170
|
| 120. |
H6C1017400
|
[4] |
COTTER
|
0.3740(lbs); 0.170
|
| 120. |
6C19017450
|
[2] |
KIT COTTER
|
0.9240(lbs); 0.420
|
| 120. |
6C19017452
|
[2] |
KIT COTTER
|
0.9240(lbs); 0.420
|
| 130. |
0117361600
|
[2] |
BOLT
|
0.3630(lbs); 0.165
|
| 130. |
0117351695
|
[2] |
BOLT
|
0.3520(lbs); 0.160
|
| 140. |
0451260160
|
[2] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 150. |
0217450160
|
[2] |
NUT
|
0.0484(lbs); 0.022
|
| 160. |
6373317270
|
[2] |
PIN WHEEL TUBE
|
0.1100(lbs); 0.050
|
| 170. |
6213117290
|
[2] |
PIN
|
0.0088(lbs); 0.004
|
| 180. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
