神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (968-01-3) - NAME PLATE INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
116 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22T00299F1 | [1] | Name Plate Instal (required) | |
| 1. | 2427Z329 | [5] | SHEET | KOBSeat |
| 2. | YN20T01282P1 | [7] | SHEET | KOBSeat |
| 3. | YN20T01814P1 | [5] | SEAT | KOB |
| 4. | 2418T27058 | [2] | PLATE | KOB |
| 8. | YN20T01808P2 | [1] | LABEL | KOB |
| 9. | YN20T01809P1 | [1] | LABEL | KOB |
| 10. | YN20T01810P1 | [1] | LABEL | KOB |
| 12. | YN20T01804P2 | [1] | LABEL | KOB |
| 13. | YN20T01805P1 | [1] | LABEL | KOB |
| 14. | YN20T01806P1 | [1] | LABEL | KOB |
| 16. | YN22T00331P1 | [1] | DATA PLAQUE | KOBName Plate |
| . . | YN22T00299F2 | [1] | Name Plate Instal (select) | |
| 17. | YN22T00328P1 | [2] | DATA PLAQUE | KOBName Plate |
| 19. | YN22T00330P1 | [1] | LABEL | KOBName Plate |
| 20. | YN22T00335P1 | [1] | NAMEPLATE | KOB |
| . . | YN22T00299F3 | [1] | Name Plate Instal select (macihe)) | |
| 21. | YN22T00336P1 | [1] | DATA PLAQUE | KOBName Plate |
| 22. | YN22T00337P1 | [1] | DATA PLAQUE | KOBName Plate |
| . . | YN22T00299F4 | [1] | Name Plate Instal (select) (lubrication) | |
| 5. | YN20T01815P2 | [1] | LABEL | KOB |
| . . | YN22T00299F5 | [1] | Name Plate Instal (select) (spec Std) | |
| 6. | YN20T01827P2 | [1] | LABEL | KOB Superseded by part number: YN20T01827P3 |
| . . | YN22T00299F6 | [1] | Name Plate Instal (select) | |
| 7. | YN20T01828P2 | [1] | LABEL | KOBLabel Superseded by part number: YN20T01828P3 |
| . . | YN22T00299F7 | [1] | Name Plate Instal (select( (exterior) | |
| 23. | YN20T01858P1 | [1] | LABEL | KOB |
| 24. | YN20T01859P1 | [1] | LABEL | KOB |
| 25. | YN20T01860P1 | [1] | LABEL | KOB |
| 26. | YN20T01855P1 | [1] | LABEL | KOB |
| 27. | YN20T01856P1 | [1] | LABEL | KOB |
| 28. | YN20T01857P1 | [1] | LABEL | KOB |
| . . | YN22T00299F8 | [1] | Name Plate Instal (select) (machine) | |
| 18. | YN22T00329P1 | [2] | DATA PLAQUE | KOBName Plate |

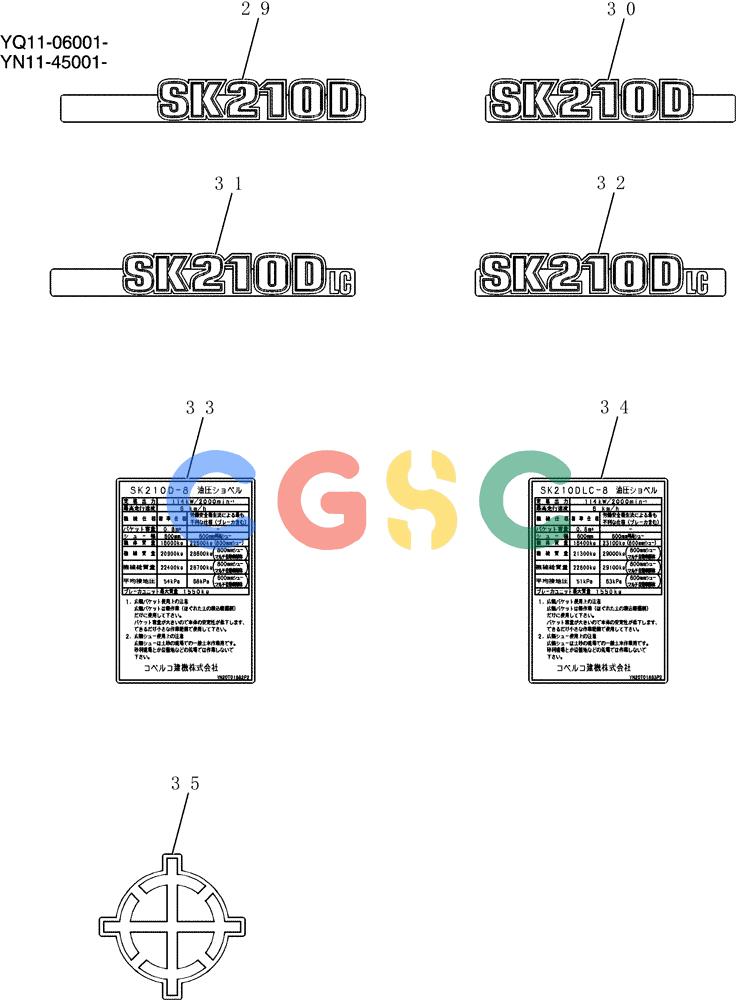

| 29. | YN22T00338P1 | [1] | LABEL | KOBName Plate |
| 30. | YN22T00343P1 | [1] | NAMEPLATE | KOB |
| . . | YN22T00299F9 | [1] | Name Plate Instal (select)(machine) | |
| 31. | YN22T00344P1 | [1] | LABEL | KOBName Plate |
| 32. | YN22T00345P1 | [1] | NAMEPLATE | KOB |
| . . | YN22T00299FA | [1] | Name Plate Instal (select)(spec Hd Std) | |
| 33. | YN20T01882P2 | [1] | LABEL | KOB Superseded by part number: YN20T01882P3 |
| . . | YN22T00299FB | [1] | Name Plate Instal (select)(spec Hd) | |
| 34. | YN20T01883P2 | [1] | LABEL | KOB Superseded by part number: YN20T01883P3 |
| . . | YN22T00299FC | [1] | LABEL | KOBName Plate Instal (barycentric Position) Superseded by part number: YN20T01778P1 |
| 35. | YN20T01778P1 | [2] | LABEL | KOB |
