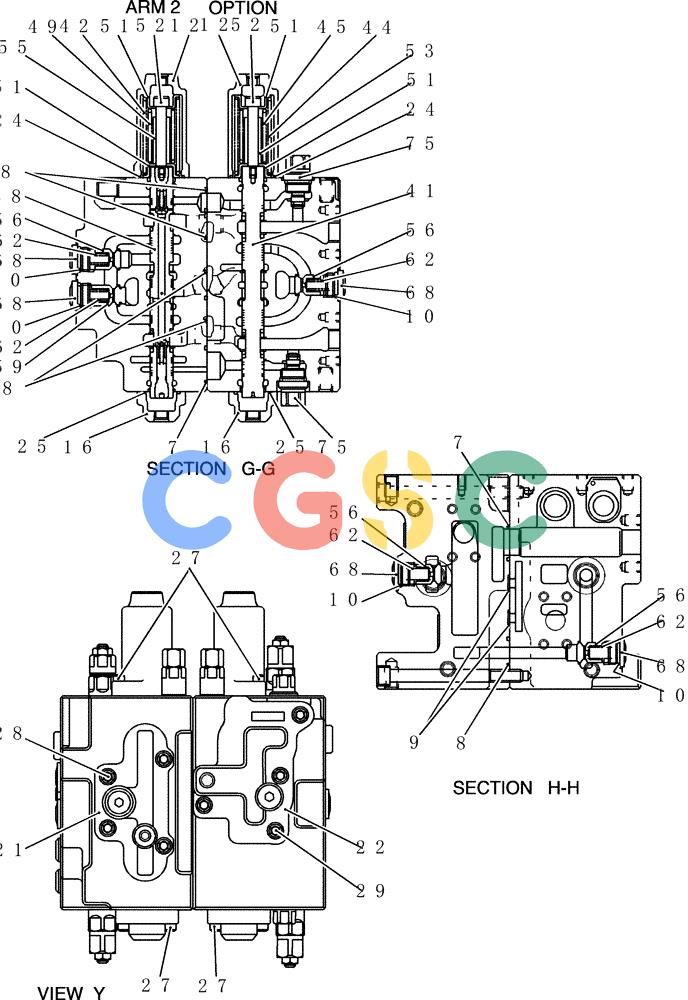

| . . | YN30V00101F1 | [1] | VALVE, CONTROL | KOBAssy, Control Superseded by part number: YN30V00101F6 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBody |
| . . | YN30V00101F2 | [1] | CONTROL VALVE | KOBAssy, Control Superseded by part number: YN30V00101F6 |
| . . | YN30V00101F3 | [1] | CONTROL VALVE | KOBAssy, Control Superseded by part number: YN30V00101F6 |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONBody |
| 3. | YN30V00001S154 | [3] | PLUG | KOB |
| 4. | YW30V00001S155 | [2] | PLUG | KOB |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 6. | NSS | [5] | NOT SOLD SEPARAT | CONPlug |
| 7. | ZD12P03800 | [7] | O-RING | KOB |
| 8. | ZD12G03000 | [15] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB |
| 9. | ZD12P01500 | [11] | O-RING | KOB |
| 10. | ZD12P02400 | [19] | O-RING | KOB |
| 11. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 12. | YN30V00101S201 | [5] | GUARD | SMCover |
| 13. | YN30V00101S202 | [4] | GUARD | SMCover |
| 14. | YN30V00101S203 | [1] | GUARD | SMCover |
| 15. | YN30V00101S204 | [1] | GUARD | SMCover |
| 16. | YN30V00001S205 | [7] | COVER | KOB |
| 17. | YN30V00101S206 | [1] | GUARD | SMCover |
| 18. | YN30V00101S207 | [1] | GUARD | SMCover Superseded by part number: YN30V00101S094 |
| 19. | YN30V00101S209 | [1] | GUARD | SMCover |
| 20. | YN30V00119F1 | [2] | VALVE | KOBAssy, Lock (See HC025) |
| 21. | YN30V00079S212 | [1] | PLATE | KOB |
| 22. | YN30V00116S213 | [1] | PLATE | SM |
| 23. | YN30V00101S216 | [1] | PISTON | SM |
| 24. | ZD12G05000 | [12] | O-RING,49.40mm ID x 55.60mm OD x 3.10mm | KOB |
| 25. | ZD12G04000 | [10] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOB |
| 26. | ZD12P00700 | [4] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro | KOBO-Ring |
| 27. | ZS23C08025 | [40] | SCREW,Hex Socket Head, M8 x 25mm | KOBCap |
| 28. | ZS23C12025 | [4] | CAPSCREW,Hex Socket Head, M12 x 52mm | KOBSCREW Cap |
| 29. | ZS23C12035 | [4] | SCREW,Hex Socket Head, M12 x 35mm | KOBCap |
| 30. | ZS23C08035 | [5] | SCREW,Hex Socket Head, M8 x 35mm | KOBCap |
| 31. | YN30V00101S301 | [1] | SPOOL | SMAssy (For F1, F3 ONLY) Superseded by part number: YN30V00101R220 |
| 32. | YN30V00116S302 | [1] | SPOOL | SM Superseded by part number: YN30V00116R110 |
| 33. | YN30V00101S303 | [1] | SPOOL | SM Superseded by part number: YN30V00101R120 |
| 34. | YN30V00116S304 | [1] | SPOOL | SM Superseded by part number: YN30V00116R130 |
| 35. | YN30V00101S305 | [1] | SPOOL | SM Superseded by part number: YN30V00101R140 |
| 36. | YN30V00101S306 | [2] | REPAIR KIT | KOBSpool Superseded by part number: YN30V00101R150 |
| 37. | YN30V00101S307 | [1] | SPOOL | KOB Superseded by part number: YN30V00101R170 |
| 38. | YN30V00116S308 | [1] | SPOOL | SMAssy Superseded by part number: YN30V00116R170 |
| 39. | YN30V00101S309 | [1] | SPOOL | SM Superseded by part number: YN30V00101R190 |
| 40. | YN30V00101S310 | [1] | SPOOL | SM Superseded by part number: YN30V00101R200 |
| 41. | YN30V00101S311 | [1] | SPOOL | SM Superseded by part number: YN30V00101R210 |
| 42. | YN30V00079S321 | [5] | SPRING | KOB |
| 43. | YN30V00079S322 | [4] | SPRING | KOB |
| 44. | 2436U1165S371 | [3] | SPRING | KOB |
| 45. | 2436U1165S372 | [3] | SPRING | KOB |
| 46. | YN30V00079S323 | [1] | SPRING | KOB |
| 47. | YN30V00101S326 | [1] | SPRING | SM |
| 48. | YN30V00101S327 | [3] | SPRING | SM |
| 49. | YN30V00101S328 | [1] | SPRING | SM |
| 50. | YN30V00101S329 | [3] | SPRING | SM |
| 51. | 2436U1443S332 | [24] | SPRING SEAT | KOB |
| 52. | 2436U1165S336 | [12] | BOLT | KOBSpacer |
| 53. | 2436U1165S335 | [10] | STOP | KOB |
| 54. | YN30V00001S339 | [1] | STOP | KOB |
| 55. | YN30V00101S340 | [1] | CLIP | SMStopper |
| 56. | YN30V00101S341 | [11] | HYDRAULIC VALVE | SMPoppet |
| 57. | YW30V00001S513 | [2] | POPPET | KOB |
| 58. | YN30V00101S514 | [2] | HYDRAULIC VALVE | SMPoppet |
| 59. | 2436U1231S513 | [1] | POPPET | KOB |
| 60. | YN30V00101S517 | [1] | HYDRAULIC VALVE | SMPoppet |
| 61. | YN30V00101S518 | [1] | HYDRAULIC VALVE | SMPoppet |
| 62. | 2436U1165S521 | [11] | SPRING | KOB |
| 63. | YN30V00101S522 | [2] | SPRING | SM |
| 64. | YN30V00089S523 | [1] | SPRING | KOB |
| 65. | YN30V00001S524 | [2] | SPRING | KOB |
| 66. | YN30V00101S527 | [1] | SPRING | SM |
| 67. | YN30V00101S528 | [1] | SPRING | SM |
| 68. | YN30V00001S551 | [13] | PLUG | KOB |
| 69. | YW30V00001S556 | [2] | PLUG | KOB |
| 70. | YN30V00001S556 | [3] | PLUG | KOB |
| 71. | ZD12P02000 | [2] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 72. | YN22V00001F8 | [1] | HYDRAULIC VALVE | SMAssy, Main Relief (See HC010) |
| 73. | YN22V00002F1 | [2] | VALVE | KOBAssy, Port Relief (See HC015) |
| 74. | YN22V00002F9 | [3] | VALVE | KOBAssy, Port Relief (See HC015) |
| 75. | YN30V01062P1 | [2] | PLUG | SMAssy |
| 76. | YN22V00029F1 | [1] | VALVE | KOBAssy, Port Relief (See HC020) |
| 77. | YN30V00120F1 | [2] | VALVE | KOBAssy, Bypass (For F1 ONLY) Superseded by part number: YN30V00120F2 |
| 78. | ZS23C14160 | [8] | SCREW,Hex Socket Head, M14 x 160mm | KOBCap |
| 79. | ZS23C14140 | [2] | SCREW,Hex Socket Head, M14 x 140mm | KOBCap |
| 80. | NSS | [1] | NOT SOLD SEPARAT | CONName Plate |
| 81. | NSS | [2] | NOT SOLD SEPARAT | CONPin |
| 82. | YN30V00120F2 | [2] | VALVE | KOBAssy, Bypass (For F2, F3 ONLY) |
| 83. | YN30V00101S010 | [1] | SPOOL | KOBAssy (For F2 ONLY) Superseded by part number: YN30V00101R220 |
| . . | YN30V00101R100 | [1] | REPAIR KIT | KOBConsists Of Ref. 31x1, 42x1, 43x1 (For F1, F3 ONLY) Superseded by part number: YN30V00101R220 |
| . . | YN30V00116R110 | [1] | REPAIR KIT | SMConsists Of Ref. 32x1, 42x1, 43x1 |
| . . | YN30V00101R120 | [1] | REPAIR KIT | KOBConsists Of Ref. 33x1, 42x1, 43x1 |
| . . | YN30V00116R130 | [1] | REPAIR KIT | SMConsists Of Ref. 34x1, 42x1, 43x1 |
| . . | YN30V00101R140 | [1] | REPAIR KIT | KOBConsists Of Ref. 35x1, 46x1, 47x1 |
| . . | YN30V00101R150 | [1] | REPAIR KIT | KOBConsists Of Ref. 36x1, 44x1, 45x1 |
| . . | YN30V00101R170 | [1] | REPAIR KIT | KOBConsists Of Ref. 37x1, 48x1, 50x1 |
| . . | YN30V00116R170 | [1] | REPAIR KIT | SMConsists Of Ref. 38x1, 42x1, 49x1 |
| . . | YN30V00101R190 | [1] | REPAIR KIT | KOBConsists Of Ref. 39x1, 48x1, 50x1 |
| . . | YN30V00101R200 | [1] | REPAIR KIT | KOBConsists Of Ref. 40x1, 48x1, 50x1 |
| . . | YN30V00101R210 | [1] | REPAIR KIT | KOBConsists Of Ref. 41x1, 44x1, 45x1 (For F1, F2 ONLY) |
| . . | YN30V00101R220 | [1] | SPOOL | KOBRepair Kit Consists Of Ref. 42x1, 43x1, 51x2 (For F2 ONLY) |
