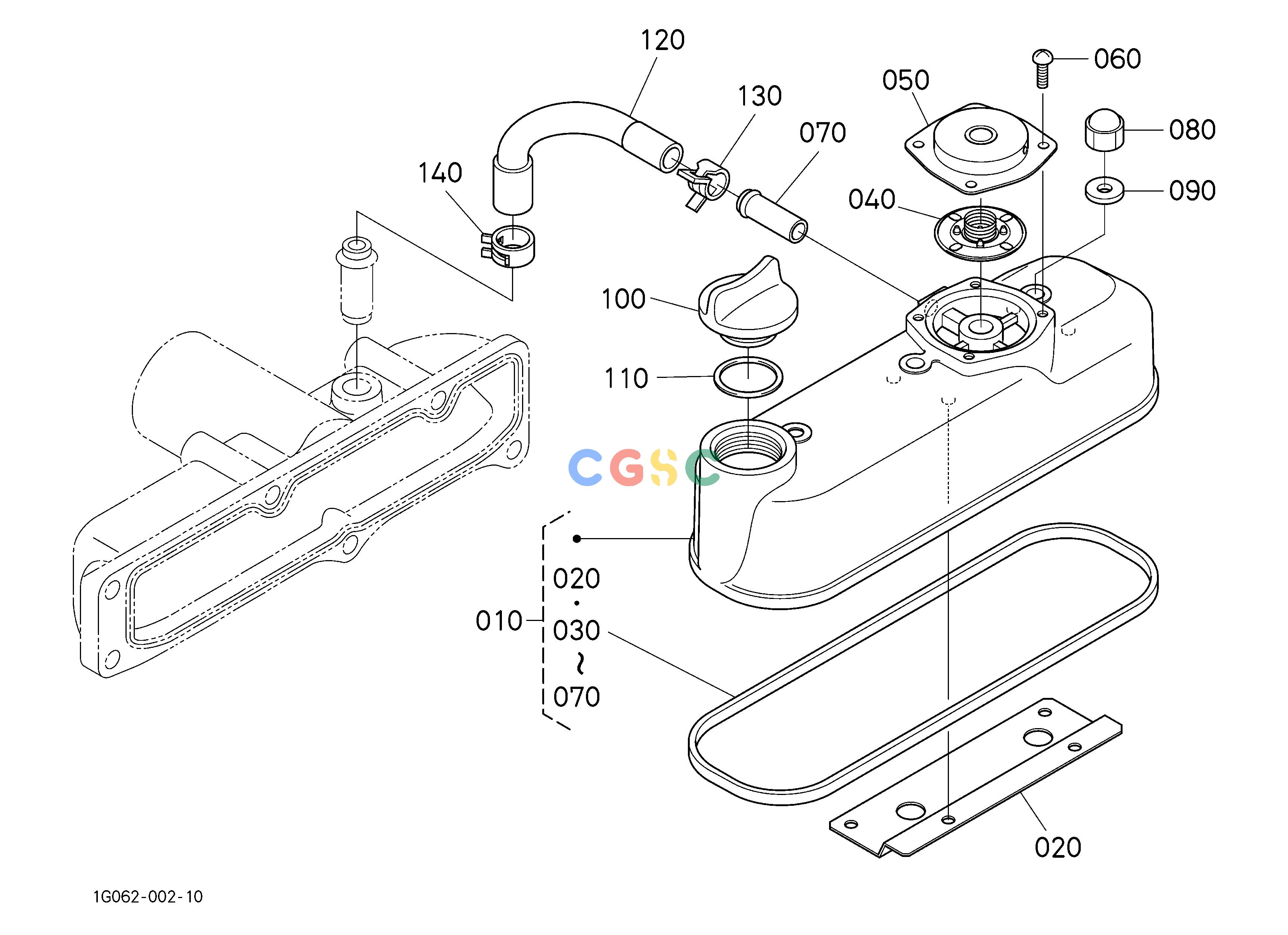

久保田零件查询100502 HEAD COVER ## S.No.>=5A0001 ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
456 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G03214503
|
[1] |
ASSY COVER CYL.HEAD
|
1.7380(lbs); 0.790
|
| 020. |
1G03205370
|
[1] |
SHIELD BREATHER
|
0.0660(lbs); 0.030
|
| 030. |
1626114520
|
[1] |
GASKET HEAD COVER
|
0.0220(lbs); 0.010
|
| 040. |
1G91105202
|
[1] |
COMP.VALVE BREATHER
|
0.0220(lbs); 0.010
|
| 050. |
1G91105120
|
[1] |
COVER BREATHER
|
0.0990(lbs); 0.045
|
| 060. |
0305450510
|
[4] |
SCREW PAN-HEAD
|
0.0066(lbs); 0.003
|
| 070. |
1733173342
|
[1] |
PIPE WATER RETURN
|
0.0220(lbs); 0.010
|
| 080. |
1595292330
|
[3] |
NUT
|
0.0220(lbs); 0.010
|
| 090. |
1595196660
|
[3] |
GASKET
|
0.0022(lbs); 0.001
|
| 100. |
E915133140
|
[1] |
PLUG OIL FILLER
|
0.0374(lbs); 0.017
|
| 110. |
0481450300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
1G03205510
|
[1] |
TUBE BREATHER
|
0.0374(lbs); 0.017
|
| 130. |
0931888150
|
[1] |
CLAMP HOSE
|
0.0088(lbs); 0.004
|
| 140. |
1625905580
|
[1] |
CLAMP HOSE
|
0.0660(lbs); 0.030
|
