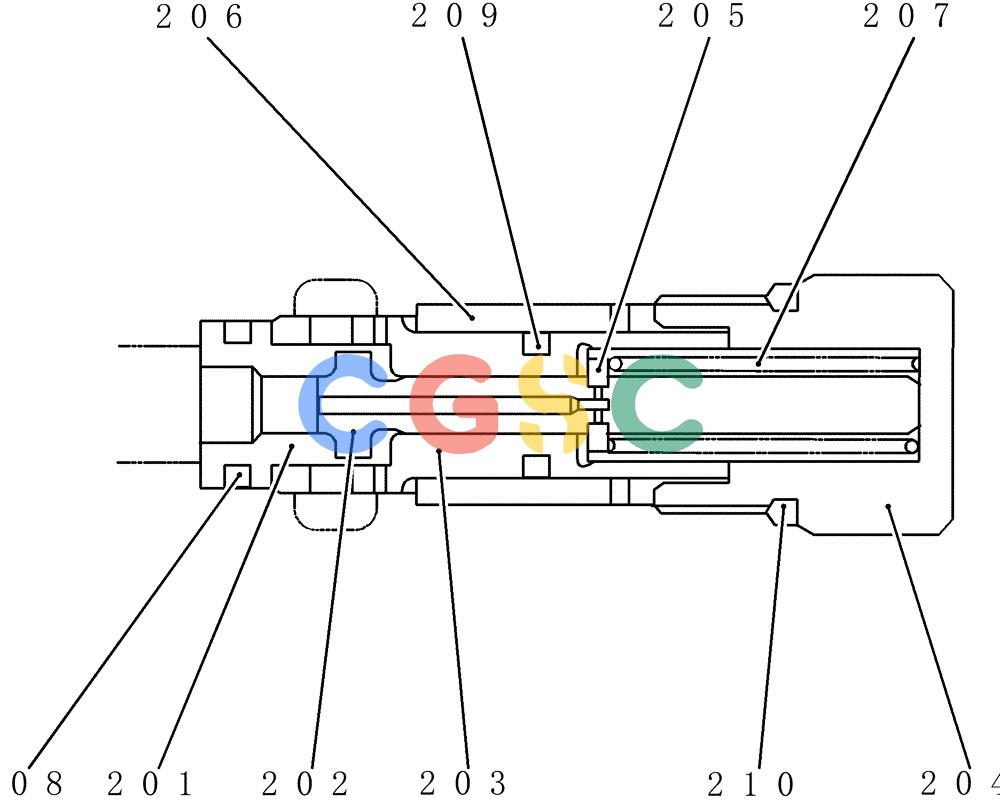

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC385-01-1) - VALVE ASSY, RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
304 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22V00036F1 | [1] | VALVE | KOBAssy, Relief |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONSeat, Valve |
| 202. | NSS | [1] | NOT SOLD SEPARAT | CONValve |
| 203. | NSS | [1] | NOT SOLD SEPARAT | CONSleeve |
| 204. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 205. | NSS | [1] | NOT SOLD SEPARAT | CONSeat.Spring |
| 206. | NSS | [1] | NOT SOLD SEPARAT | CONPiston |
| 207. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 208. | NSS | [1] | NOT SOLD SEPARAT | CONSeal, Piston |
| 209. | NSS | [1] | NOT SOLD SEPARAT | CONSeal, Piston |
| 210. | 2436U562S8 | [1] | O-RING | HIT |
