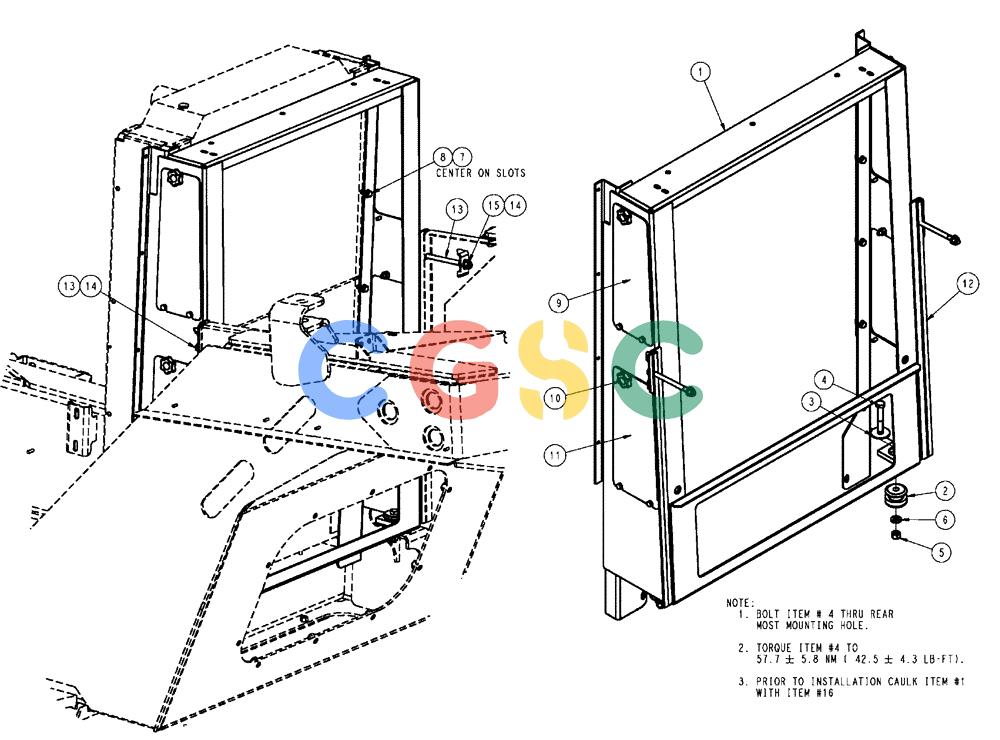

凯斯零件查询(FLX3010) - FLOATER (8/04-8/06) (02-020) - RADIATOR MOUNTING GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
477 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87268755
|
[1] |
MOUNTING PLATE
|
BN
Front Radiator
|
| 2. |
700707039
|
[2] |
RUBBER MOUNTING
|
CAS
Isolator
|
| 3. |
495-71053
|
[2] |
WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk
|
CAS
|
| 4. |
814-12070
|
[2] |
BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8
|
IH
Superseded by part number: 9706717
|
| 5. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 6. |
86625255
|
[2] |
WASHER,13.3mm ID x 24.5mm OD x 3mm Thk
|
GI
|
| 7. |
87015284
|
[14] |
WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk
|
WIC
|
| 8. |
120104
|
[10] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 9. |
343857A1
|
[2] |
COVER
|
BN
Radiator Access
|
| 10. |
86980380
|
[4] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
|
BN
|
| 11. |
343858A1
|
[2] |
COVER
|
BN
Radiator Access
|
| 12. |
BN326049
|
[2] |
FOAM
|
BN
EPDM, 3/16" x 1/2" x 50"
|
| 13. |
331168
|
[2] |
BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8
|
NH
|
| 14. |
86639325
|
[4] |
WASHER,10.8mm ID x 24.5mm OD x 3mm Thk
|
FAR
|
| 15. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 16. |
BN324647
|
[1] |
0.5
|
|
