神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC910-01-1) - VALVE ASSY, RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
900 次

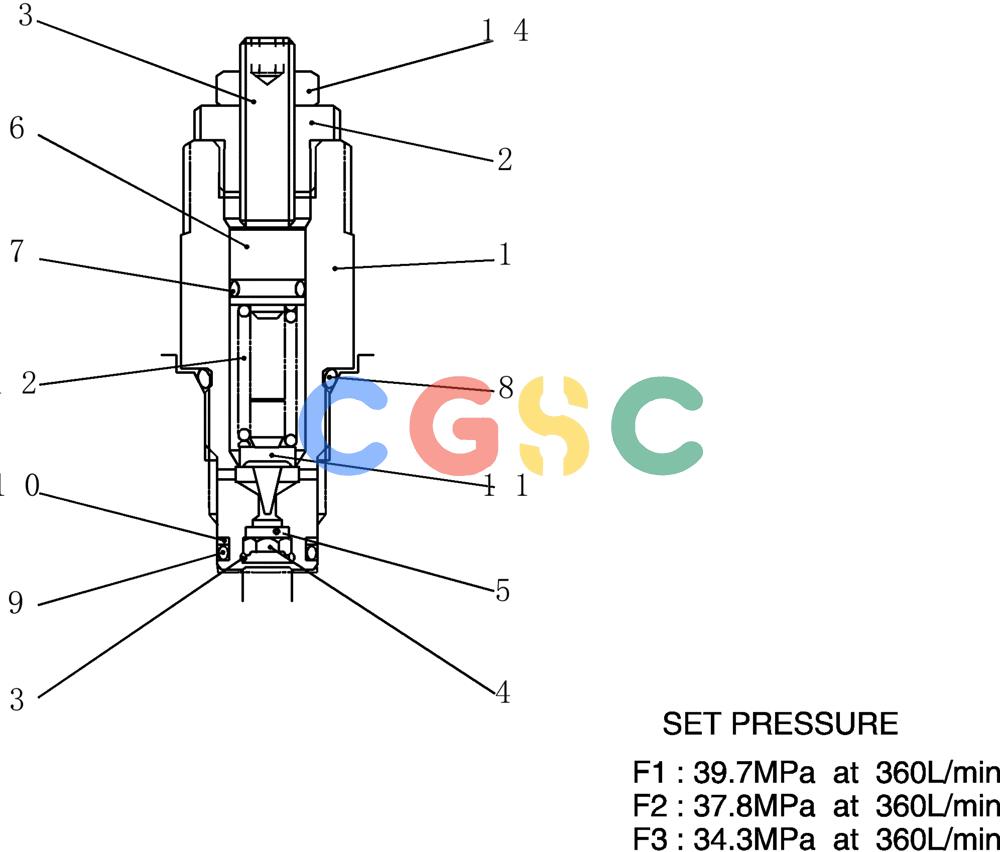

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22V00037F1 | [1] | HYDRAULIC VALVE | SMAssy, Relief |
| . . | YN22V00037F2 | [1] | VALVE | KOBAssy, Relief |
| . . | YN22V00037F3 | [1] | VALVE | KOBAssy, Relief |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONRing |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONStopper |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONFilter |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONSeat |
| 7. | ZD12P00800 | [1] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 8. | ZD12P01600 | [1] | O-RING | KOB |
| 9. | YN22V00037S561 | [1] | O-RING | SM |
| 10. | YN22V00037S562 | [1] | RING | SMBack Up (For F1, F3 0Nly) |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONPoppet |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONScrew |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONLock Nut |
