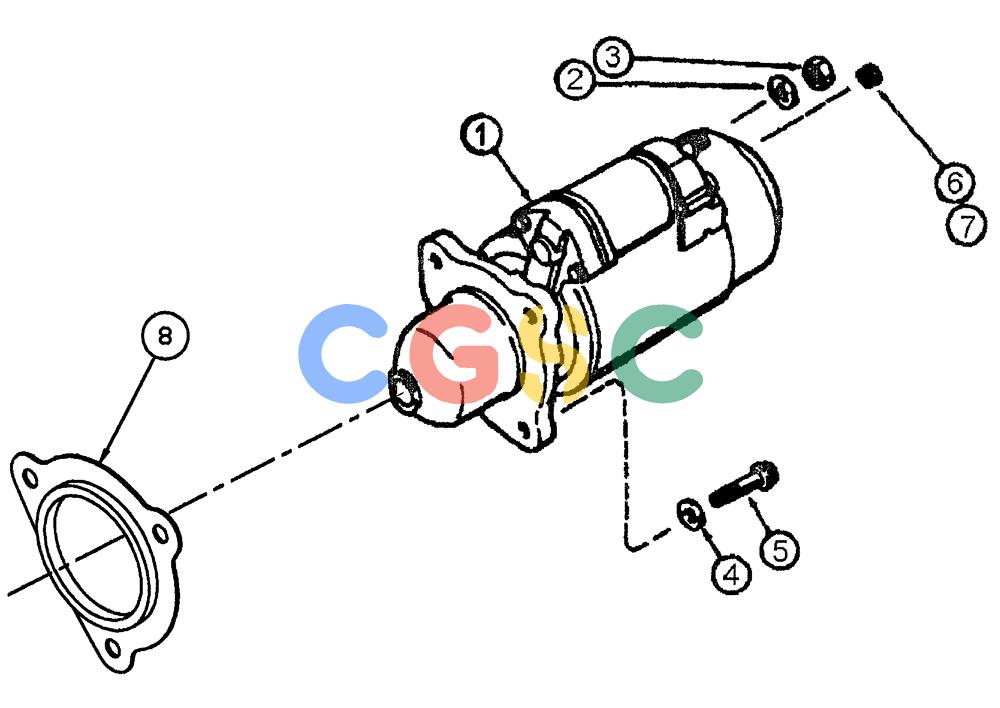

凯斯零件查询(FLX3010) - FLOATER (8/04-8/06) (02-028) - STARTER GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
674 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
193432A2
|
[1] |
MOTOR,12V, 4.8kW
|
CAS
starter, 12V
|
| 1. |
193432A2GV
|
[1] |
STARTER MOTOR,12V, 4.8kW
|
RAC
Value, 12 Volt Superseded by part number: 193432A2
|
| 2. |
412123
|
[1] |
LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk
|
NH
|
| 3. |
87344035
|
[1] |
NUT
|
BN
thin M12 class 05
|
| 4. |
86981496
|
[3] |
WASHER,13.3mm ID x 24.5mm OD x 3mm Thk
|
GI
|
| 5. |
87343643
|
[3] |
12 PT SCREW,Flg, M12 x 1.75 x 40mm, Cl 12.9
|
BN
FLANGED 12-PT M12 X 40 12.9
|
| 6. |
258820A1
|
[1] |
SCREW
|
CAS
M5 x 8
|
| 7. |
86509828
|
[1] |
LOCK WASHER,M5
|
NH
Superseded by part number: 10569179
|
| 8. |
87661430
|
[1] |
SPACER
|
GI
Starter, CDC
|
