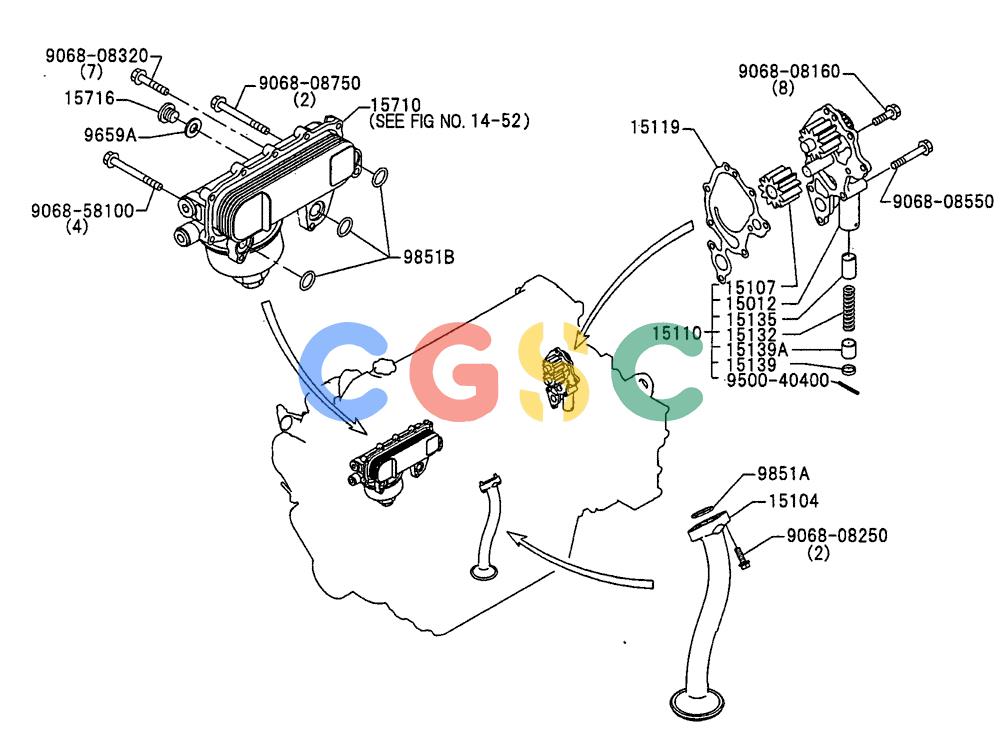

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (ENG-07-1) - LUBRICATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
766 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 15012. | VH150121460A | [1] | COVER ASSY | KOBOil Pump Superseded by part number: VHS150121460 |
| 15104. | VH151041950A | [1] | FILTER STRAINER | KOBStrainer. Sub Assy, Oil Superseded by part number: VH15104E0050 |
| 15107. | VH151071550A | [1] | GEAR | KOBSub Assy, Oil Pump Superseded by part number: VHS151071550 |
| 15110. | VH151102160A | [1] | PUMP | KOBAssy, Oil L/Stnr Superseded by part number: VHS151102160 |
| 15119. | VH151191134A | [1] | GASKET | KOBOil Pump Cover Superseded by part number: VHS151191134 |
| 15132. | VH151321070A | [1] | SPRING | KOBOil Pump Relief Valve Superseded by part number: VHS151321070 |
| 15135. | VH151351090A | [1] | VALVE | KOBOil Pump Safety Superseded by part number: VHS151351090 |
| 15139. | VH151391110A | [1] | SEAT | KOBSpring Oil Pump Superseded by part number: VHS151391110 |
| 15139A. | VH151391120A | [1] | SEAT | KOBSpring Oil Pump Superseded by part number: VHS151391120 |
| 15710. | VH15710E0030 | [1] | COOLER ASSY. | KOBOil (See Fig No. 14-52) Superseded by part number: VH15710E0032 |
| 15716. | VH157161130A | [1] | PLUG | KOBValve Spring Superseded by part number: VHS157161130 |
| 9068-08160. | VH906808160A | [8] | FLANGE BOLT | KOBFlange Superseded by part number: VHSH55210816 |
| 9068-08250. | VH906808250A | [2] | FLANGE BOLT | KOBFlange Superseded by part number: VHSH55210825 |
| 9068-08320. | VH906808320A | [7] | FLANGE BOLT | KOBFlange Superseded by part number: VHSH55210832 |
| 9068-08550. | VH906808550A | [1] | FLANGE BOLT | KOBFlange Superseded by part number: VHSH55210855 |
| 9068-08750. | VH906808750A | [2] | FLANGE BOLT | KOBFlange Superseded by part number: VHSH55210875 |
| 9068-58100. | VH906858100A | [4] | FLANGE BOLT | KOBFlange Superseded by part number: VHSH55215810 |
| 9500-40400. | VH950040400A | [1] | PIN | KOBCotter Superseded by part number: VHSM38104040 |
| 9659A. | VH965914103A | [1] | WASHER | KOBSoft Superseded by part number: VHSZ43014002 |
| 9851A. | VH985129105A | [1] | O-RING | KOB Superseded by part number: VHSZ30129004 |
| 9851B. | VH985125106A | [3] | O-RING | KOB Superseded by part number: VHSZ30125018 |
